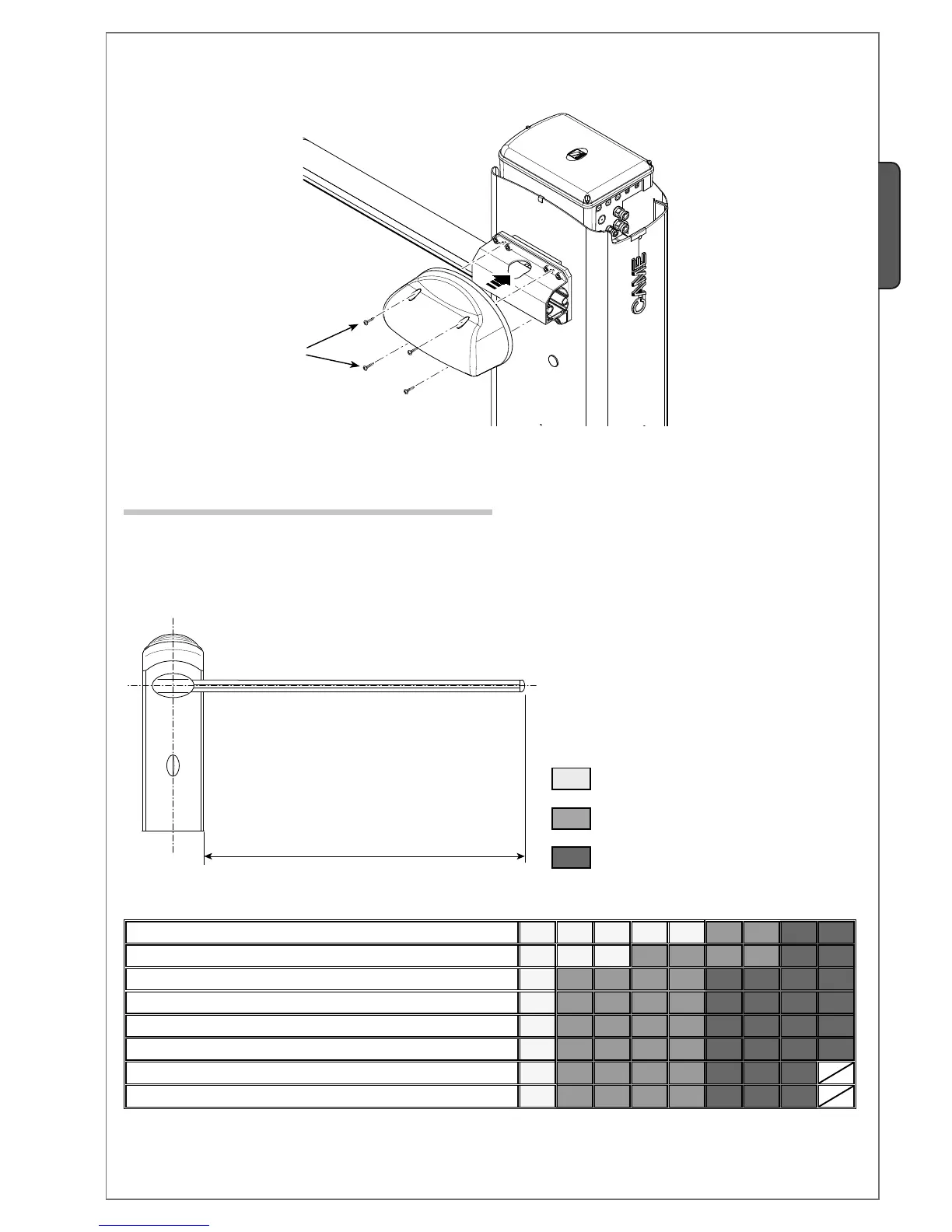

- Prior to bar balancing, select a suitable spring depending on the situation at hand. See table below:
Bare bar* + shock-resistant profile
Bare bar* + shock-resistant profile and luminous cord
Bare bar* + rack
Bare bar* + luminous cord and rack
Bare bar* + shock-resistant profile and mobile barrier support
Bare bar* + shock-resistant profile, luminous cord and mobile barrier support
Bare bar* + rack and mobile barrier support
Bare bar* + luminous cord, rack and mobile barrier support
- Tighten the anti-shearing protection cover to the bar fitting with screws.
5.7 Bar balancing
* By Bare bar we mean a bar complete with the transparent slot cover and end plug.
PASSAGE CLEARANCE LAMP (max. 3.75 m)
SPRING TYPES
spring G02040 Øe = 40 mm
spring G04060 Øe = 50 mm
spring G06080 Øe = 55 mm
Passage clearance lamp (m) 1.5
1.75
2.0
2.25
2.5
2.75
3.0
3.25
3.5 3.75
