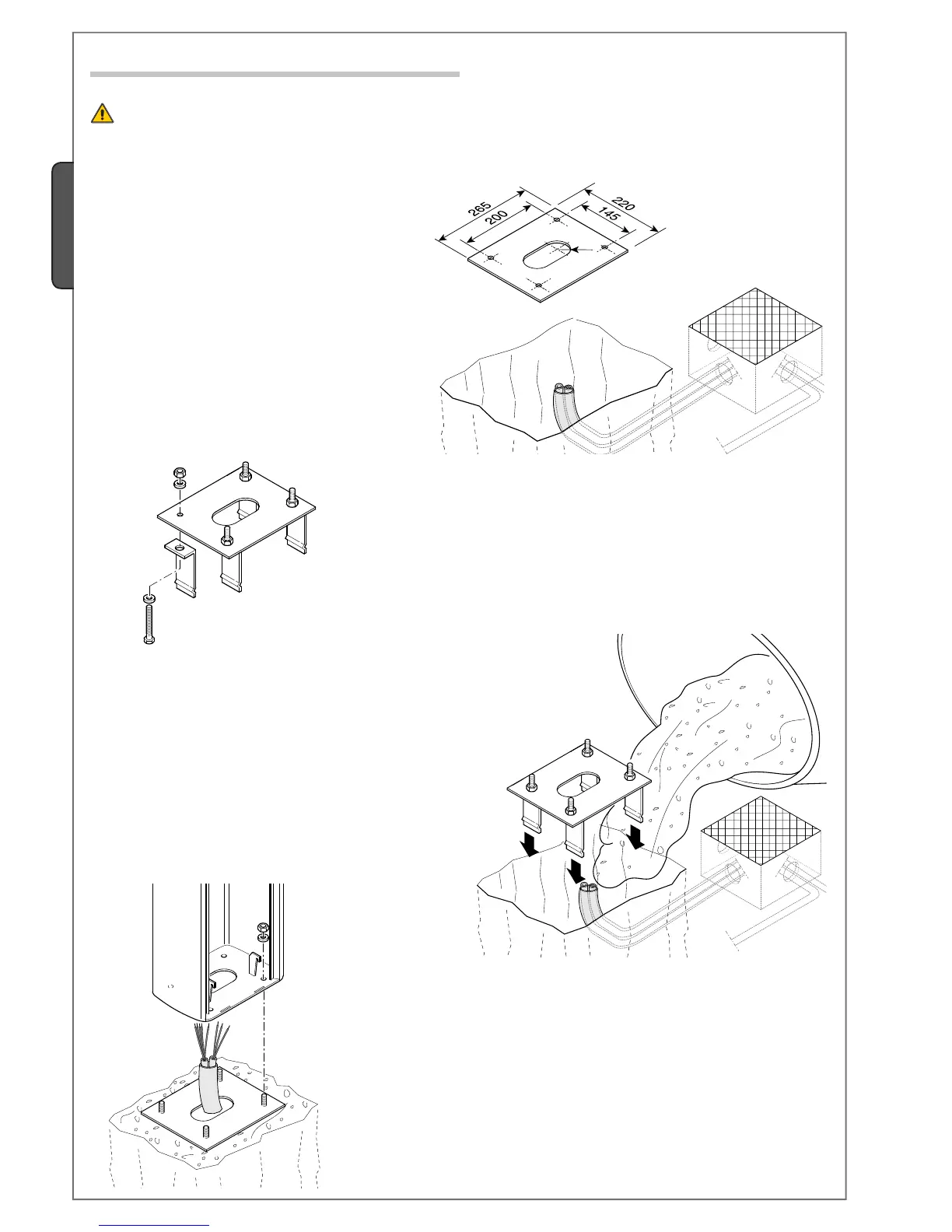

5.5 Fitting for unit base
The following applications are only examples, as the space required for unit installation and the accessories vary depending on dimensions and therefore it
is up to the installer to select the best solution.
- Assemble the four anchoring clamps at the base.
- Prepare a hole to house the fixing base and prepare sheath tubes from
the branch pit for the connections.
N.B. the number of tubes depends on the type of system and the
accessories you will hook up.
- Remove the nuts and washers from the threaded screws, position the cabinet on the base in
correspondence with the 4 threaded screws and secure with the nuts and washers.
Note: We recommend installing the cabinet with the inspection hatch facing the internal area.
- Fill the hole with concrete and immerge the clamps and the fixing base, paying
particular attention to the sheath tube which must go through the hole at the
base. The base must be perfectly level, clean and with the screw threads fully on
the surface.
