ENGLISH

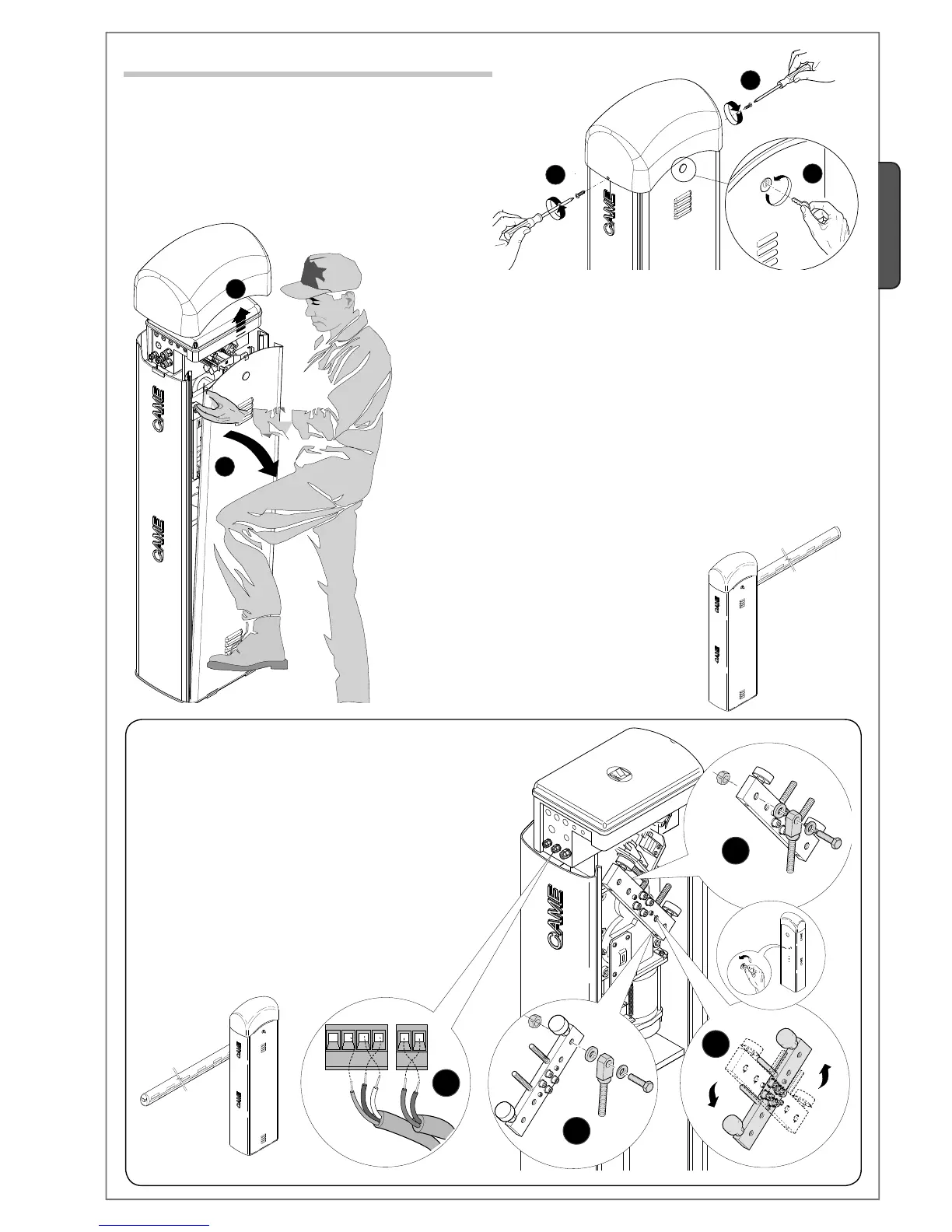

5.6 Installation of the Unit
- Remove the two screws from the top crown, insert the key into the slot and turn
it counter-clockwise.
- Should installation on the right be required, the direction of the bar’s
opening must be inverted. Proceed in the following manner:
- remove the anchor bolt for springs from the transmission arm (1);
- release the gearmotor with the key;
- turn the transmission arm around (2);
- secure the gearmotor again;
- secure the anchor bolt to the transmission arm’s opposite hole (3);
- invert the end stop wires on terminals M and N,FA and FC (4).
- Lift the top crown and remove the cabinet door.
- The barrier is designed to be installed on
the left of the gateway as seen from inside.
