Page 12 - Manual FA01625-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

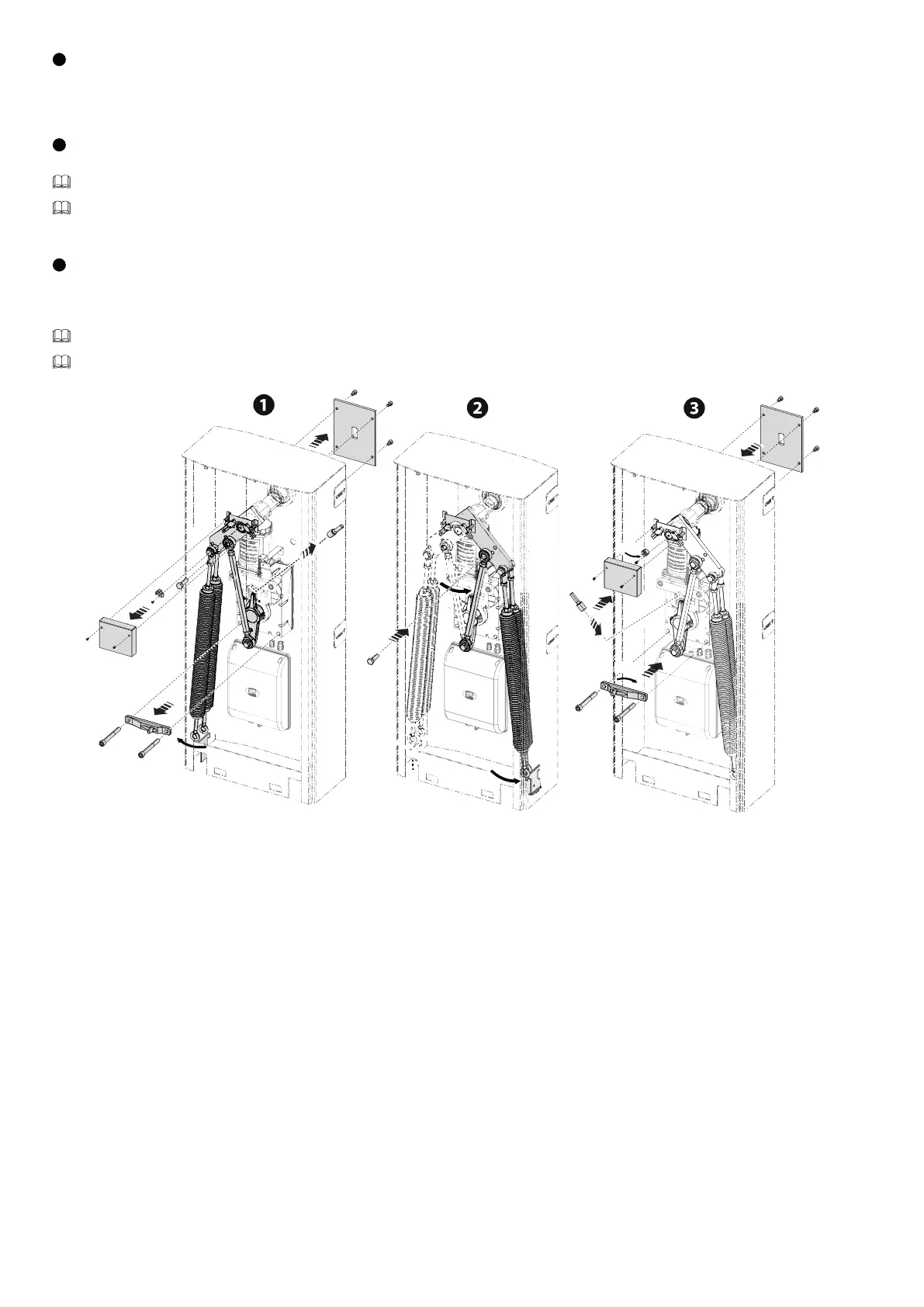

1
Remove the cover on the micro limit switches and remove the microswitch activation block.
Unscrew the boom anchoring plate.
Unscrew the upper mechanical stop and hex screw. Remove the lower mechanical stop, unscrewing the relevant screws.
Loosen both balance springs and unhook them from the anchoring bracket.
Release the transmission lever from the lever arm, unscrewing the screw.
2
Turn the gearmotor arm 90°.
Turn the transmission lever 90° and fix it in place again using the screw.
Turn it anticlockwise to change the opening from left to right.
Turn it clockwise to change the opening from right to left.
Reattach the mechanical springs to the bracket.
Lock the gearmotor.
3
Fit the upper mechanical stop and hex screw on the opposite side.
Turn the lower mechanical stop 180° and screw it back in place.
Turn the microswitch activation block 90° and screw it back in place.
Fit the micro limit switch cover and the boom anchoring plate again.
Invert the cables connecting the limit microswitches (FC - FA) and the motor phases (M - N) on the electrical panel.
With the barrier installed, rebalance the boom and redetermine the mechanical limit switches.
90°
90°
180°
