CAME GARD series Standard Installation

4

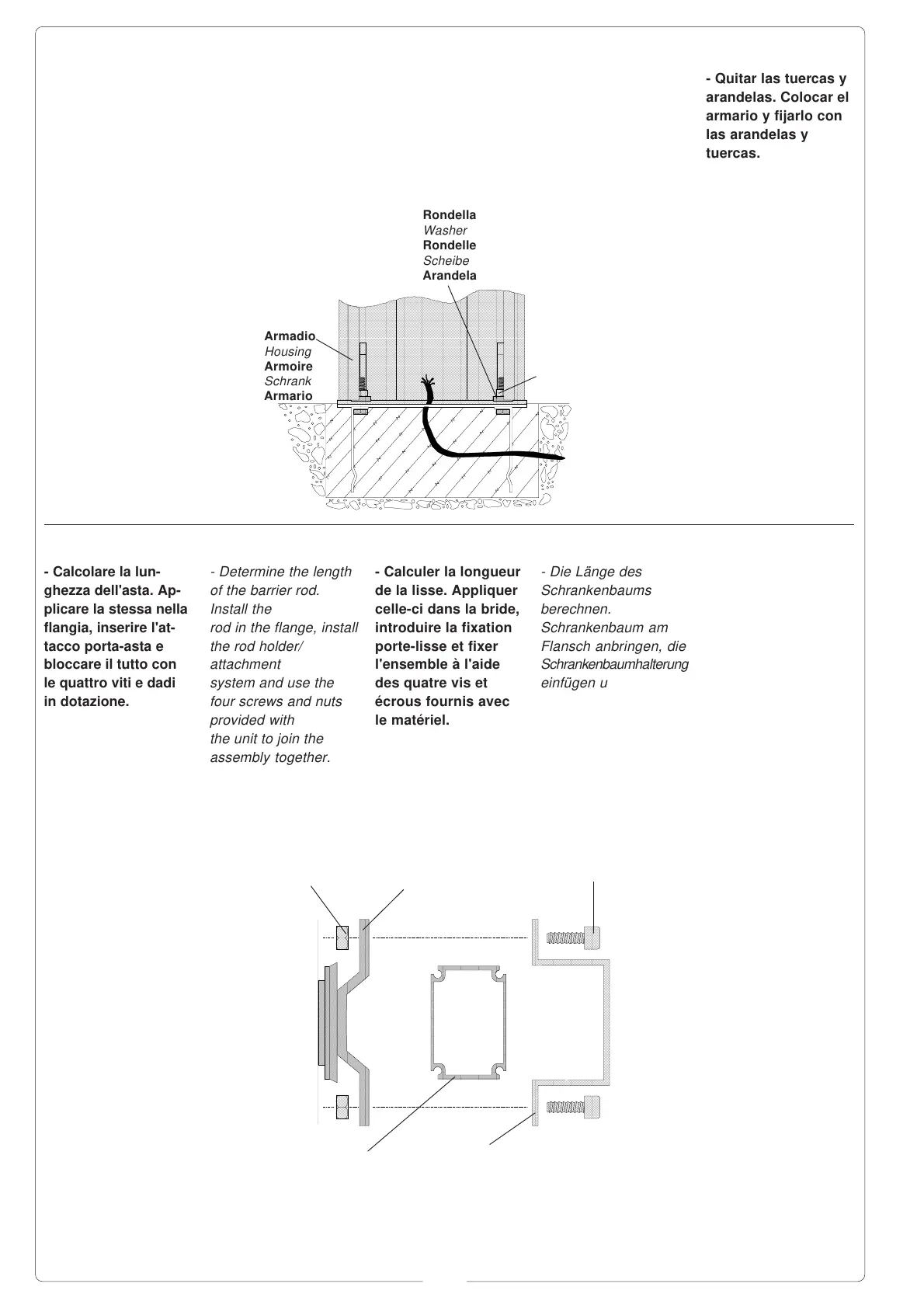

- Togliere i dadi e le
rondelle. Posizionare
l'armadio e fissarlo
con le rondelle e i
dadi.
- Remove the nuts and
the washers. Place the
housing over
the mounting base
and use the nuts and
washers to fasten
the housing to the
base.
- Enlever les écrous
et les rondelles et,
après avoir
positionné
l'armoire, les
réutiliser pour fixer
celle-ci.
- Muttern und
Scheiben entfernen.
Das
Schrankengehäuse
aufstellen und mit den
Scheiben und Muttern
befestigen.
Dado
Nut
Ecrou
Mutter
Tuerca













































































Armadio
Housing
Armoire
Schrank
Armario
Rondella
Washer
Rondelle
Scheibe
Arandela
- Quitar las tuercas y
arandelas. Colocar el
armario y fijarlo con
las arandelas y
tuercas.
- Calcolare la lun-
ghezza dell'asta. Ap-
plicare la stessa nella
flangia, inserire l'at-
tacco porta-asta e
bloccare il tutto con
le quattro viti e dadi
in dotazione.
- Determine the length
of the barrier rod.
Install the
rod in the flange, install
the rod holder/
attachment
system and use the
four screws and nuts
provided with
the unit to join the
assembly together.
- Calculer la longueur
de la lisse. Appliquer
celle-ci dans la bride,
introduire la fixation
porte-lisse et fixer
l'ensemble à l'aide
des quatre vis et
écrous fournis avec
le matériel.
- Die Länge des
Schrankenbaums
berechnen.
Schrankenbaum am
Flansch anbringen, die
Schrankenbaumhalterung
einfügen und alles mit
den zum Lieferumfang
gehörenden vier
Schrauben und
Muttern festmachen.























































































































Dado
Nut
Ecrou
Mutter
Tuerca
Flangia
Flange
Bride
Flansch
Brida
Vite
Screw
Vis
Schraube
Tornillo
Attacco porta-asta
Rod holder/attachment system
Fixation porte-lisse
Schrankenbaum-Halterung
Unión porta barra
Asta
Barrier rod
Lisse
Schrankenbaum
Barra
- Calcular la longitud
de la barra. Aplicar la
misma a la brida,
introducir la unión
porta barra y
bloquearlo todo con
los cuatro tornillos y
tuercas
suministrados.

CAME GARD series Specifications

General

Protection Rating	IP54
Input Voltage	230 V AC
Power Supply	230V AC
Motor Power	300W
Output Voltage	24V DC
Maximum Current	5A
Operating Temperature	-20°C to +55°C
