3 - INSTALLING THE BARRIER

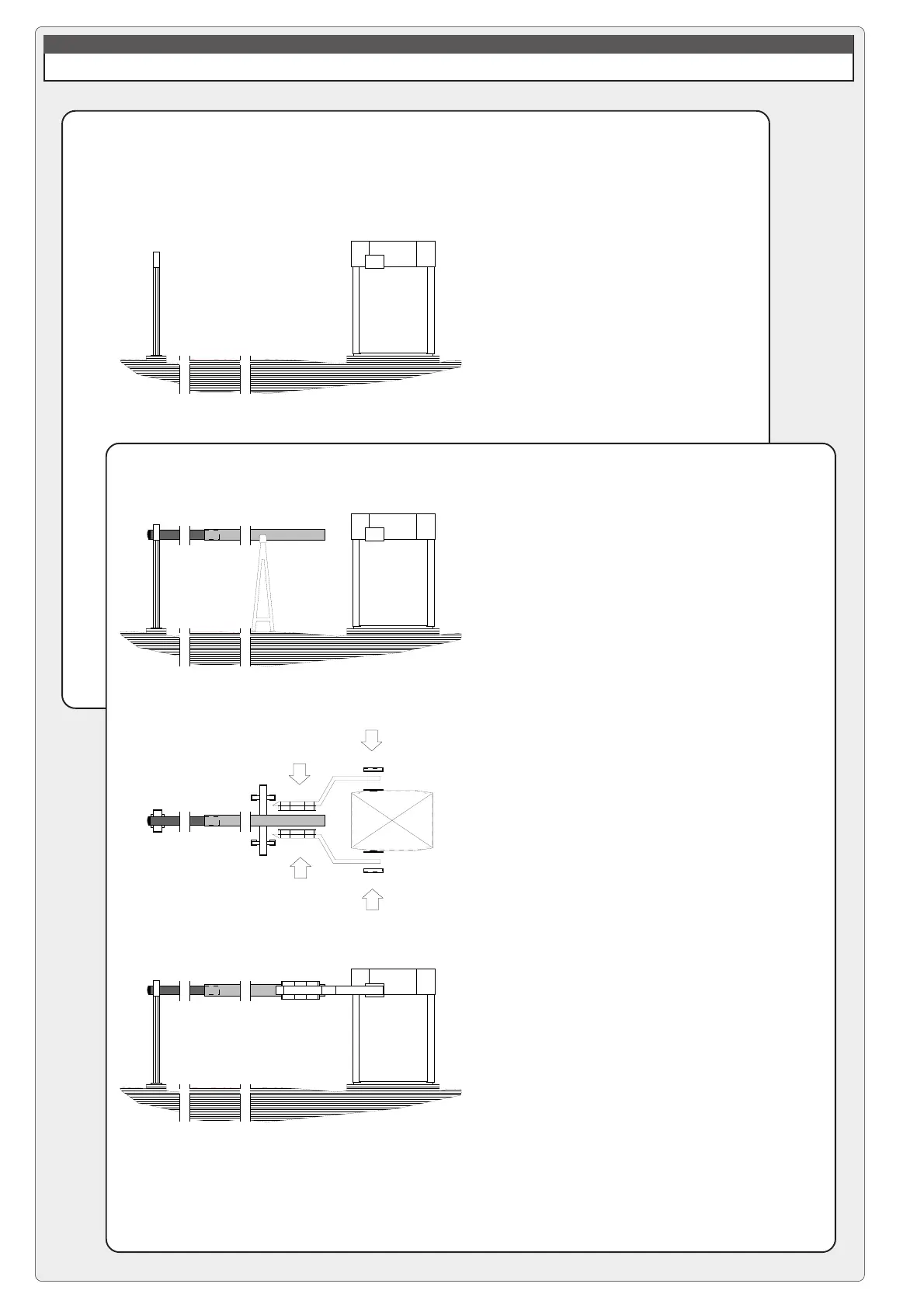

DESCRIPTION OF ASSEMBLY PROCEDURE
a) remove the cover of the housing (by lifting) and remove the sides
of the housing (by raising and withdrawing them from below); clean
the cement bases and free the bolts on the anchor stays by
removing the protection tape and nuts;
b) position and mount the
housing on the mounting
base;
c) position and mount the
fixed support for the barrier
bar, and make sure it is in
perfect longitudinal alignment
with the housing;
g) check for misalignment and adjust if necessary; then, firmly tighten
the bar onto the fork and firmly tighten the fork onto the housing.
d) with the aid of a stand and the fixed
support, place the barrier bar at the
approximate height and axis of
operation;
e) install the fork and unite the two
mounting jaws on the barrier bar, but
do not tighten the bolts;
f) next, mount the barrier bar on the
terminal plates of the rotation shaft,
but do not tighten the bolts;
e
f
f
e

CAME GARD series Specifications

General

Protection Rating	IP54
Input Voltage	230 V AC
Power Supply	230V AC
Motor Power	300W
Output Voltage	24V DC
Maximum Current	5A
Operating Temperature	-20°C to +55°C
