DESCRIPTION OF ASSEMBLY PROCEDURE

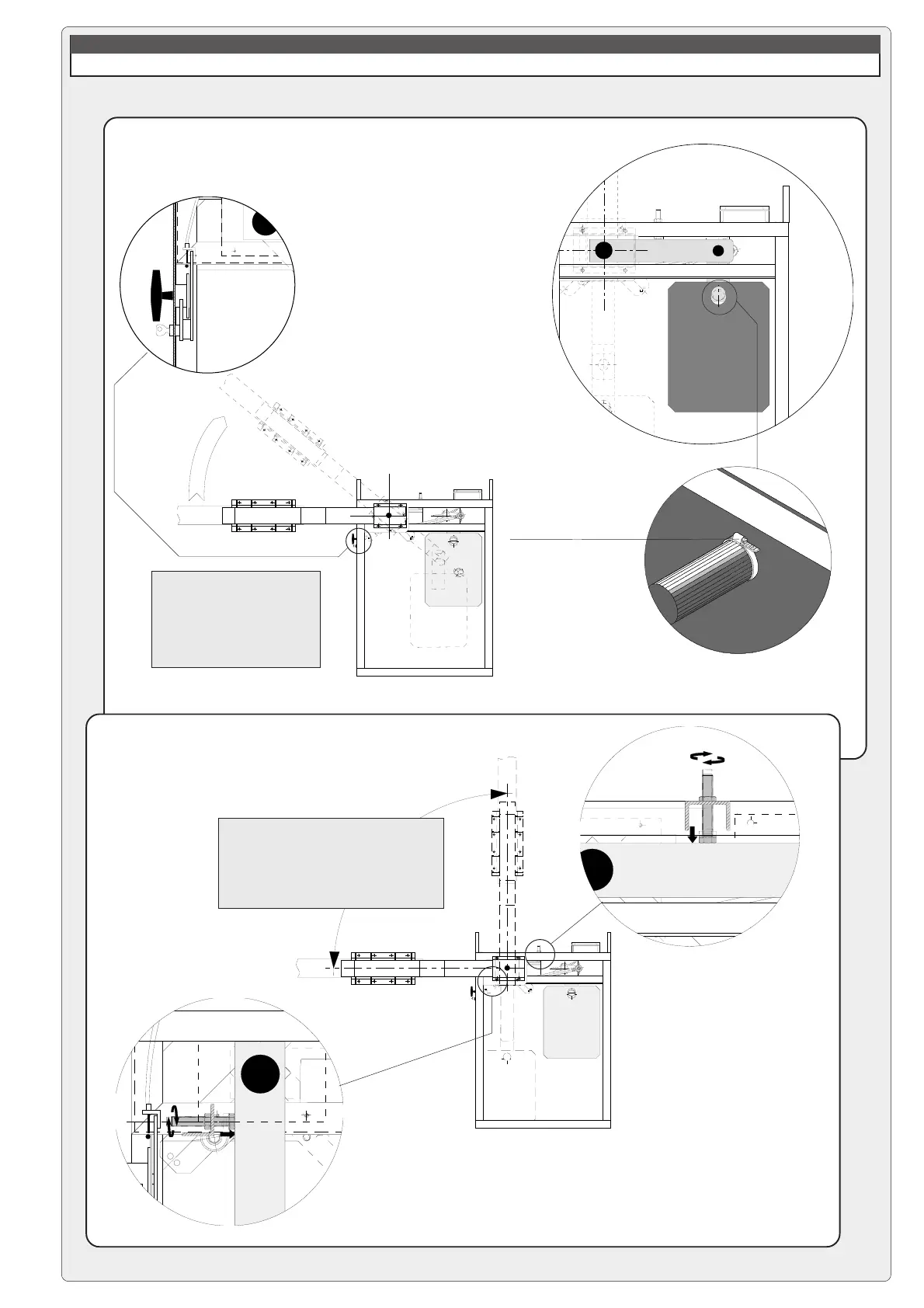

4- ASSEMBLING THE COUNTERWEIGHTS; ADJUSTING AND BALANCING THE BARRIER BAR
a) install the release handle,
turn the safety key and rotate
the handle to
release the
gear
motors;
b) insert the counterweight
plates on the support,
alternatively on the
left and right, until
the bar shows
signs of raising.
N.B.: if not all the
counterweight
plates are used,
they must be
fixed with a hose
clamp, to avoid
possible release
during movement.
c) balance the bar so
that it stays in position
when it is manually
placed at a 45° angle;
Hose clamp
e) adjust the horizontal
mechanical stop when
the barrier bar is in the
lowered position;
d) adjust the vertical
mechanical stop by fixing the
angle of the open barrier bar
so that it does not exceed 90°;

CAME GARD series Specifications

General

Protection Rating	IP54
Input Voltage	230 V AC
Power Supply	230V AC
Motor Power	300W
Output Voltage	24V DC
Maximum Current	5A
Operating Temperature	-20°C to +55°C
