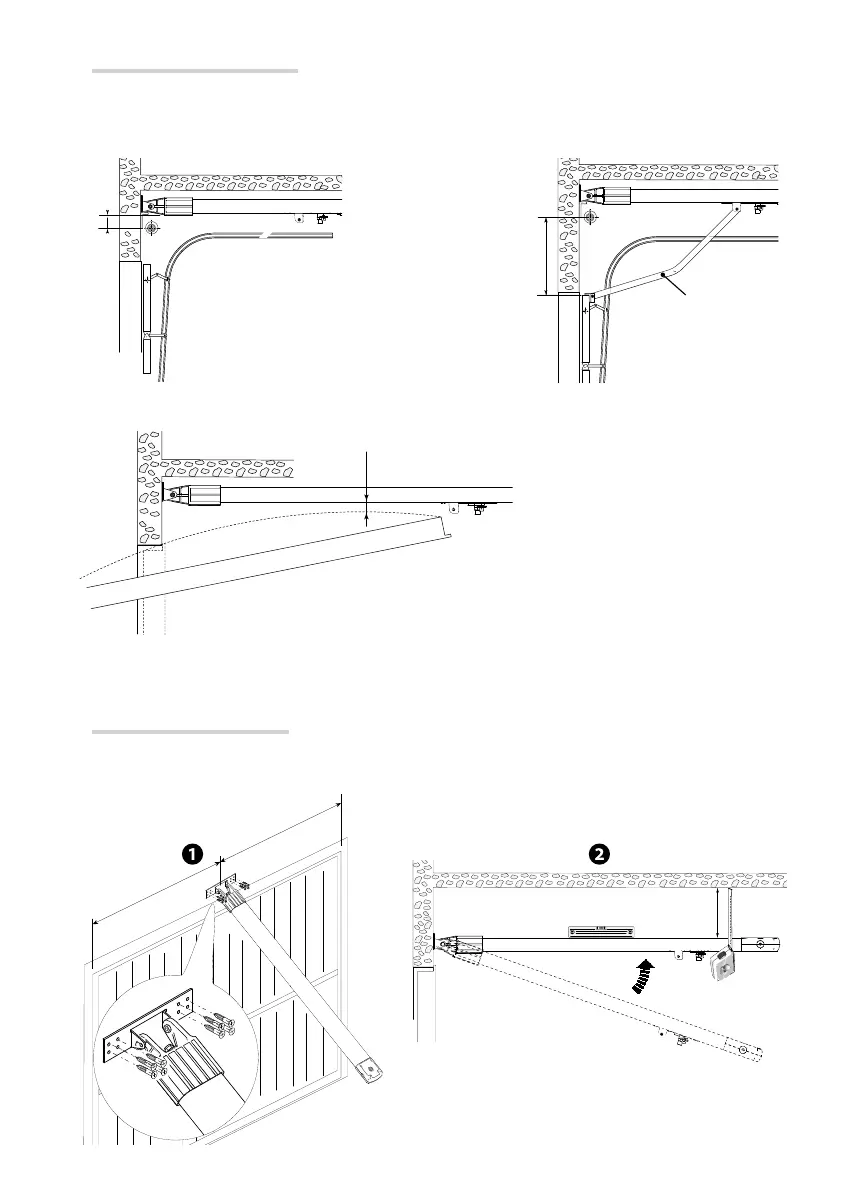

Positioning the traction guide
Sectional doors: above the spring-pole brace assembly. If the distance between the spring-pole and the upper
part of the door is between 300 and 600 mm, use the V122 transmission arm.
For protruding overhead garage-doors, kepp the guide at 20 from the highest opening point.
Fastening the traction guide
The traction guide should be fastened at the center of the door opening, using suitable screws. .
Raise the guide and position it horizontally to measure the distance from the ceiling, and then fasten it. .
☞
For partially-retracting protruding overhead garage doors, use the V201 transmission arms.
