6.2 Electrical connections

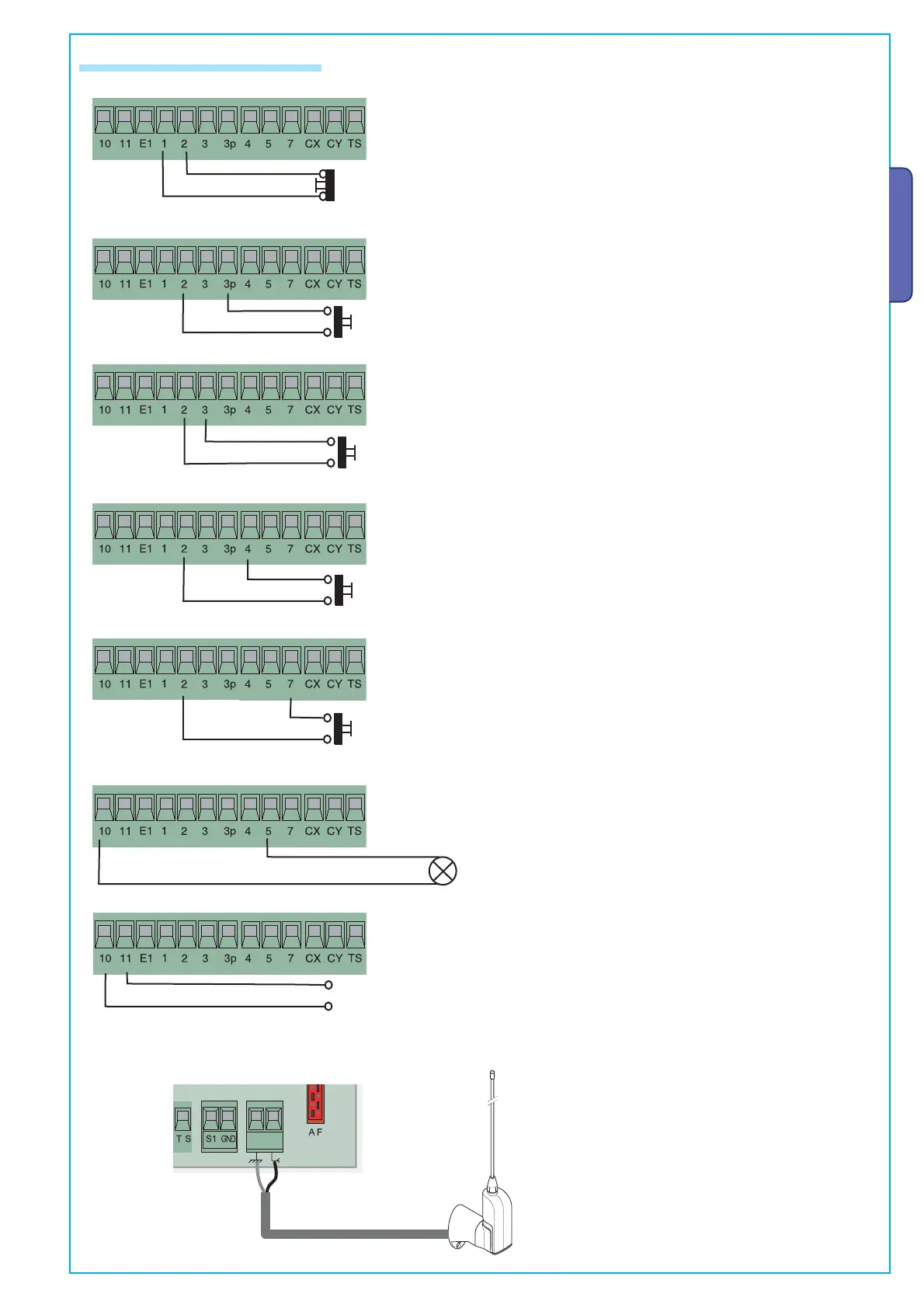

10-11 24V A.C accessories power supply output terminal, max 36 W
(2-7) N.O.open-close contact (in steps) or open-stop-close-stop (sequen-
tial)
(10-5) 24V 3W Max. opening indicator light
Antenna connection
(2-4) N.O. closing button
(1-2) N.C. STOP button
(2-3P) N.O. partial opening button
(2-3) N.O. complete opening button.
