Section01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))
ACS Main Components
ACS COMPONENTS MAIN FUNCTION
Filter To filter air intake of the compressor
Compressor
To pressurize the system
Solenoid release valve
To release air in the system
Electronic module To control the compressor or the solenoid release valve
Manifold
To split the air hoses and allows to manually release air in the
system
Pressure transducer (Low-pressure zone) To monitor the air pressure of the auxiliary line
Pressure transducer (High-pressure zone) To monitor the air pressure of the shock absorbers
Check valve (compressor)
To protect the compressor
Check valve (between both zones)
To eliminate air pressure variation between low and high
pressure zone
Auxiliary line To inflate tire
Cluster
To monitor the air pressure setting

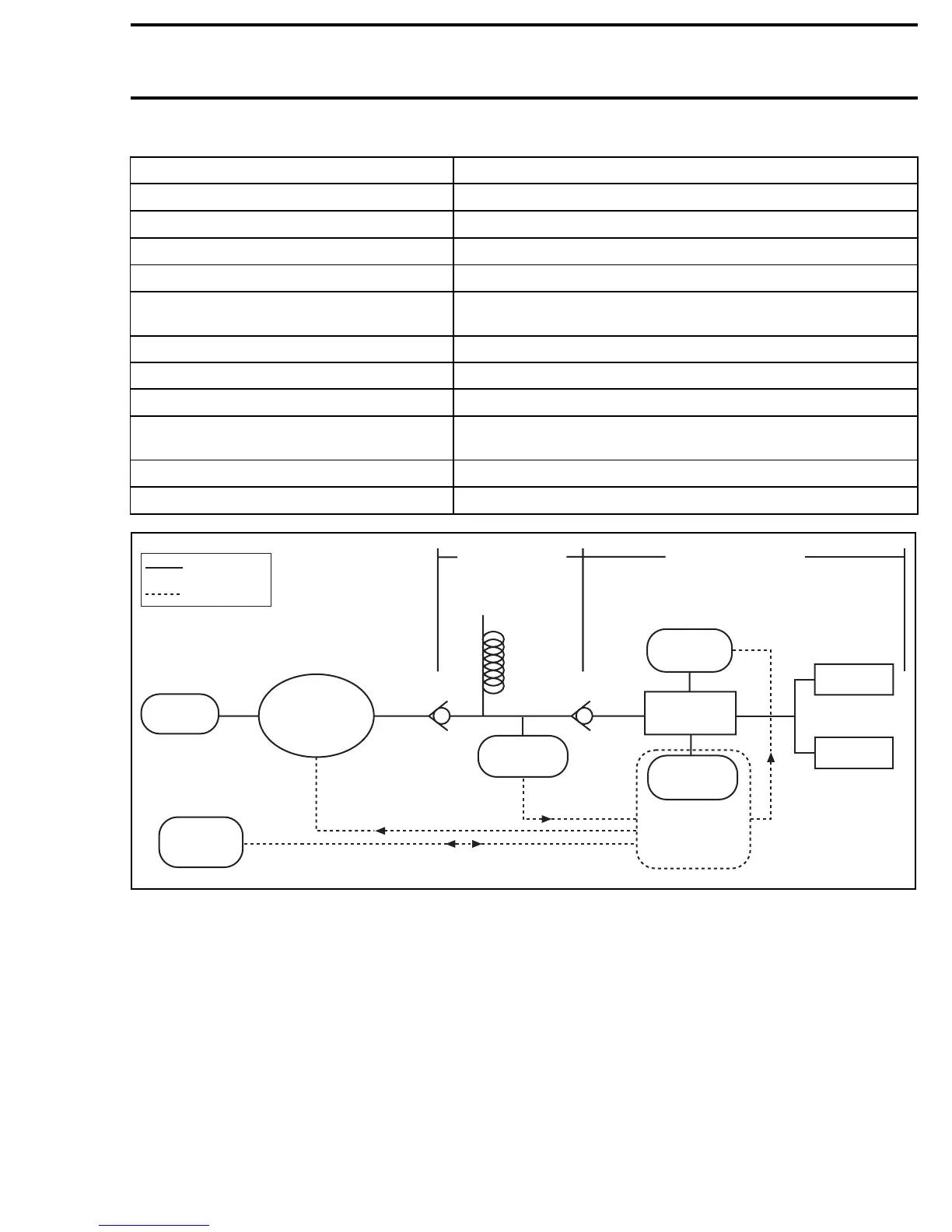

Filter
Compressor
Check-valve
Cluster
Pressure
transducer
Auxiliary
output
Low pressure
zone
High pressure
zone
Check-valve
Release
valve
Pressure
transducer
Manifold
Shock 1
Shock 2
Electronic
module
Pneumatic
Electric
vdd2010-001-601_en
vmr2010-004 29
