Section01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))

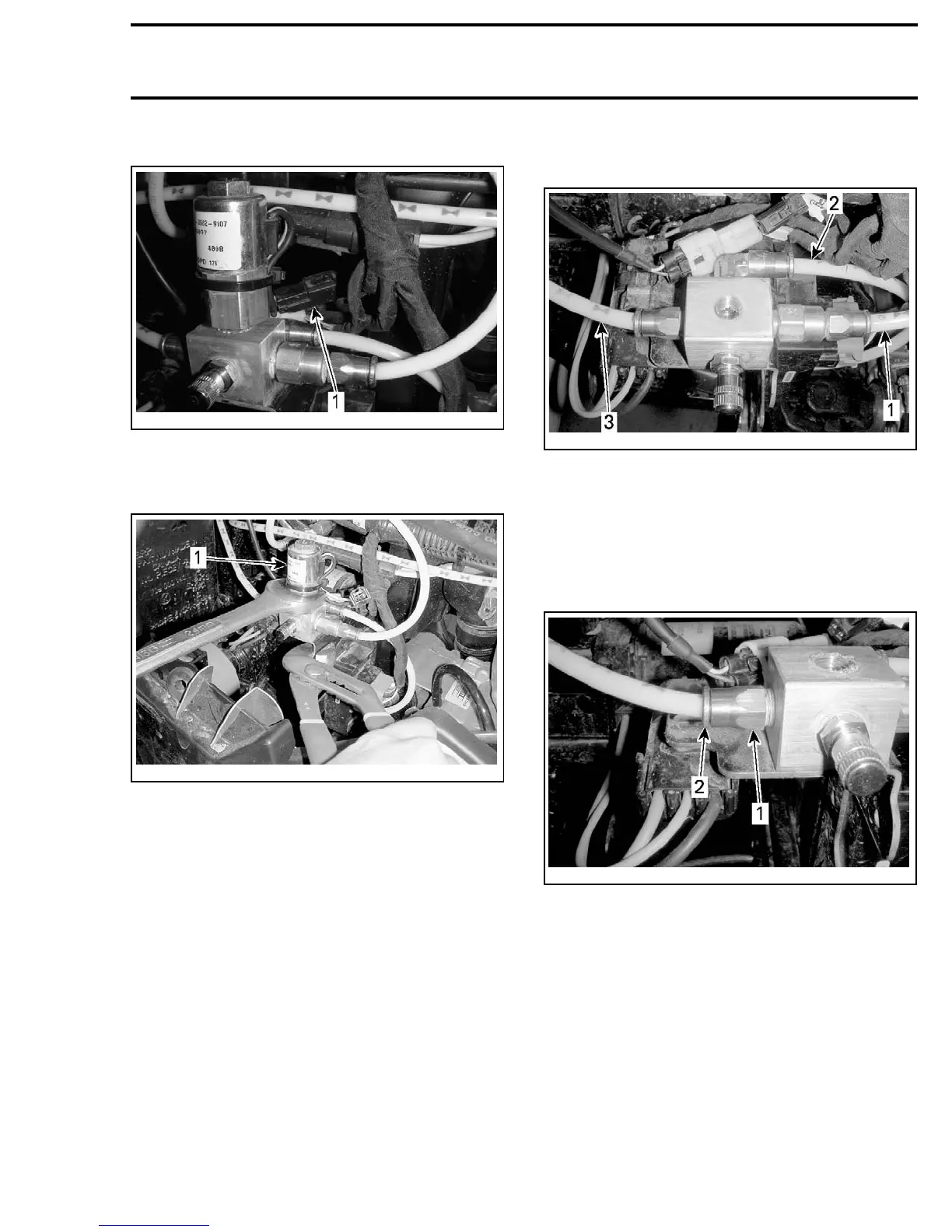

2. Disconnect solenoid valve connector.
vmr2010-004-003_a
1. Solenoid valve connector
3. Unscrew solenoid valve from manifold while
holding support.
vmr2010-004-004_a
1. Solenoid valve
ACS Solenoid Valve Installation
The installation procedure is the reverse of re-
moval procedure, however pay attention to the
following.
Apply
LOCTITE 592 (PIPE SEALANT) (P/N 293 800
018)
on solenoid valve male threads.
ACS MANIFOLD
ACS Manifold Removal
1. Release air pressure, refer to
RELEASING AIR
PRESSURE IN SYSTEM FOR SERVICING
in this
subsection.
2. Remove solenoid valve. Refer to
ACS SOLE-
NOID VALVE REMOVAL
.
3. Disconnect the following hoses from manifold
air fittings.
– Manifold air inlet hose (from compressor)
– Module hose
– Shocks hose.
vmr2010-004-005_a
1. Manifold air inlet hose (from compressor)
2. Module hose
3. Shocks hose
4. To disconnect hoses, proceed as follows:
4.1 Push fitting ring toward manifold.
4.2 Hold ring in place.
4.3 Pull air hose.
vmr2010-004-008_a
1. Fitting
2. Fitting ring
5. From underneath support, remove manifold re-
taining screws.
vmr2010-004 33
