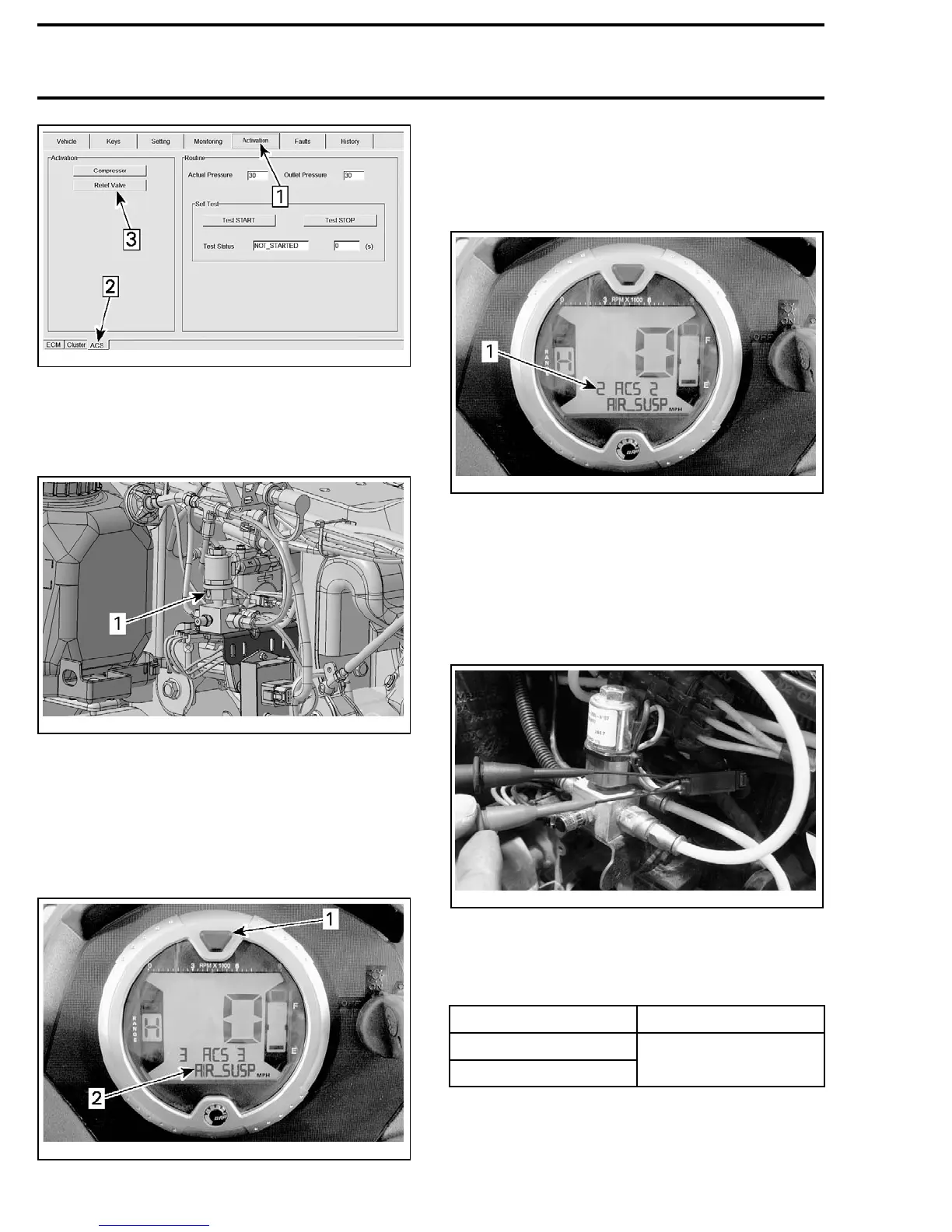

Section 01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))
vmr2010-004-201_b
Step 1: Activation page
Step 2: ACS folder
Step 3: Solenoid valve operation test button
5. Verify that air exits from side port to confirm
proper solenoid operation.
vmr2010-004-202_a
1. Side port
ACS Solenoid Valve Input Voltage Test
1. Remove seats and RH side panel.
2. Place ignition switch to ON position.
3. Press selector button several times until
AIR_SUSP
is displayed.
vmo2010-004-005_a
1. Selector button
2. AIR_SUSP displayed
4. Set suspension mode to ACS 2 using the ACS
button.
5. Wait until the actual setting shows 2 (LH dis-
play).
vmr2010-004-101_a
1. Actual setting (pressure transducer reading)
NOTE: Make sure to wait enough time in order to
let the system adjust the air pressure.
6. Set the FLUKE 115 MULTIMETER (P/N 529 035
868)
to Vdc.
7. Back probe solenoid connector (without discon-
necting).
vmr2010-004-102
8. Set suspension mode to ACS 1 using the ACS
button.
9. Measure voltage between solenoid connector
terminals as per the following table.
TEST PROBES VOLTAGE
Pin 2 (YL/GN)
Pin1(BK)
Battery voltage
(± 12 Vdc)
ACS Solenoid Valve Removal
1. Release air pressure, refer to
RELEASING AIR
PRESSURE IN SYSTEM FOR SERVICING
in this
subsection.
32 vmr2010-004
