Section01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))

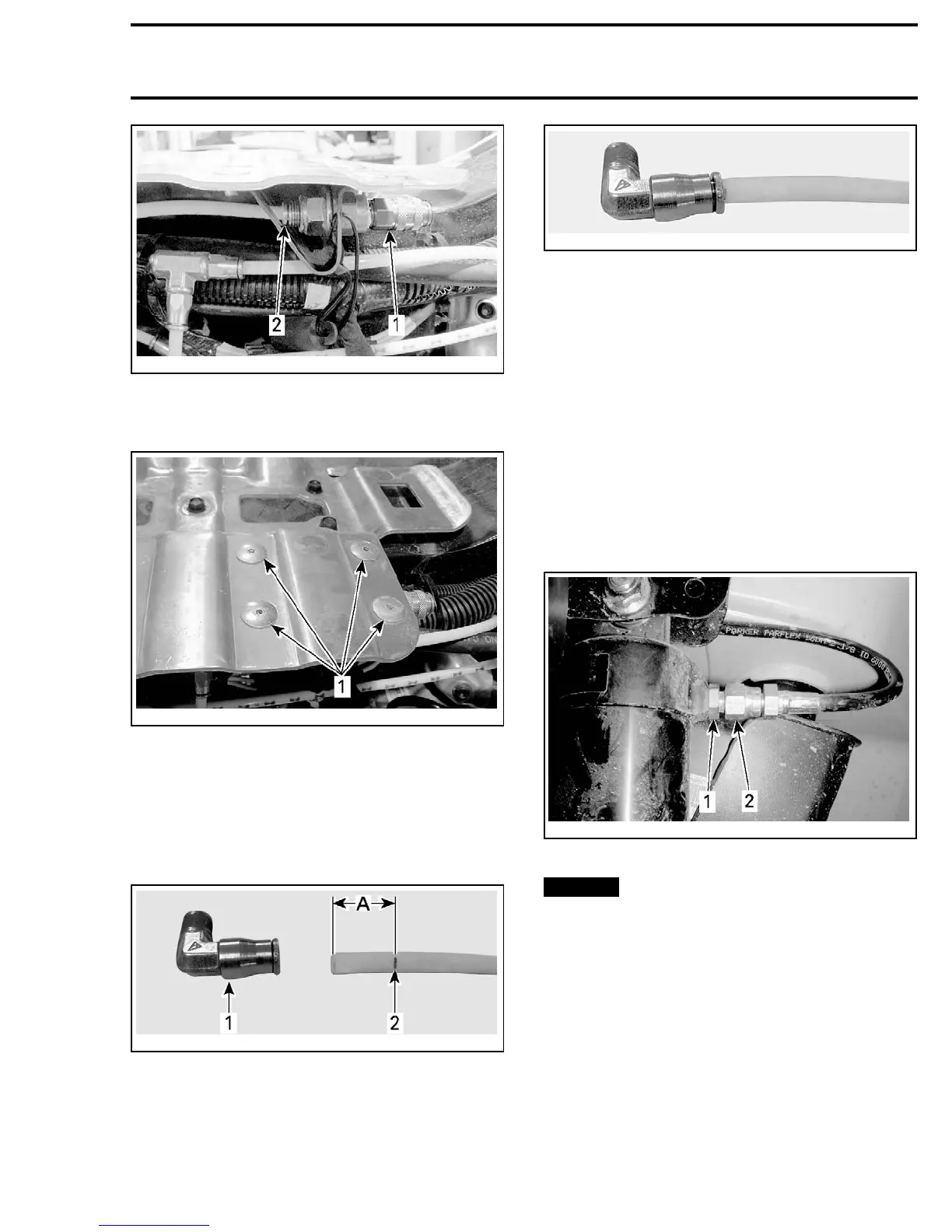

vmr2010-004-031_a
1. Auxiliary line adapter
2. Fitting ring
3. Drill retaining rivets.
vmr2010-004-032_a
1. Retaining rivets
4. Install new adapter.
5. Secure adapter support using rivets.
6. Connect auxiliary line hose into adapter.
Ensure that air hoses are properly inserted into fit-
tings, refer to the following illustrations.
vmo2010-011-102_a
PUSH HOSE UNTIL THE MARK IS COMPLETELY INSERTED
1. Fitting
2. Mark
A. Must be inserted into fitting
vmo2010-011-103
HOSE PROPERLY INSERTED INTO FITTING
SHOCK ABSORBERS
Shock Absorber Removal
1. Lift rear of vehicle until rear shock absorbers are
fully extended.
2. Install jack stands or blocks under the frame to
support the vehicle.
3. Unscrew air hose from shock absorber as fol-
lows:
3.1 Install an appropriate wrench on shock fit-
ting to hold it in place.
3.2 Unscrew air hose fitting using another
wrench.
vmr2010-004-027_a
1. Shock absorber fitting
2. Air hose fitting
NOTICE
To avoid damaging the shock fitting
threads, install a wrench on the shock fitting to
hold it in place while unscrewing the air hose
fitting.
4. Remove the shock absorber lower bolt and nut.
vmr2010-004 45
