Can-Am DS70 - 10 Fuel Valve; 11 Seat Latch Knob

CONTROLS/INSTRUMENTS/EQUIPMENT

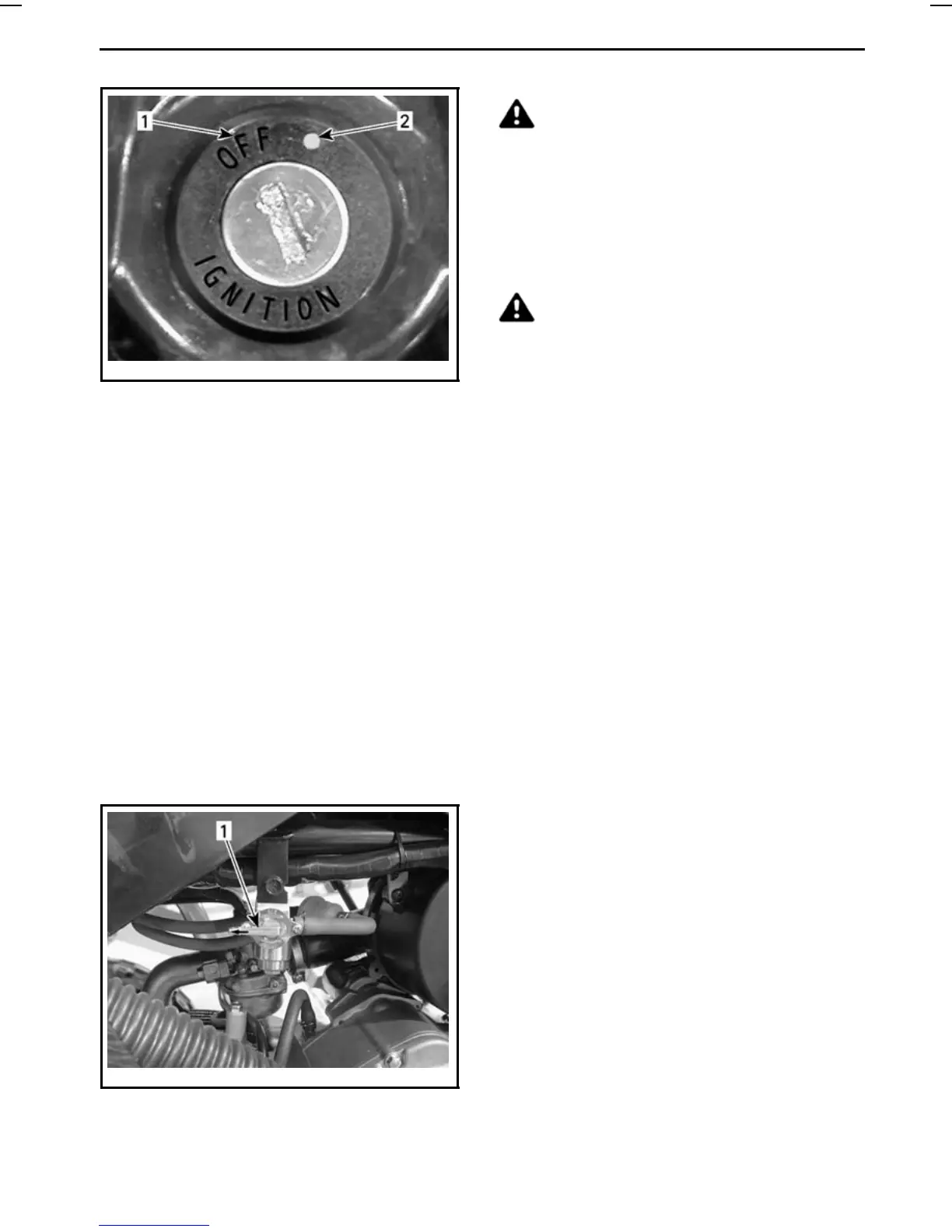

vmo2008-008-012_a
IGNITION SWITCH
1. OFF position
2. ON position
Insert key in switch and turn to ON po-
sition. To remove key, turn key to OFF
position then pull it out.
NOTE: While engine can be stopped
by turning ignition key to OFF posi-
tion, we recommend the engine be
stopped by the engine stop switch.
Always turn ignition switch to OFF po-
sition after engine has been stopped.
10) Fuel Valve
This is a 3-position rotary valve: OFF,
ON,RES.Rotatethetabtoalignits
pointer with ON, OFF or RES.
vmo2008-008-014_a
LH SIDE OF VEHICLE
1. Align this pointer toward the desired
position
CAUTION Improper opening
of fuel valve will restrict the flow of
fuel. Make sure valve is fully opened
while running.
OFF
Stops fuel supply to carburetor.
CAUTION Turn valve to OFF
position when vehicle is not being
operated or when transporting.
ON
Allows fuel to flow to carburetor. This
is the normal position for operation of
the vehicle.
RES. (reserve)
When fuel is exhausted in the fuel tank
when in the ON position, an emergen-
cy supply of fuel is available by turning
the knob to RES. Use this position only
when the ON supply is empty.
When down to the reserve, refuel as
soon as possible. Be sure to turn the
valve back to the ON position after re-
fuelling.
11) Seat Latch Knob
Located underneath rear fender, near
rear bumper. It allows the removal of
seat to give access to engine compart-
ment. Pull knob to release seat.
_____________________
63
