MAINTENANCE PROCEDURES
Reinstall drain plug and torque to
16 N•m (142 lbf•in).
Refill gearbox using 165 ml (6 U.S. oz)
of XP-S chaincase oil (P/N 413 801 900)
or an equivalent.
NOTE: There is no dipstick provided
with this vehicle to check gearbox oil
level. The ensure proper oil quantity
in gearbox, drain oil and replenish with
the proper amount of recommended
oil.
CAUTION Do not use other un-
recommended typesof oil when ser-
vicing. Do not mix with other types
of oil.
Reinstall oil filling plug.
Reinstall all removed parts.
Throttle Cable
Throttle Cable Inspection
Check throttle lever free-play, adjust if
necessary.
If correct adjustment is unattainable,
see an authorized Can-Am dealer.
Inspect throttle cable for excessive
wear, kinking or fraying. Ensure cable
moves freely.
Replace throttle cable if any signs of
wear, fraying or other damage are
found.
Lubricate cable using silicone lubricant
(P/N 293 600 041) to reduce premature
wear and to ensure proper movement
of the cable.
WARNING
Always use a silicone-based lubri-
cant. Using another lubricant (like
a water-based lubricant) could
cause the throttle lever/cable to
become sticky and stiff.
Throttle Lever
Throttle Lever Adjustment
The normal throttle free-play is 5 to
10 mm (3/16 to 13/32 in).

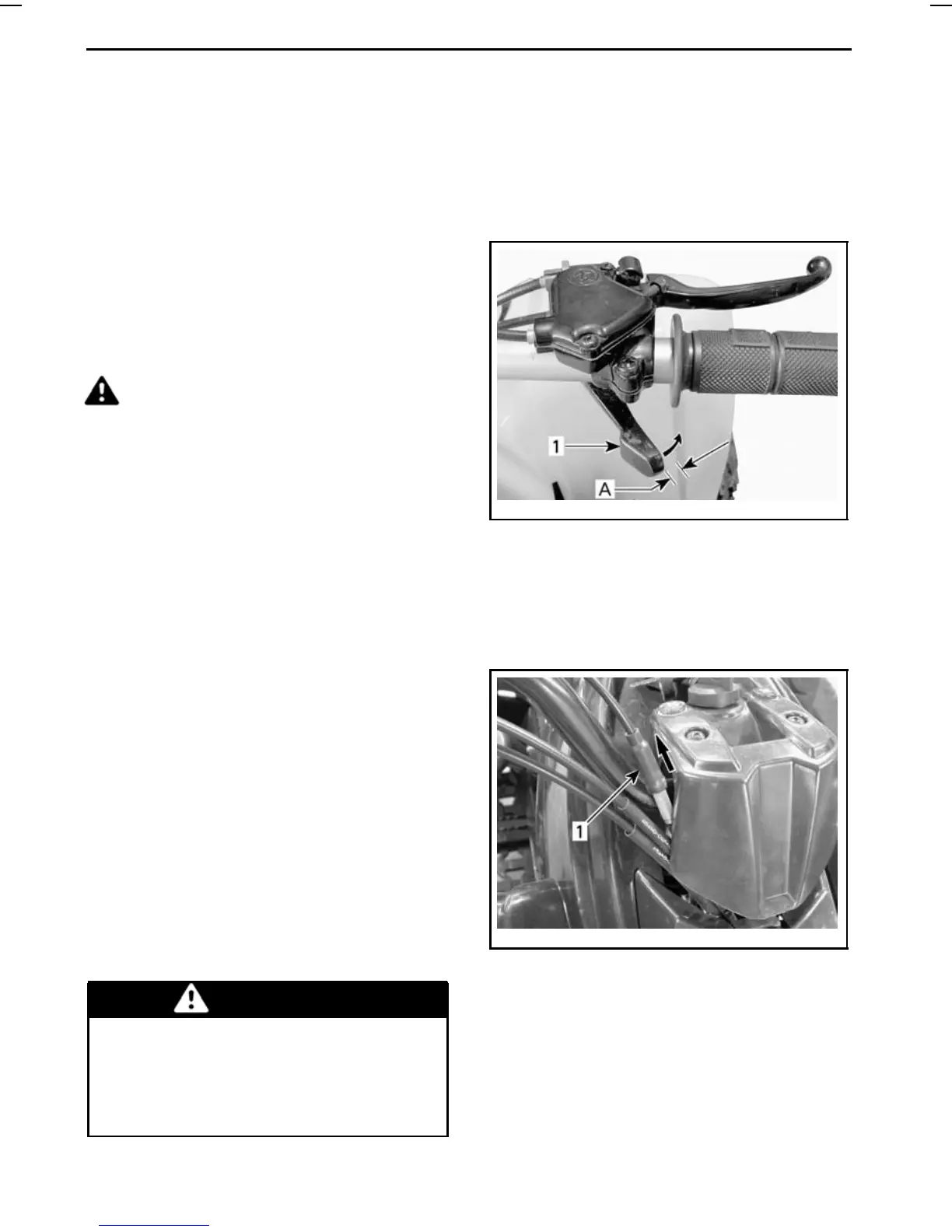

vmo2008-020-003_b
TYPICAL — NORMAL FREE-PLAY
1. Throttle lever
A. 5to10mm(3/16to13/32in)
To adjust cable, slide rubber protector
back to expose throttle cable adjuster.
vmo2008-008-028_a
1. Rubber protector
Loosen locking nut and turn the ad-
juster to get proper adjustment.
NOTE: Measure throttle free play at
the tip of throttle lever.
Tighten locking nut and reinstall protec-
tor.
88
