Can-Am DS70 - Gearbox Oil

MAINTENANCE PROCEDURES
Gearbox Oil
Gearbox Oil Change

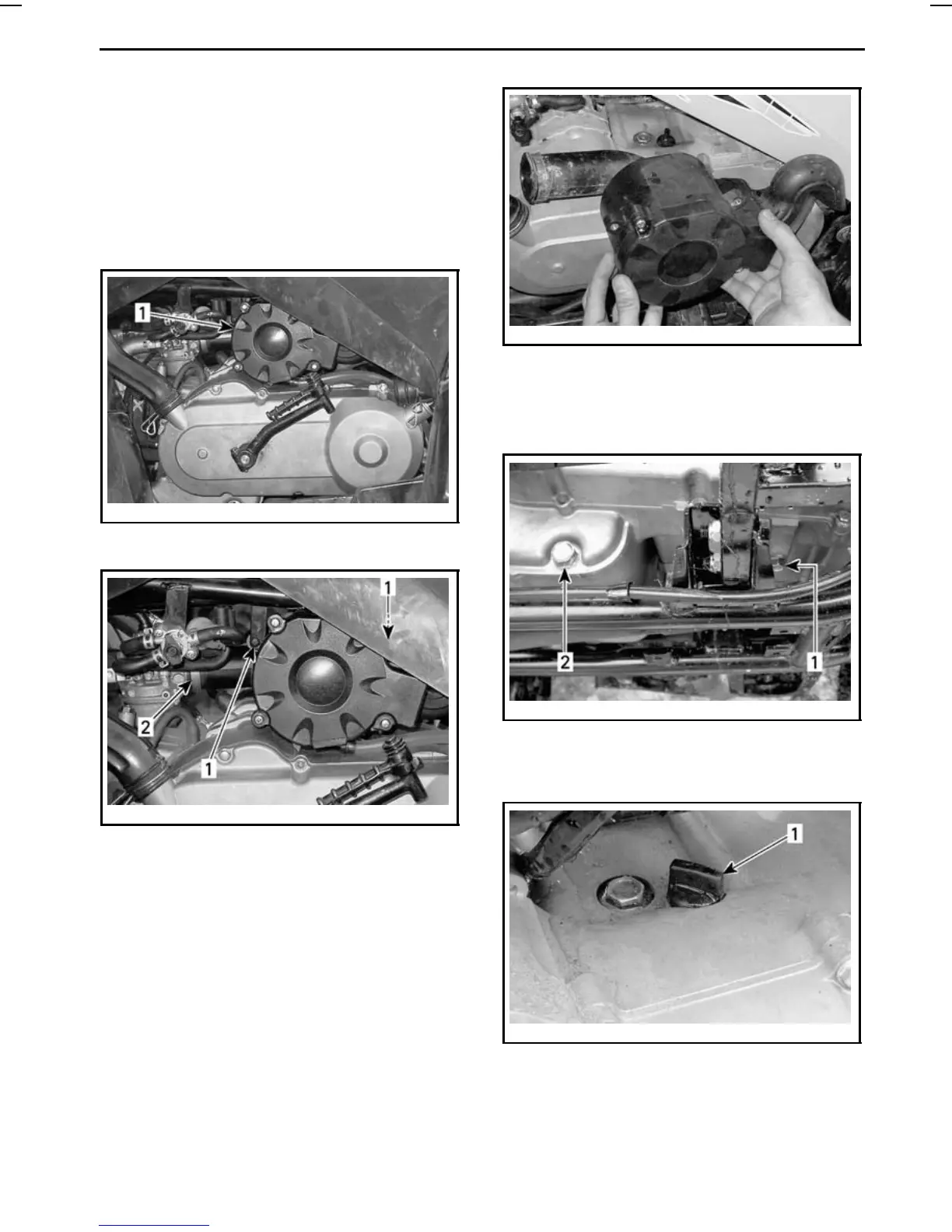

Place the vehicle on a level surface.
Remove the air filter housing from the
vehicle.
vmo2008-008-036_a
1. Air filter housing
vmo2008-008-058_a
1. Remove screws
2. Loosen clamp
vmo2008-008-062_a
REMOVE AIR FILTER HOUSING
Clean drain plug and oil filling plug area
then remove the gearbox drain plug.
mmo2008-008-056_a
DRAIN PLUG — LH SIDE OF ENGINE
1. Gearbox drain plug
2. Engine oil drain plug
mmo2008-008-059_a
FILL PLUG — LH SIDE OF ENGINE
1. Gearbox fill plug
Allow enough time for oil to flow out of
gearbox.
_____________________
87
