Can-Am DS70 - 8 Indicator Lamps; 9 Ignition Switch

CONTROLS/INSTRUMENTS/EQUIPMENT

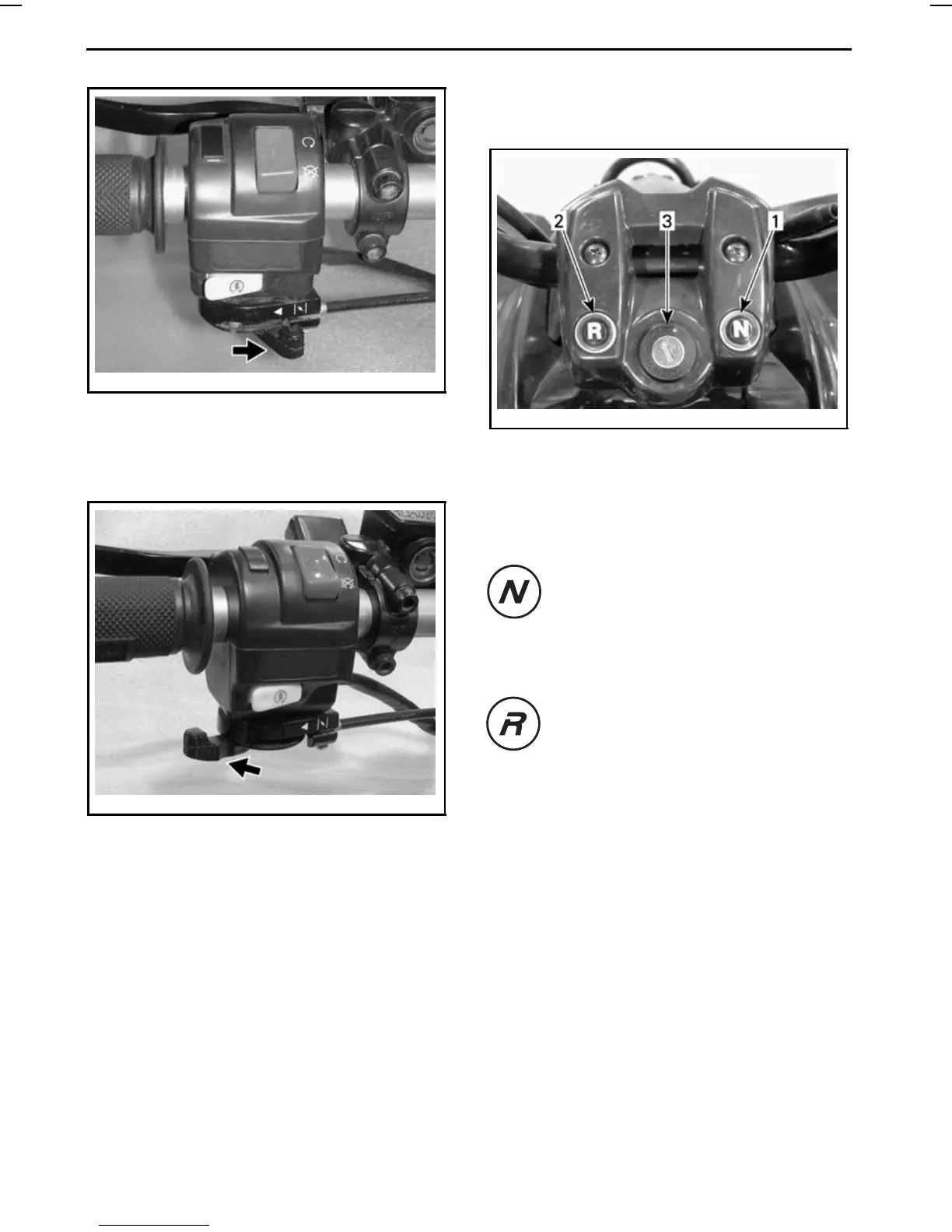

vmo2009-004-005_d
OFF POSITION
The full choke position is used for low-
er engine temperature.
vmo2009-004-006_a
FULL CHOKE POSITION
The other positions between OFF and
FULL position, will be use depending
on the engine temperature.
8) Indicator Lamps
vmo2008-008-019_a
TYPICAL
1. Neutral (N)
2. Reverse (R)
3. Ignition switch
Neutral Lamp (GREEN)
When lit, it indicates the trans-
mission is in neutral position.
Reverse Lamp (RED)
When lit, it indicates the trans-
mission is in reverse position.
9) Ignition Switch
Key-operated, 2-position switch: OFF
and ON.
62
