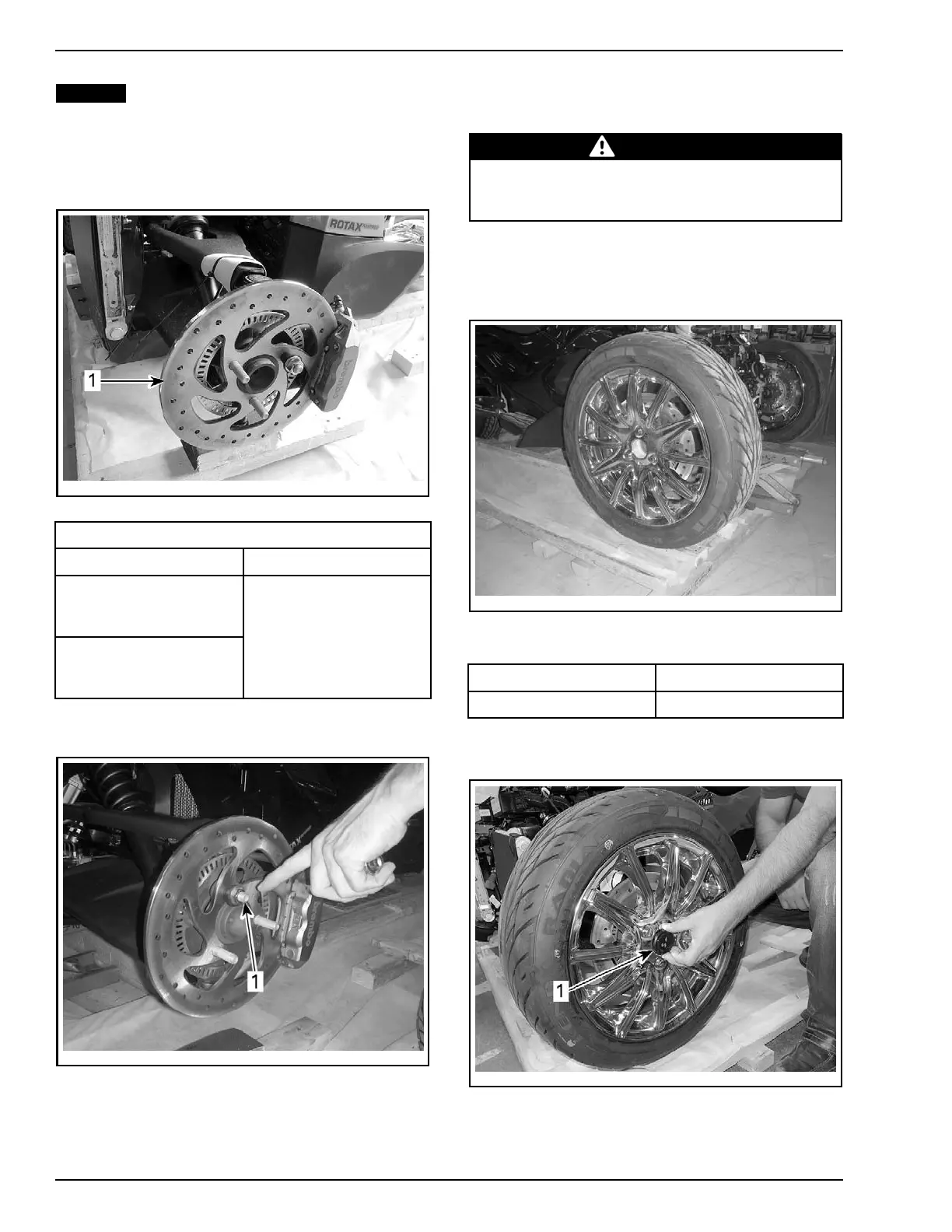

UNCRATING
NOTICE
A thin layer of anticorrosion treat-
ment is present on the brake discs and must
be removed before using the vehicle. Not con-
forming to this procedure may lead to a brake
chattering squeaking and brake pad replace-
ment would be necessary.
rbl2014-004-034_a
1. LH, RH and
rear brake disks to clean, both sides of disk
BRAKE DISC CLEANING
SERVICE PRODUCT REQUIRED TOOL
XPS BRAKE
SAND
PARTS CLEANER (CAN)
(P/N 219 701 776)
XPS BRAKES AND
PARTS CLEANER (USA)
(P/N 219
701 705)
Shop rag
2. Remove nut securing front brake discs to vehi-
cle.
rbl2013-003-006_a
TYPICAL
1. Nut to remove, both sides
3. Install front wheels on vehicle.
NOTE: Ensure that the rotation direction shown by
the arrow on the tire is respected.
WARNING
The tires are only designed to rotate in one di-
rection. Do not switch the left and right front
wheels.
4. Hand tighten
wheel lug nuts snug (from PDI kit).
5. Lower vehicle on crate base.
6. Remove floor jack (or hoist and lifting strap).
rbl2013-003-007
TYPICAL
7. Torque wheels lug nuts.
PART SPECIFIED TORQ UE
Wheel lug nut 110 N•m (81 lbf•ft)
8. Install wheel caps (inside front storage com-
partment).
rb
l2014-004-033_a
1. Front wheel cap to install, one each side
9. Remove metal plate that retained front of vehi-
cle to c rate base.
10 / 52 2014-1 PREDELIVERY
