UNCRATING

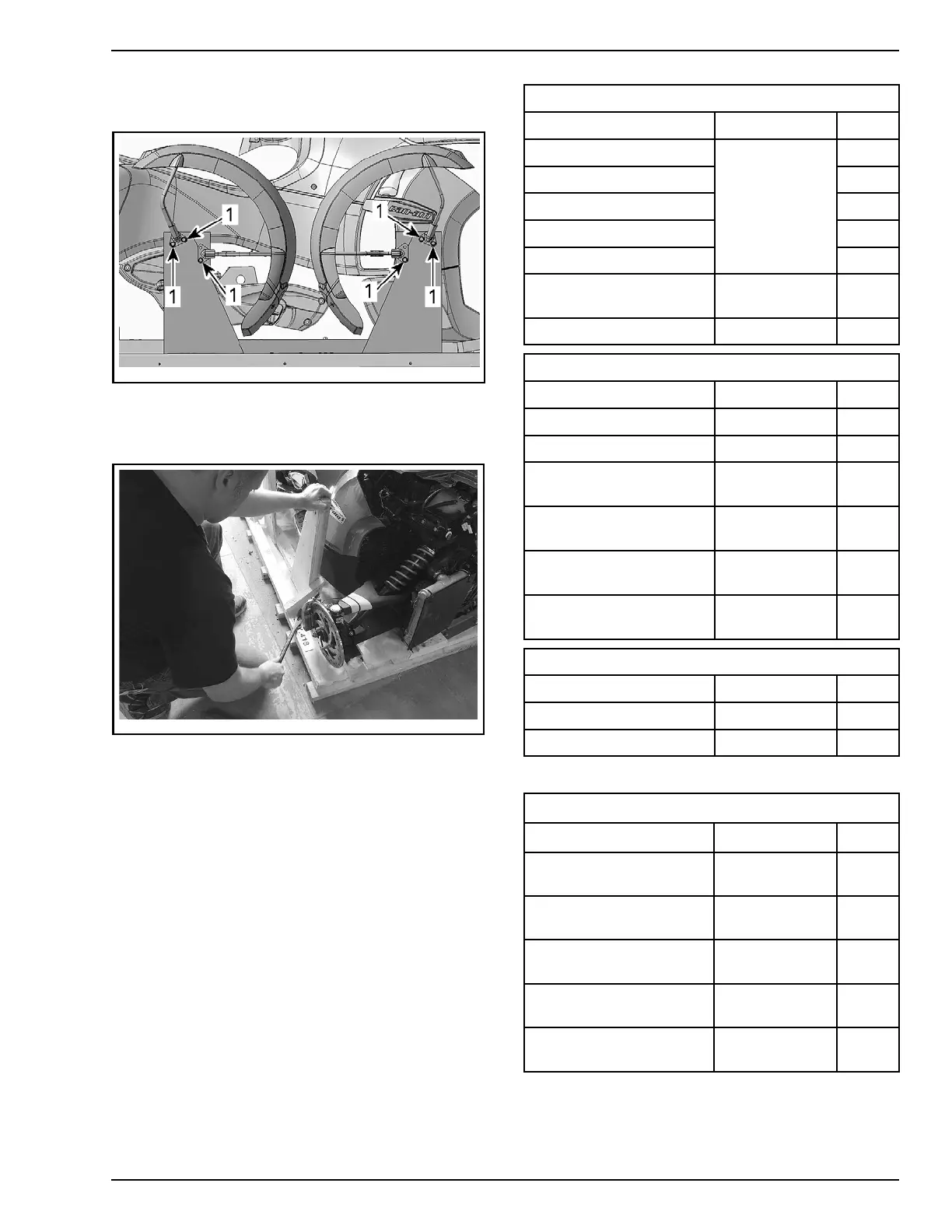

6. On RH side, remove two fenders from
sub-crate.
rbs2011-014-002_a
TYPICAL - RH SIDE - SUB-CRATE THAT CONTAINS FRONT
FENDER
1. Bolts to remove (6)
7. Remove front fender sub-crate.
rbl2014-004-002
FRONT FE
NDER SUB-CRATE REMOVAL
8. If you dot not have a fully charged new bat-
tery of the same type on hand, remove bat-
tery from vehicle and carry out the
BATTERY
CHARGING
procedure. See
BATTERY
further
in this bulletin.
Parts Check
Ensure the crate includes the following items:
FRONT STORAGE C
OMPARTEM EN T
DESCRIPTION MODEL QTY
Operator's guide
1
Predelivery check list
1
Safety DVD
1
Predelivery kit
1
Wheel caps
All
2
Front cargo liner
RT-S
RT Limited
1
Travel bag RT Limited
1
REAR CARGO COMPARTMENT
DESCRIPTION MODEL QTY
Service covers
All 2
Windshield trim All 2
iPOD
†
cable
RT-S
RT Limited
1
Audio auxiliary cable
RT-S
RT Limited
1
Antenna grommet
RT-S
RT Limited
1
Rear turn signal lights
kit (Japan models)
All
1
GLOVE BOX
DESCRIPTION MODEL QTY
Spare key
All
1
Trailer key barrel All
1
Ensure pre-delivery kit includes the following:
PREDELIVERY KIT
DESCRIPTION WHERE USED QTY
Wheel lug nut - black
(RT-S)
Front wheels 6
Wheel lug nut - chrome
(RT and RT LTD)
Front wheels 6
Plastic bushing
Rear
suspension
2
M10 x 140 hexagonal
flange screw
Rear
suspension
1
M10 elastic flange nut
Rear
suspension
1
†iPod is a trademark of Apple Inc.
PREDELIVERY 2014-1 7 / 52
