UNCRATING
UNCRATING

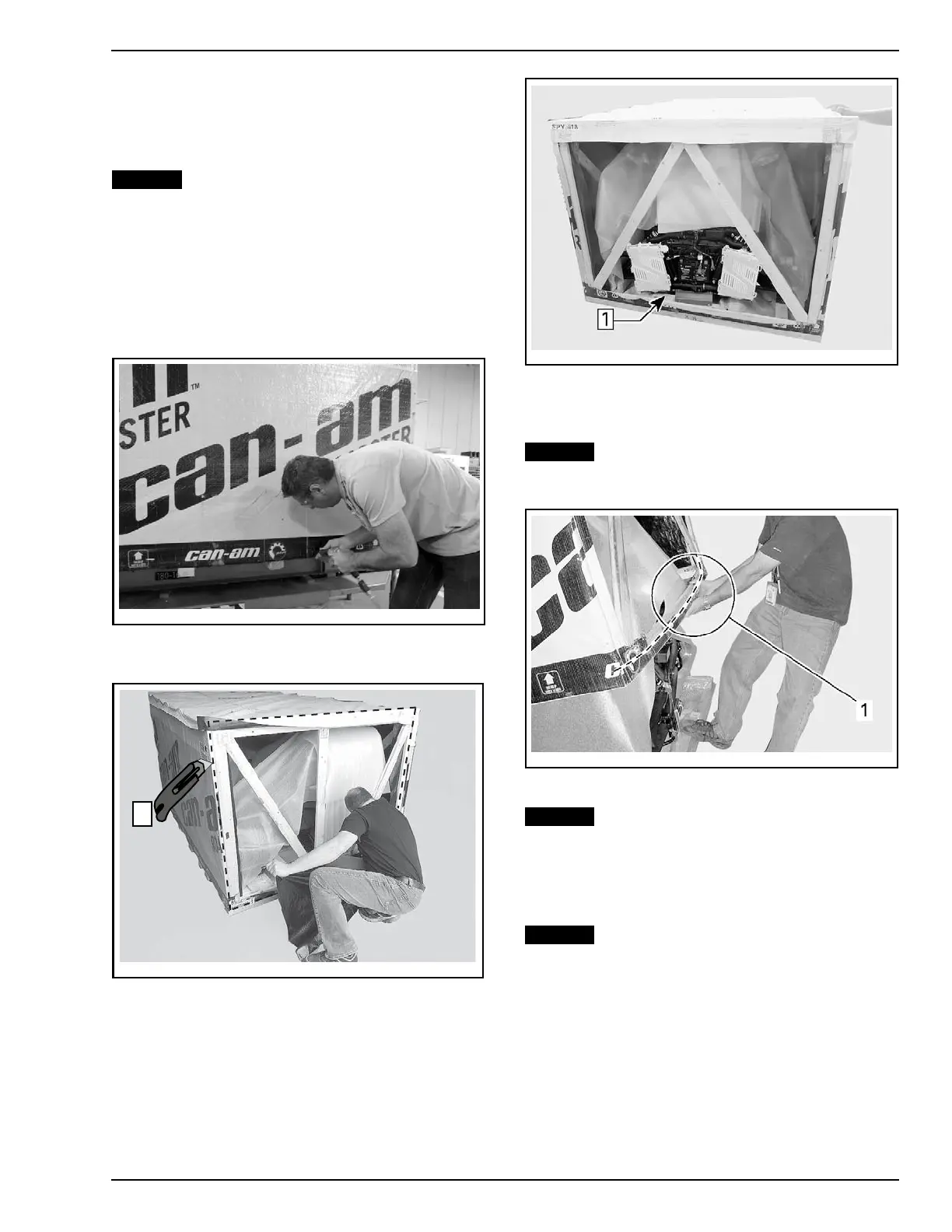

Crate Cover Removal
NOTICE
Allowing the crate to drop may cause
serious damage to vehicle.
1. Position the crate on a firm, level surface.
2. Remove all screws holding crate cover to crate
base.
NOTE: Screws that are used are Robert son
†
#2
type (or equivalent) that require the use of an ap-
propriate screwdriver.
rbl2014-004-026
SCREW REMOVAL FROM CRATE COVER
3. Carefully cut both ends of crate tarpaulin.
1
rbl2014-004-001_a
Step 1: Carefully c ut both ends of crate tarpau lin
4. Locate front of vehicle
rbl2014-004-004_a
Step 1: Locate front of vehicle
5. At front end of vehicle, pull crate cover out to-
ward you, then up to clear vehicle fascia.
NOTICE
Do not lift crate cover vertically. Pull
crate cover out and up at front end of vehicle.
Refer to illustration.
rbl201
0-002-004_a
FRONT OF VEHICLE
1. Pull crate cover out and up t o clear front fascia of the vehicle
NOTICE
The cra
te cover must be pulled out-
ward wh
ile lifting it to avoid damage to the ve-
hicle.
Parts and Sub-crate Removal
NOTICE
Be careful not to scratch the front
bumper and front fascia.
NOTE: T
he sub-crates are located on each side of
the ve
hicle.
1. On LH side, remove front cargo module sub-
crate.
