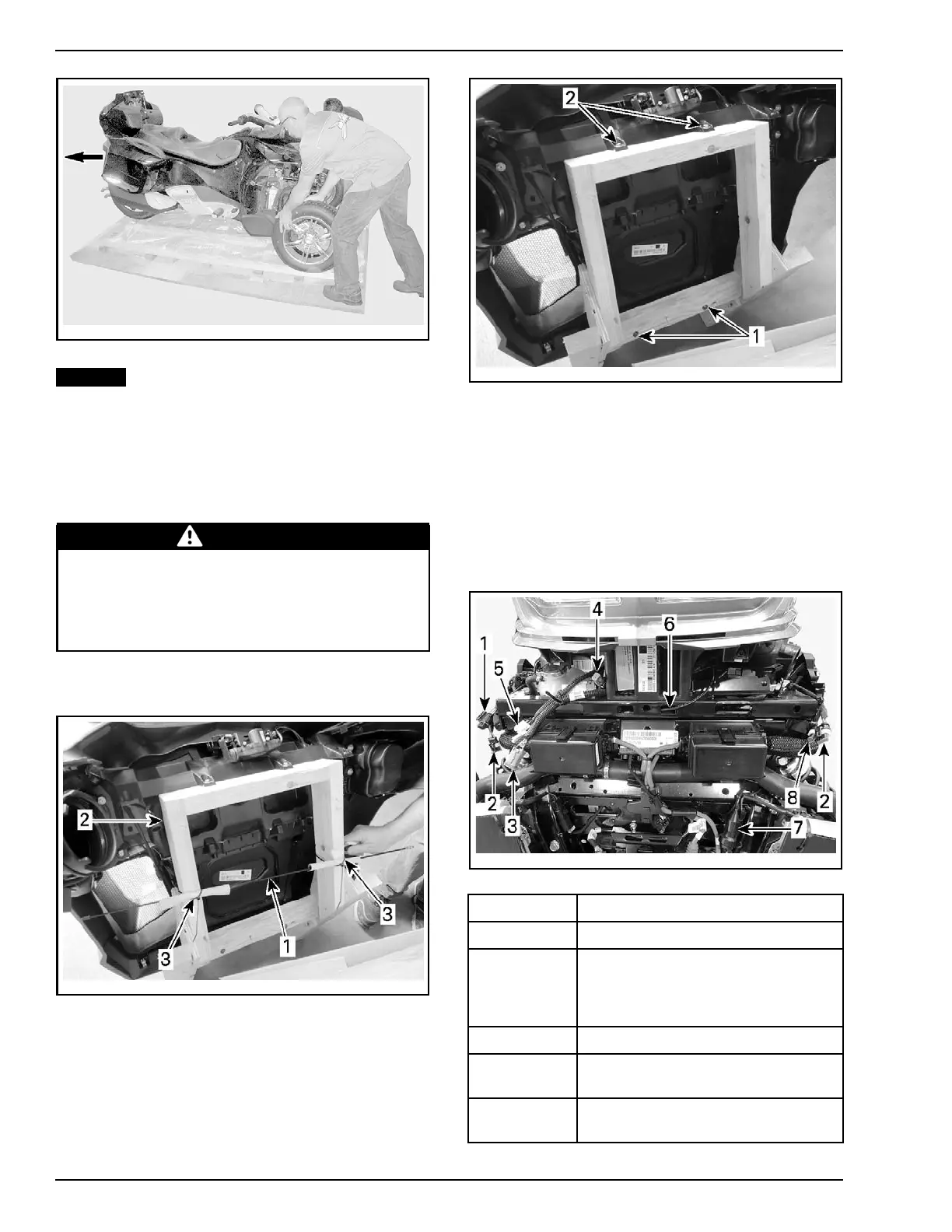

PARTS TO BE INSTALLED
rbl2010-002-021_a
TYPICAL
NOTICE
Always move vehicle rearward out of
the crate base.
PARTS TO BE INSTALLED
Front Cargo Module
Installation
WARNING
Make sure ba
ttery is not connected before
installing
front cargo module. Do not install
front carg
o module if b attery is connected
because sp
arks can occur if tools touch bat-
tery termi
nals.
1. Remove antenna from front cargo module sub-
crate.
rbl2014-004-003_a
ANTENNA REMOVAL
1. Anten
na
2. Front cargo module sub-crate
3. Locking ties to cut
2. Assis
ted by another person, remove and dis-
card
bolts holding the bottom and the top sec-
tion
s of sub-crate.
rbl2014-004-007_a
TYPICAL
1. Lower retaining bolt
2. Upper retaining bolts
NOTE: Be careful not to lose the caged nuts lo-
cated i n the bottom fixation holes of the front
cargo module.
3. Open front storage compartment cover.
4. Ensure the following cables and connectors are
accessible prior to installing front cargo module,
cut locking ties if required.
rbl20
14-004-014_a
REFER TO THE FOLLOWING TABLE FOR ITEMS DESCRIPTION
ITEMS DESCRIPTION
1
PTS connector
2
RH and LH light connectors
- Fog lights (RT-S, RT
Limited and option package)
- Low beam headlights (CE models)
3
DLC connector (B.U.D.S.)
4
Storage cover actuator connecto r
(as applicable)
5
Storage cover switch connector
(as applicable)
14 / 52 2014-1 PREDELIVERY
