Can-Am Spyder RT Series User Manual

SETUP
Lights

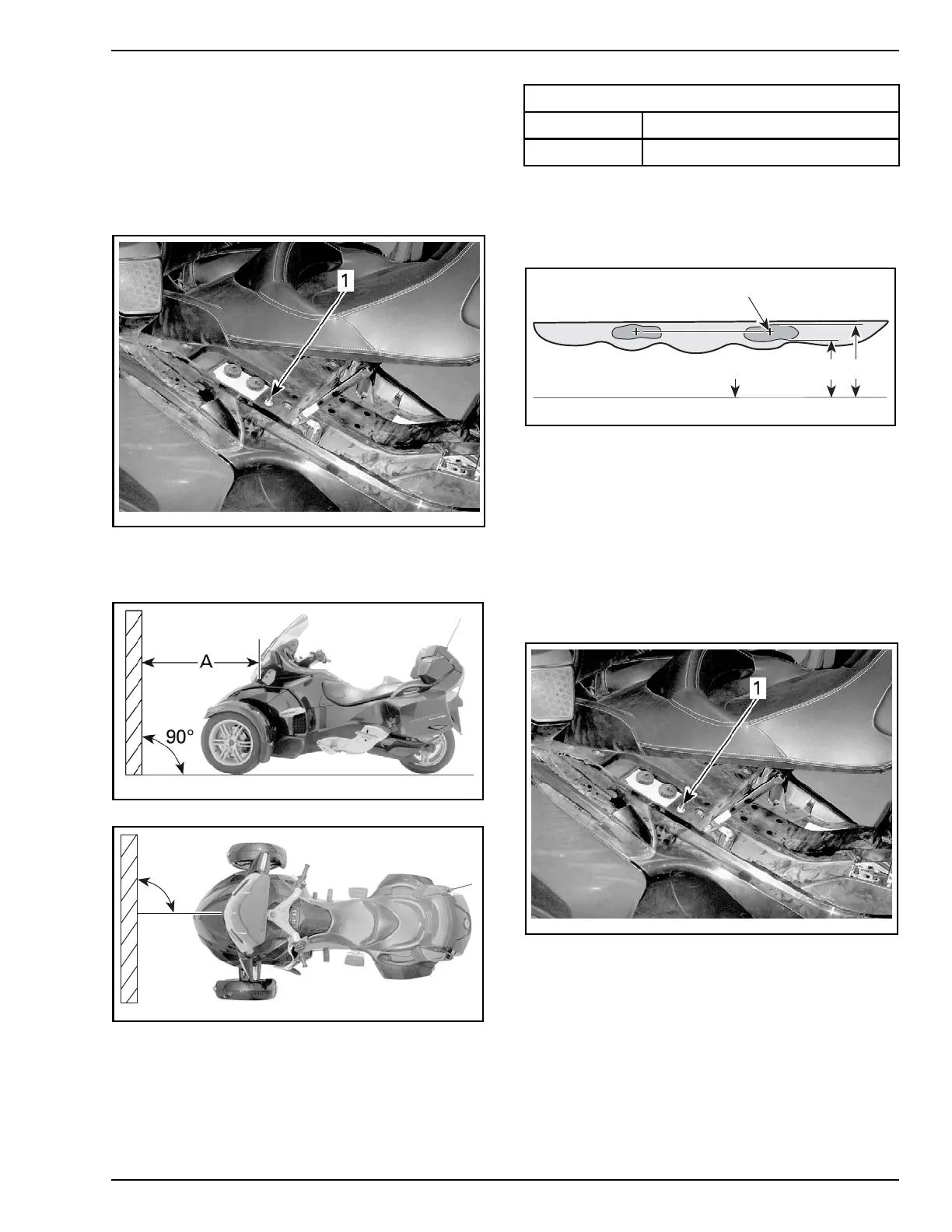

Headlights Aiming Verification
North American Models
1. Set the rear suspension a ir pressure to 0 kPa
(0 PSI) using the manual ACS inflation valve lo-
cated under the seat.
rmo2010-001-056_a
1. Manual ACS
inflation valve
2. Position the vehicle in front of a test surface as
shown.
rmo2010-001-007_b
A. 10 m (33 ft)
90°
rmo2010-001-008_a
3. Trace 2 lines parallel to the ground on the test
surface as follows:
LINES ON THE TES
TSURFACE
Line A 642 mm (25.3 in) above ground
Line B 732 mm (28.8 in) above ground
4. Select low beam.
5. Beam aiming is correct when the focus point
(brightest spot) of the headlight reflection is
within the marks.
1
2
A
B
rmo2010-001-302_b
TYPICAL HEADLIGHT REFLECTION ON TEST SURFACE
1. Ground
2. Focus point
A. 642 mm (25.3 in) above ground
B. 732 mm (28.8 in) above ground
CE Models (Low Beam)
NOTE: This verification is valid for either left-hand
or right-hand traffic regulations.
1. Set the rear suspension air pressure to 0 kPa
(0 PSI) using the manual ACS inflation valve lo-
cated under the seat.
rmo20
10-001-056_a
1. Manual ACS inflation valve
2. Position the vehicle in front of a test surface as
shown.
PREDELIVERY 2014-1 43 / 52

Can-Am Spyder RT Series Specifications

General

Transmission	6-speed semi-automatic with reverse
Rear Suspension	Swing arm with mono shock
Engine Type	Rotax 1330 ACE in-line 3-cylinder
Displacement	1330 cc
Front Suspension	Double A-arm with anti-roll bar
Front Brakes	2 x 270 mm discs with Brembo 4-piston fixed calipers
Rear Brake	270 mm disc with single-piston caliper
Power	115 hp (86 kW)
Torque	96 lb-ft (130 Nm)
Fuel System	Electronic Fuel Injection
