C&S CSPF-100 - Physical Specifications and Mounting; Dimension Details; Panel Cutout Information; Back View and Terminal Layout

Panel cut out
138.0
138.0
Back view of CSPF
All the dim. are in mm (Gen. Tol.: + 1.0mm)
FrontView
SideView
144.0
144.0

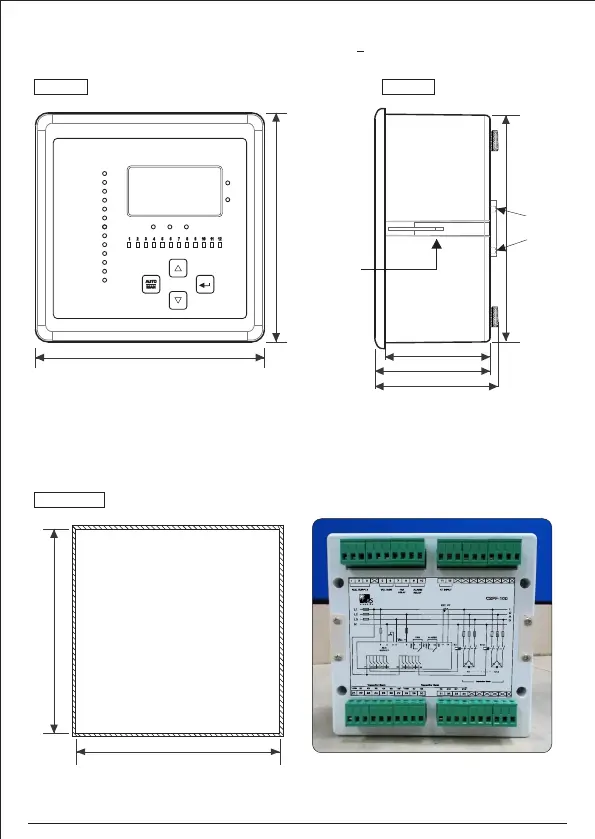

Dimension Details
Mounting
Clamp
Clamp fixing screw
69.0
80.0
63.0
137.0
