Removal of the lower and upper burner and installation of the injector to the
gas oven
Removal of the upper burner:
With the help of a screw driver, remove the screw as shown in gure 3.
As shown in gure 4, remove the burner from its place by pulling it to
yourself. As shown in gure 5, remove the injector in the bearing with a
socket wrench. In order to re-place the burner, apply the removal process
reversely.
Removal of the lower burner:
The lower burner door has been xed with two screws. As shown in
gure 6, remove it with the help of a screw driver. Remove the door by
pulling upwards as shown in gure 7. Remove the burner from its place
by pulling it to yourself as shown in gure 8. As shown in gure 9, remove
the injector in the bearing with a socket wrench. In order to replace the
burner, apply the removal process reversely.

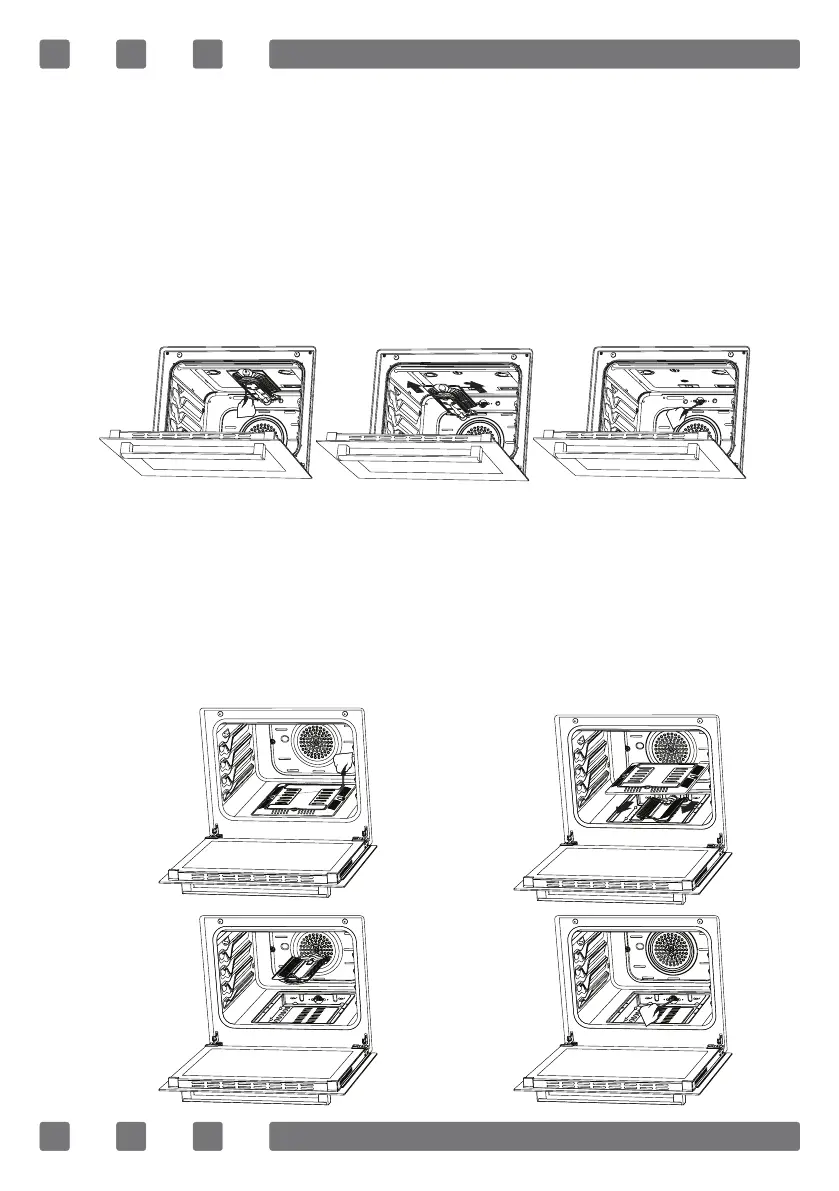

Figure 5
Figure 3 Figure 4
Figure 8
Figure 9
Figure 6
Figure 7
