7. TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
II. STANDARDS AND ADJUSTMENTS
A. Image-Related Parts
1 Non-Image Width
The non-image width on copies made in Direct
with original detection OFF must be as follows:
Leading edge: 2.5 ±1.5 mm (2.5 ±2.0 mm)
Left/right: 2.0 ±1.0 mm (2.0 ±1.5 mm)
The value in parentheses refers to the second
side of a two-sided copy.
02468101214161820
2.5±1.5mm

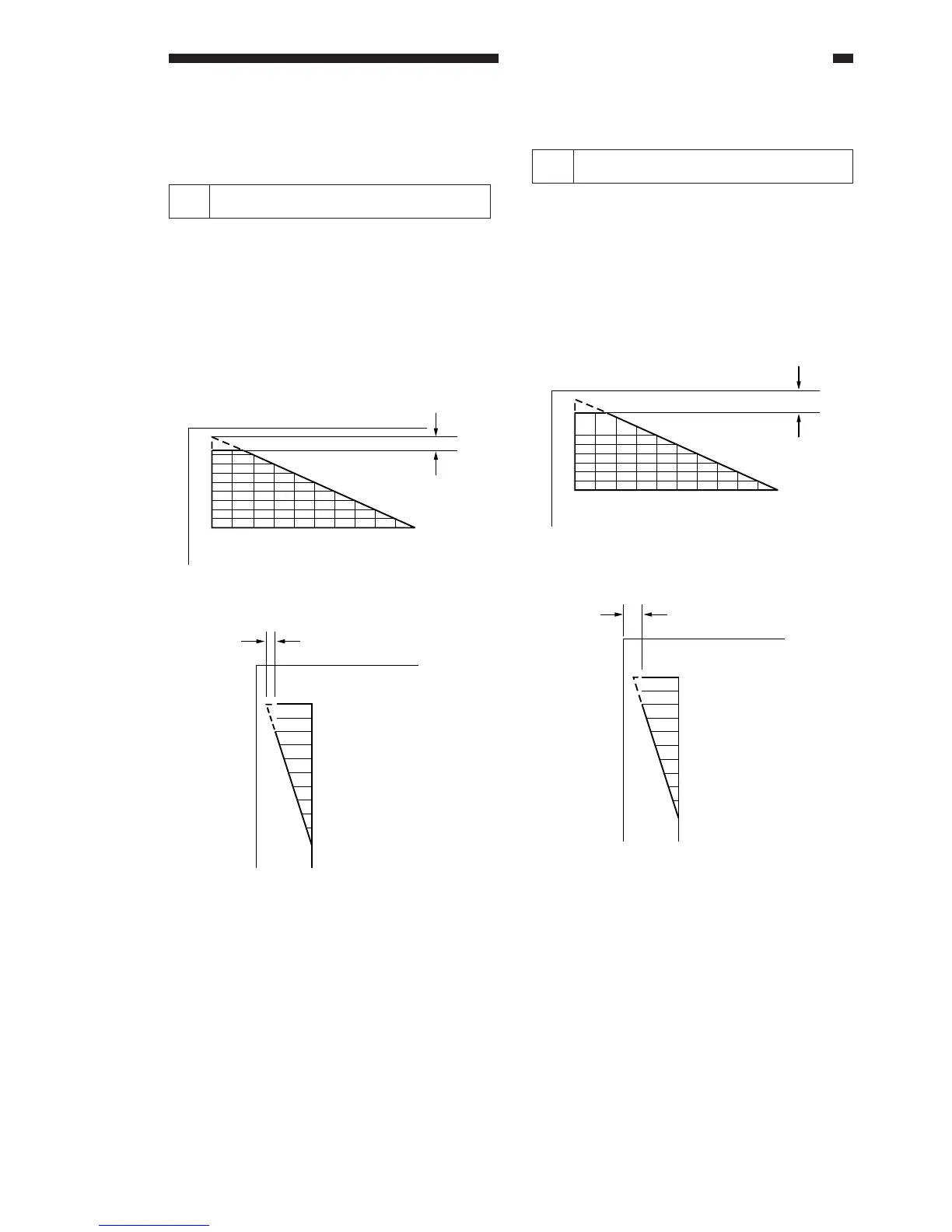

Figure 7-201 Leading Edge Non-Image Width
0
2
4
6
8
10
2.0±1.0mm
Figure 7-202 Left/Right Non-Image Width
2 Image Margin
The image margin on copies made in Direct
with original detection OFF must be as follows:
Leading edge: 2.5 ±1.5 mm (2.5 ±2.0 mm)
Left/right: 2.0 ±1.0 mm (2.0 ±1.5 mm)
The value in parentheses refers to the second
side of a two-sided copy.
02468101214161820
2.5±1.5mm
Figure 7-203 Leading Edge Margin
0
2
4
6
8
10
2.0±1.0mm
Figure 7-204 Left/Right Image Margin
