Canon AE-1 PROGRAM User Manual

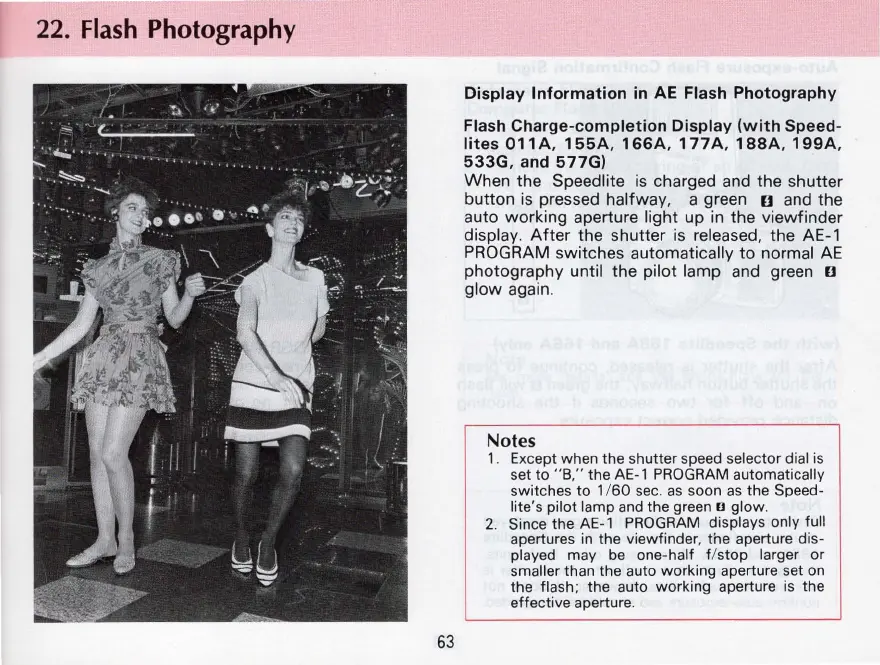

22. Flash Photography
63
Display Information in AE Flash Photography
Flash Charge-completion Display (with Speed-
lites 011 A, 155A, 166A, 177 A, 188A, 199A,
533G, and 577G)
When the Speed lite is charged and the shutter
button
is pressed halfway, a green 11 and the
auto working aperture light up
in the viewfinder
display.
After the shutter is released, the AE-l
PROGRAM switches automatically to normal AE
photography until the pilot lamp and green 11
glow again.
Notes
1. Except when the shutter speed selector dial is
set to "B," the AE-1 PROGRAM automatically
switches
to 1/ 60 sec. as soon as the Speed-
lite's pilot lamp and the green (J glow .
2. Since the AE-1 PROGRAM displays only full
apertures in the viewfinder, the aperture dis-
played may be one-half fl stop larger or
smaller than the auto working aperture set on
the
flash; the auto working aperture is the
effective aperture.

Canon AE-1 PROGRAM Specifications

General

Lens Mount	Canon FD
Viewfinder Coverage	94%
Film Rewind	Manual
Flash	Hot shoe
Flash Sync	1/60 sec
Type	35mm SLR
Shutter Speed	2 sec to 1/1000 sec
Exposure Modes	Manual
Metering	Center-weighted average
ISO Range	ISO 12 to 3200
Viewfinder	Pentaprism
Focusing Screen	Fixed
Film Advance	Manual
Battery	4LR44
Dimensions	141 x 87 mm x 48 mm
Weight	575g
Shutter	Focal-plane
