Canon CINEMA EOS SYSTEM - SG-1 Shoulder Style Grip Unit

SHOOTING STYLES AND CONFIGURATION
49
EN
SG-1 Shoulder Style Grip Unit
Mount the grip unit on the rods of the optional SU-15 Shoulder Support Unit (0 46) to control the lens
during ENG-style hand-held shooting. When the shoulder-style grip is connected to the LENS terminal,
you can use the following controls on the grip: REC button to start/stop recording, joystick for menu
operation, aperture/zoom controls (with compatible lenses), and one assignable button.

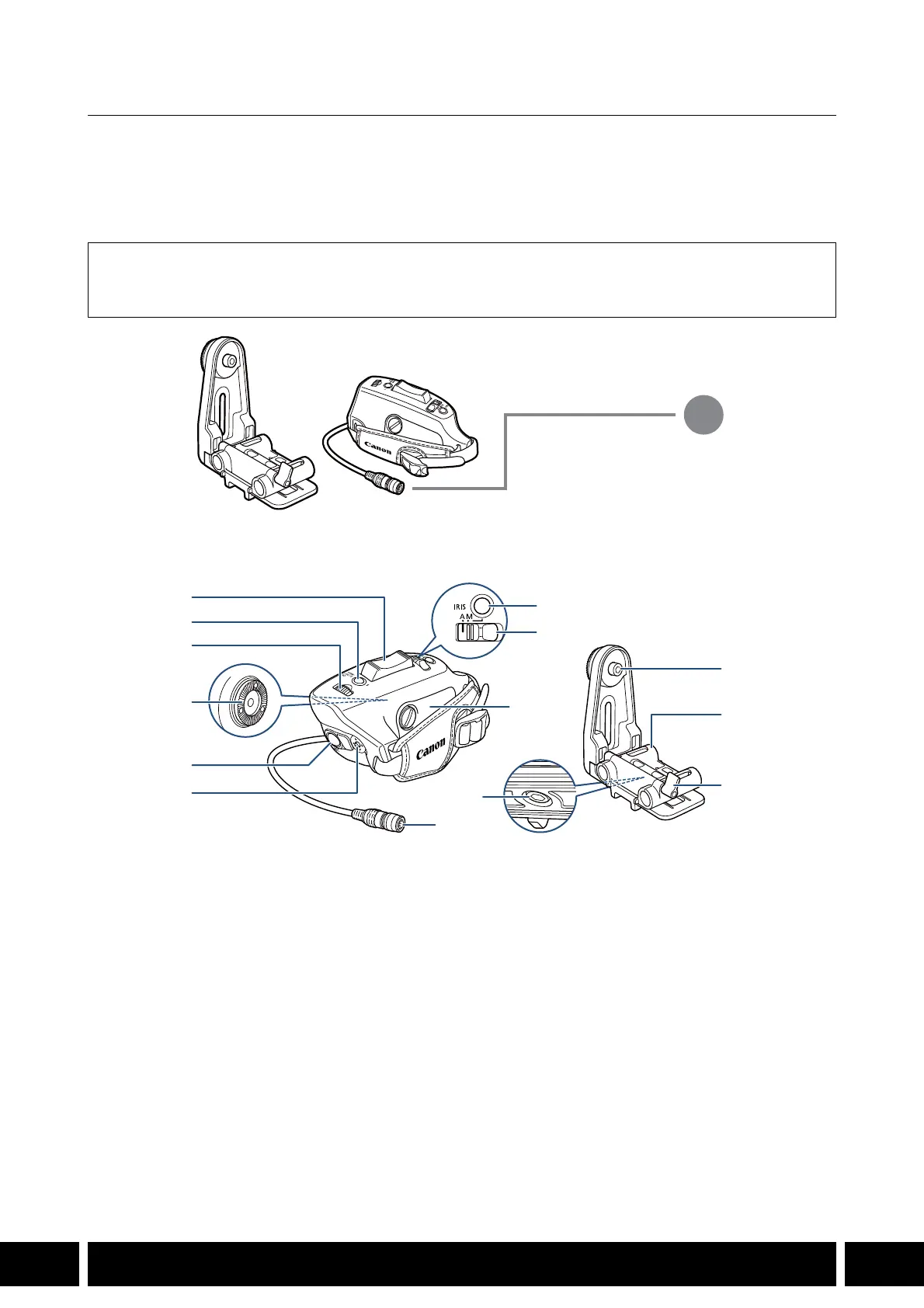

Names of Parts
Supplied Accessories
 Grip connecting arm
 Hex wrench for M6 bolts
1 Grip zoom rocker
• Press gently for a slow zoom; press harder
for faster zooms.
2 ONE-SHOT AF (focus automatically once)
button/Assignable button Grip SG-1: 1
3 Grip control dial
4Rosette
• Compliant with ARRI rosettes.
5 REC (recording) button
6Joystick
7 IRIS (aperture control) button
8 IRIS (aperture control) switch
9 Cable compartment cover
10 0.64 cm, 1/4" hex socket head bolt
11 12-pin interface cable
12 M6 hex socket head bolt
13 Grip connecting arm
14 Grip connecting arm screw
LENS terminal
(connect directly)
1
7
8
9
10
12
13
14
11
2
3
4
5
6
