SU-15 Shoulder Support Unit
Attach the shoulder support to the camera to use it for ENG-style hand-held shooting. It features rods for
additional accessories and an adjustable shoulder pad for optimal balance.

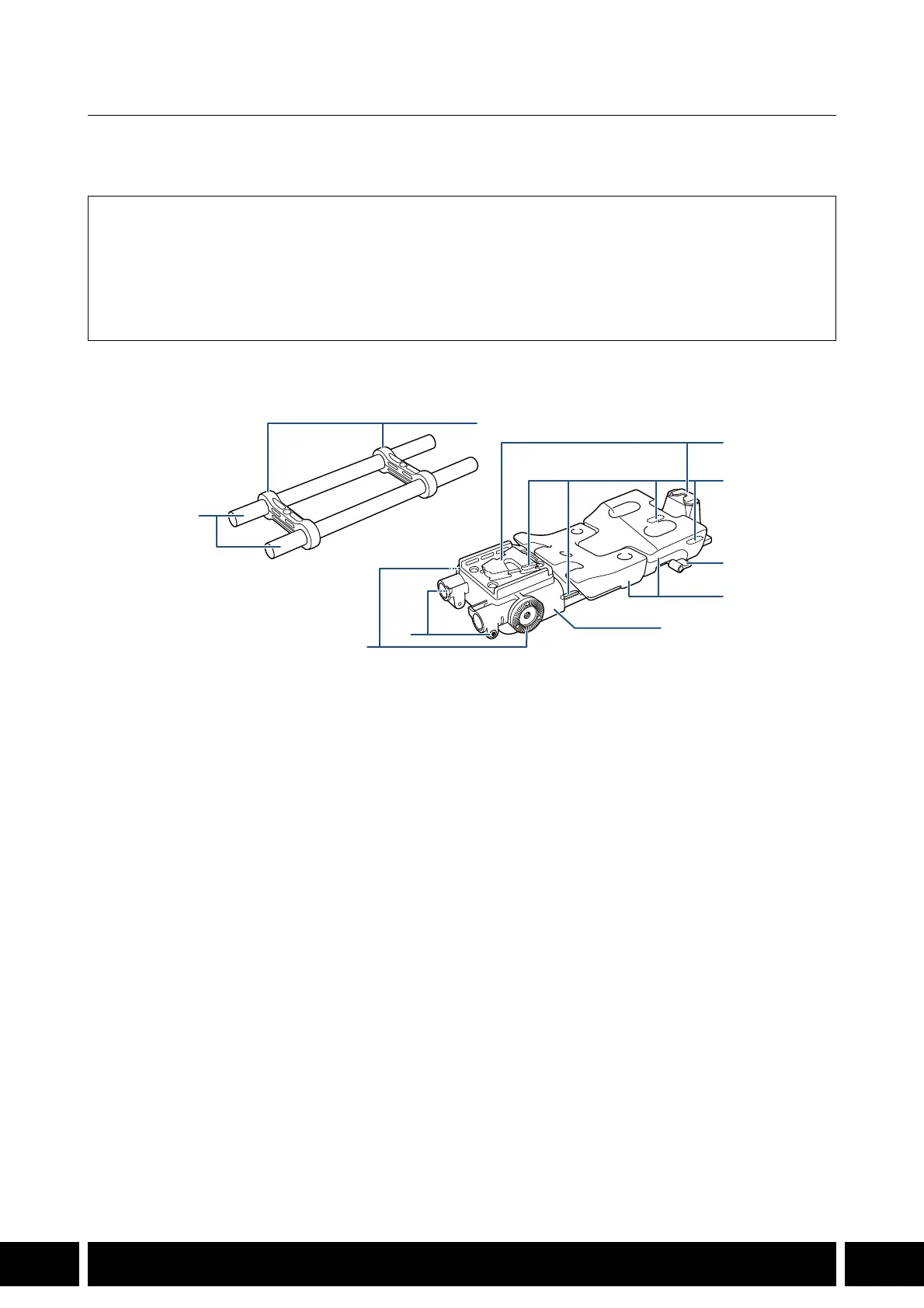

Names of Parts
Supplied Accessories
 ∅ 15 mm rods (x2)
 Rod stoppers (x2)
 M4 hex socket head bolts (x2)
 0.64 cm, 1/4" hex socket head bolts (x4)
 Bolt retainers (x4)
1 ∅ 15 mm rod
• Compliant with ARRI’s Lightweight Support.
2Rod clamp
3Rosette
• Compliant with ARRI rosettes.
4 Hex socket head bolt (M4)
5 Tripod base
6 Camera mount through-holes
7 Shoulder pad screw
8 Shoulder pad
9 Shoulder support
9
2
1
8
7
6
5
3
4
