ADDED FUNCTIONALITY AND LENS COMPATIBILITY
25
EN
EU-V1 Expansion Unit 1
This expansion unit offers additional terminals that add Genlock synchronization, advanced remote control
(circular 8-pin jack) and wired network (Ethernet) functionality to the camera.

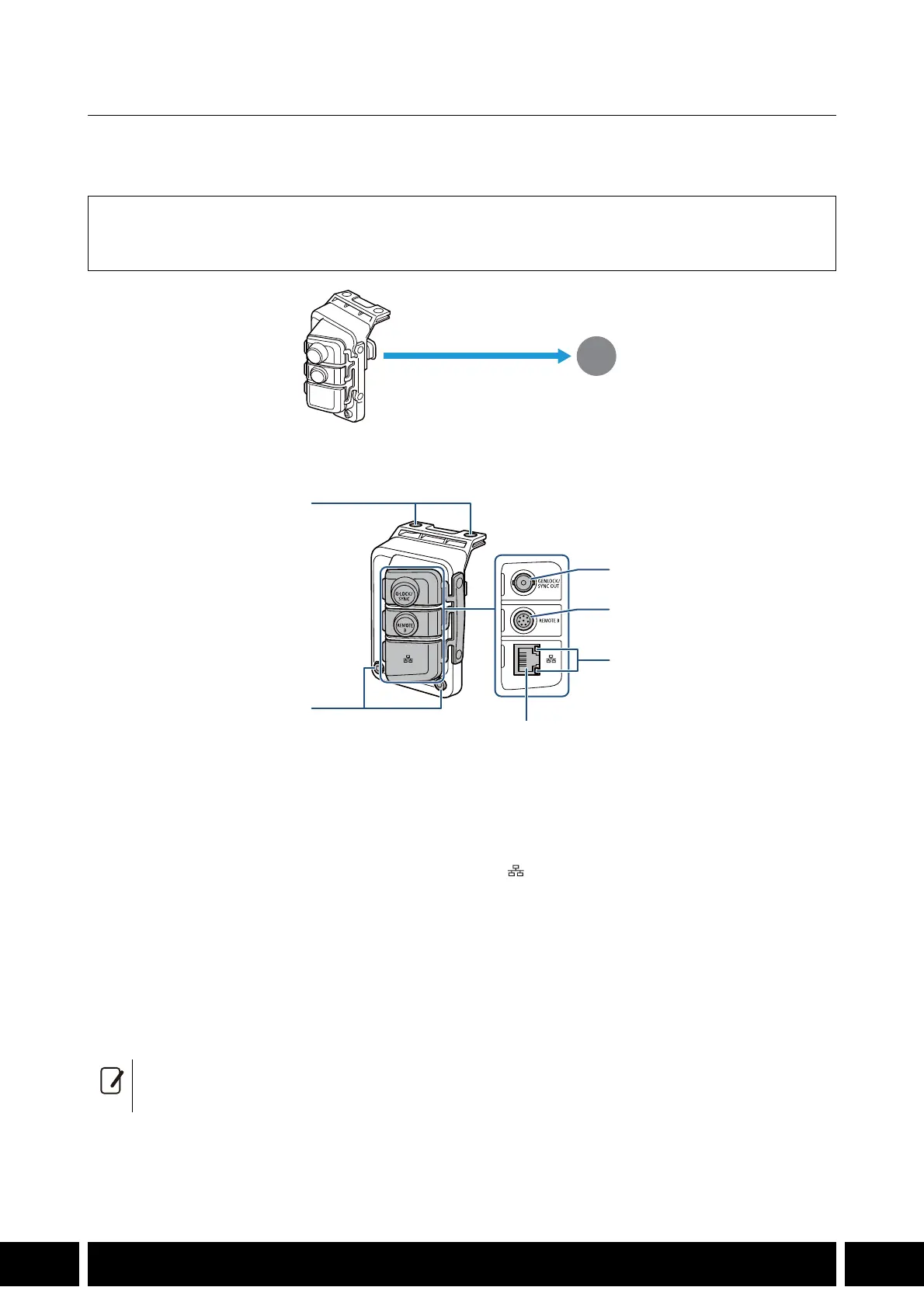

Names of Parts
For details on the terminals’ functions and how to use them, see the instruction manual of the camera
being used.
Supplied Accessories
Connector cover
M4 hex socket head bolts (x2)
1 Screw holes for fixation bolts (x2)
2 Accessory fixation bolts (M4, x2)
3 G-LOCK/SYNC OUT (Genlock/
synchronization) terminal
• The terminal’s function (Genlock input/
reference signal output) is changed using the
menu. See the [System Setup] menu
settings’ table in the instruction manual of the
camera being used.
4REMOTE B terminal
• For connecting the optional RC-V100
Remote Controller.
5 Ethernet access indicator
6 (Ethernet) terminal
• You can remove all the terminals’ covers by removing the two screws fixing them in place with a
commercially available Phillips head (“crosshead”) screwdriver.
Expansion unit connector
(attach directly)
1
3
4
5
6
2
