b. Delivering to the Original Delivery Assembly
The original is moved to the original delivery assembly by the delivery reversing roller,
which rotates when the delivery reversal motor (M3) rotates in normal direction.

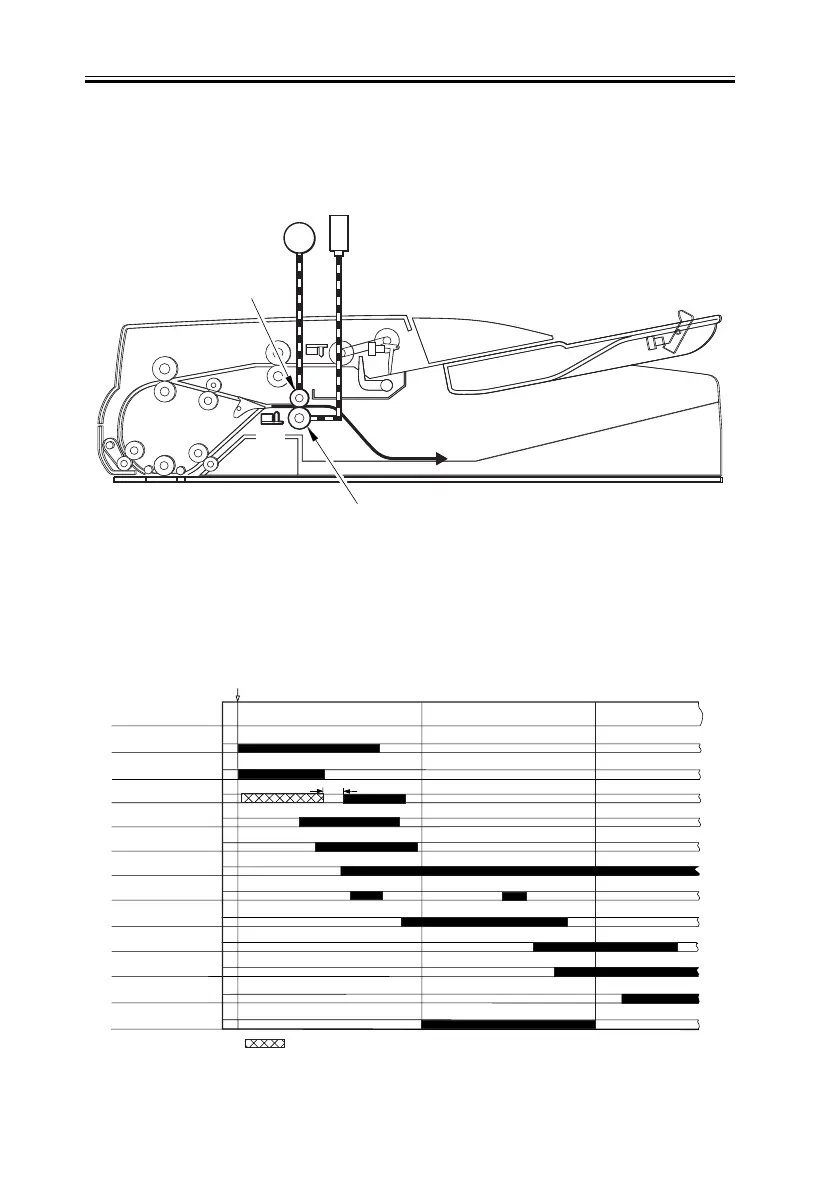

F-2-37
2.6.2 Sequence of Operation
0002-9872
Sequence of Operation (small-size, delivery)
F-2-38
PI9
SL2
M3
PI9
SL2
M3
Delivery reversal lower roller
Delivery reversal
upper roller
Start key ON
Original placement
sensor (PI5)
Pickup/Feed Reading
Pickup clutch
(CL1)
Separation rear
sensor (PI7)
Read sensor
(PI8)
Delivery reversal
sensor (PI9)
Pickup motor
(M1)
Feed motor
(M2)
Delivery reversal
motor (M3)
Locking motor
(M4)
Registration sensor
(PI1)
:Motor reversal rotation
Pressure solenoid
(SL2)
Image leading edge
signal
Arching
Reversal rotation
Normal rotation
Delivery
