Canon DADF-M1 - Feeder Cover

Chapter 3
3-4
F-3-7
3.2.4 Feeder Cover
3.2.4.1 Removing the
Front Cover
0004-0321
Refer to Procedure 3.2.1
3.2.4.2 Removing the
Feeder Cover
0004-0320

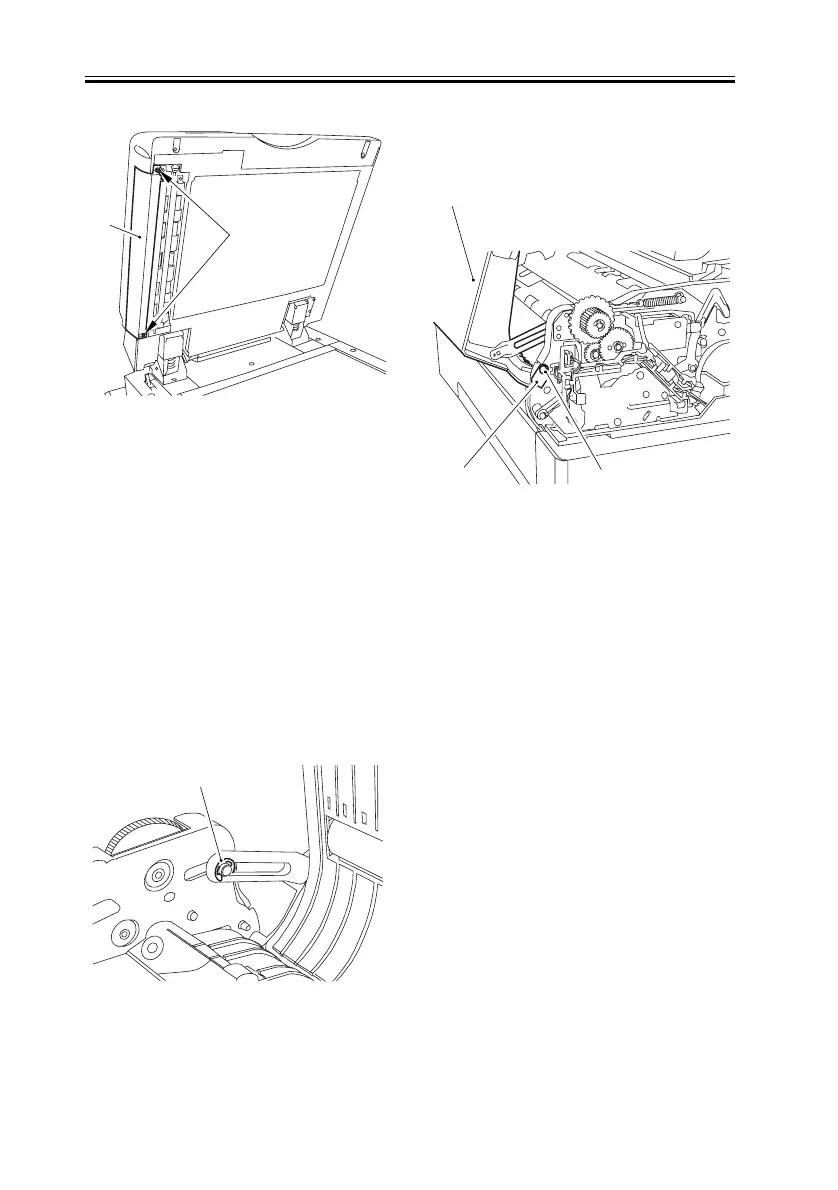

1) Remove the E-ring [1].
F-3-8
2) Remove the screw [1] and the
positioning pin[2]; then, detach the feeder
cover [3].
F-3-9
[1]
[2]
[1]
[1]
[2]
[3]
