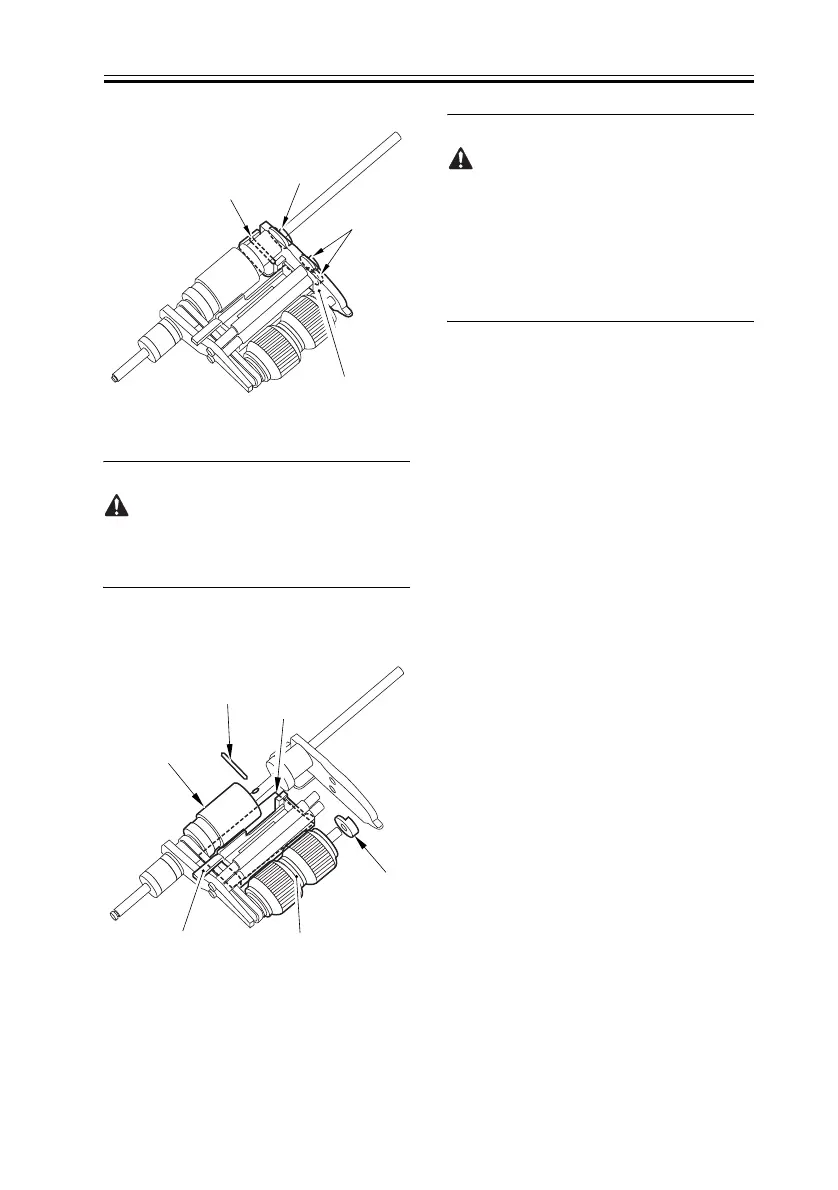

When detaching it, be sure not to lose
the pin [3], as it will come off upon
detachment.
2) Remove the feeder roller [4].
F-3-26
3) Remove the resin E-ring [5], and detach
the pickup roller [6].
Pay attention to the orientation of the
pickup roller and the feed roller.
Moreover, be sure that the separation front
guide [7] is mounted so that the wider side
of the sheet [8] is toward the pickup roller
side.
3.4.3 Separation Plate/
Separation Pad
3.4.3.1 Removing the
Inside cover
0003-3488
Refer to Procedure 3.4.1.1
3.4.3.2 Removing the
Pickup Roller Unit
0003-3489
Refer to Procedure 3.4.1
3.4.3.3 Removing the
Separation Plate and
the Separation Pad
0003-3486
1) Remove the 2 screws [1], and detach the
separation plate [2] and the separation pad
[3].
[1]
[1]
[3]
[2]
[3]
[8]
[7]
[4]
[6]
[5]
