Canon DADF-M1 - No.1 Registration Roller Roll; No.1 Registration Roller

Chapter 3
3-13
F-3-29
3.4.4 No.1 Registration Roller
Roll
3.4.4.1 Removing the
Front Cover
0003-7215
Refer to Procedure 3.2.1
3.4.4.2 Removing the
Feeder cover
0004-6031
Refer to Procedure 3.2.4
3.4.4.3 Removing the
No. 1 Registration
Roller Roll
0003-7220

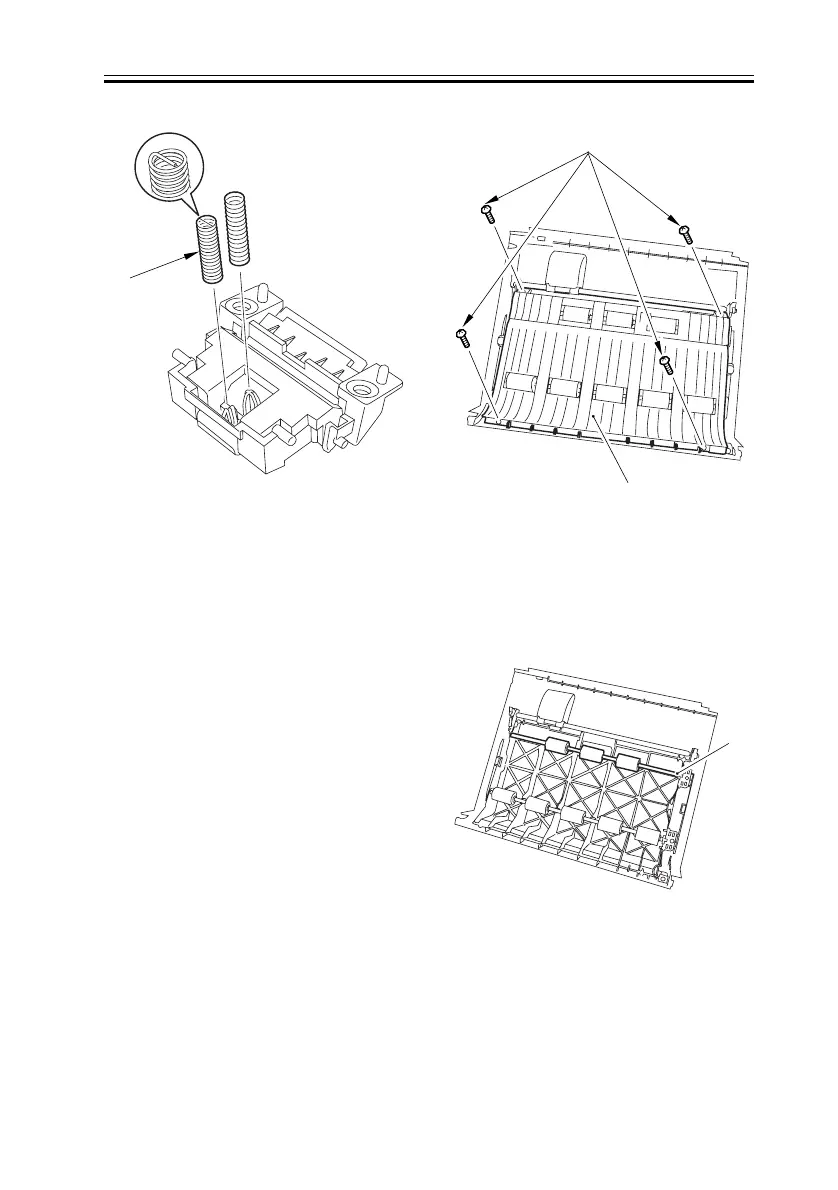

1) Remove the 4 screws [1], and detach the
cover.
F-3-30
2) Remove the screw [1], and detach the
support plate; then, detach the No. 1
registration roller roll [2].
F-3-31
[1]
[1]
[2]
[
1]
