Chapter 3
3-14
3.4.5 No.1 Registration Roller
3.4.5.1 Removing the
Front Cover
0003-7208
Refer to Procedure 3.2.1
3.4.5.2 Removing the
Rear Cover
0003-8035
Refer to Procedure 3.2.2
3.4.5.3 Removing the
Locking Motor
Harness Guide
0003-8036

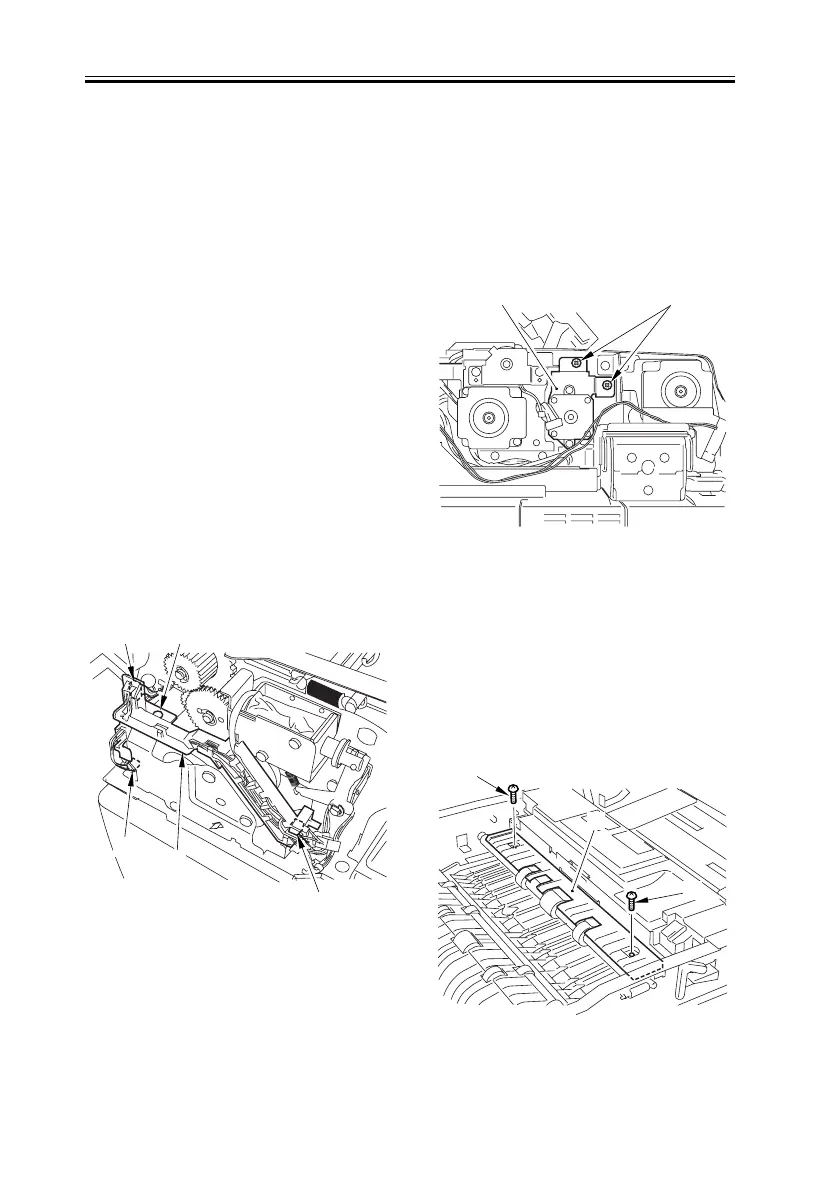

1) Remove the screw [1], and disconnect
the 3 connectors [2]; then, detach the
harness guide [3].
F-3-32
3.4.5.4 Removing the
Locking Solenoid
0003-8038
Refer to Procedure 3.5.3.2
3.4.5.5 Removing the
Delivery Reversal
Motor Unit
0004-0386
1) Remove the 2 screws [1], and detach the
delivery reversal motor unit [2].
F-3-33
3.4.5.6 Removing the
Pre-Registration
Guide
0004-0432
1) Remove the 2 screws [1], and detach the
pre-registration guide [2].
F-3-34
[1][2]
[2]
[2]
[3]
[1][2]
[1]
[1]
[2]
