Canon DADF-M1 - Delivery Reversal Motor; Pressurization Motor

Chapter 3
3-7
3.3.3.3 Removing the
Delivery Reversal
Motor
0003-7164

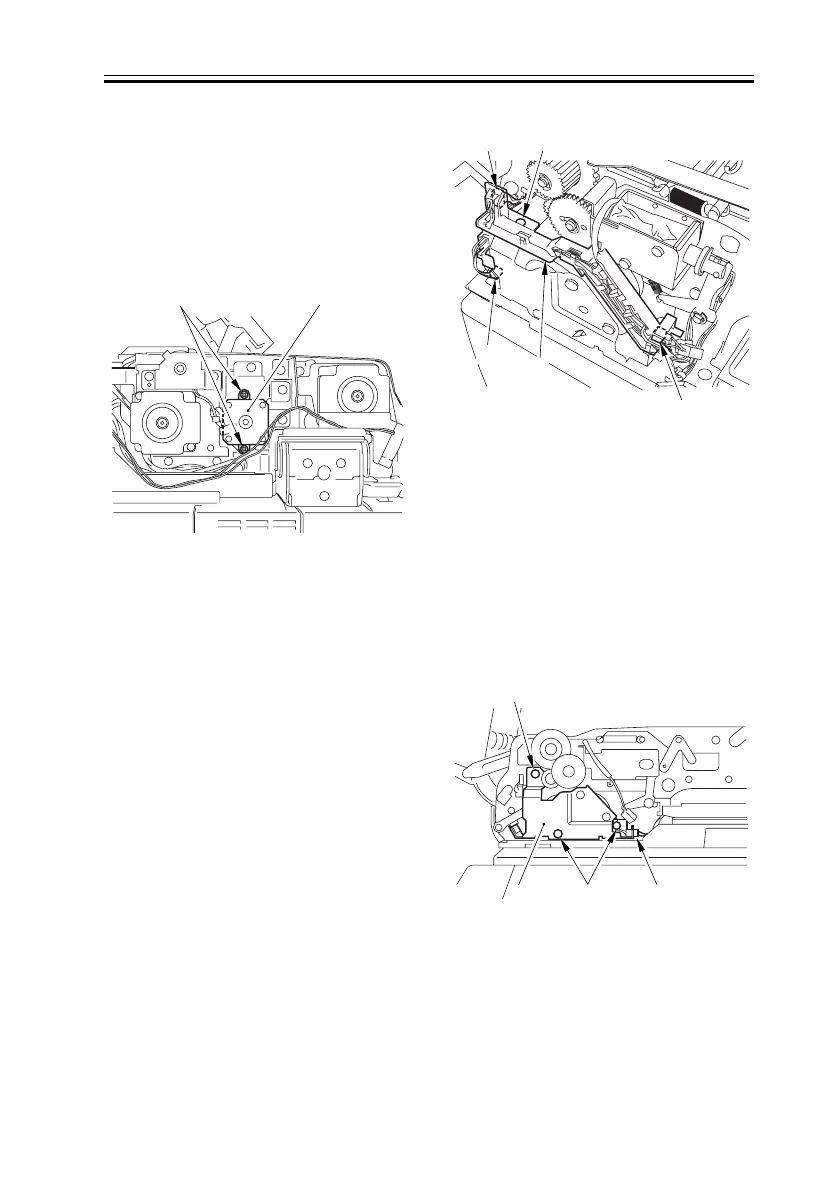

1) Remove the 2 screws [1], and detach the
delivery reversal motor [2].
F-3-15
3.3.4 Pressurization Motor
3.3.4.1 Removing the
Front Cover
0003-7174
Refer to Procedure 3.2.1
3.3.4.2 Removing the
Harness Guide (front)
0003-7176
1) Remove the screw [1], and disconnect
the 3 connectors [2]; then, detach the
harness guide [3].
F-3-16
3.3.4.3 Removing the
Locking Motor Drive
Unit
0003-7178
1) Remove the 3 screws [1], and
disconnect the connector [2]; then, detach
the locking motor drive unit [3].
F-3-17
[1] [2]
[1][2]
[2]
[2]
[3]
[1]
[1]
[2][3]
