Canon DADF-M1 - Page 89

Chapter 3
3-17

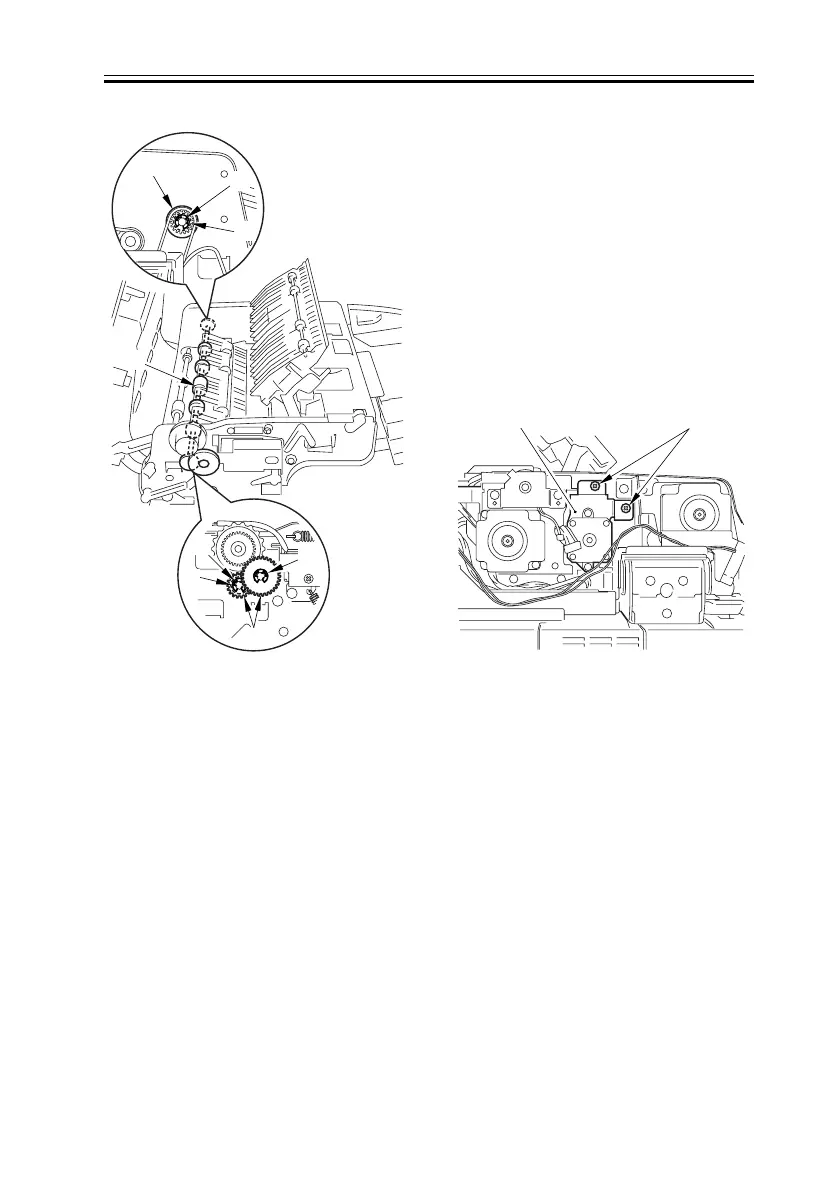

F-3-40
3.4.7.5 Removing the
Feed Motor Unit
0005-0409
Refer to Procedure 3.3.2
3.4.8 Delivery Reversing
Roller (upper)
3.4.8.1 Removing the
Front Cover
0003-7081
Refer to Procedure 3.2.1
3.4.8.2 Removing the
Rear Cover
0003-7138
Refer to Procedure 3.2.2
3.4.8.3 Removing the
Delivery Reversal
Motor Unit
0004-0464
1) Remove the 2 screws [1], and detach the
delivery reversal motor unit [2].
F-3-41
3.4.8.4 Removing the
Drive Unit
0004-0695
Refer to Procedure 3.3.2
3.4.8.5 Removing the
Delivery Reversal
Upper Roller
0003-5845
1) Remove the E-ring [1] and the bushing
[2].
[4]
[1]
[1]
[2]
[3]
[1]
[2]
[3]
[1][2]
