Canon imagePROGRAF iPF6200 - Carr�Age

Printer parts

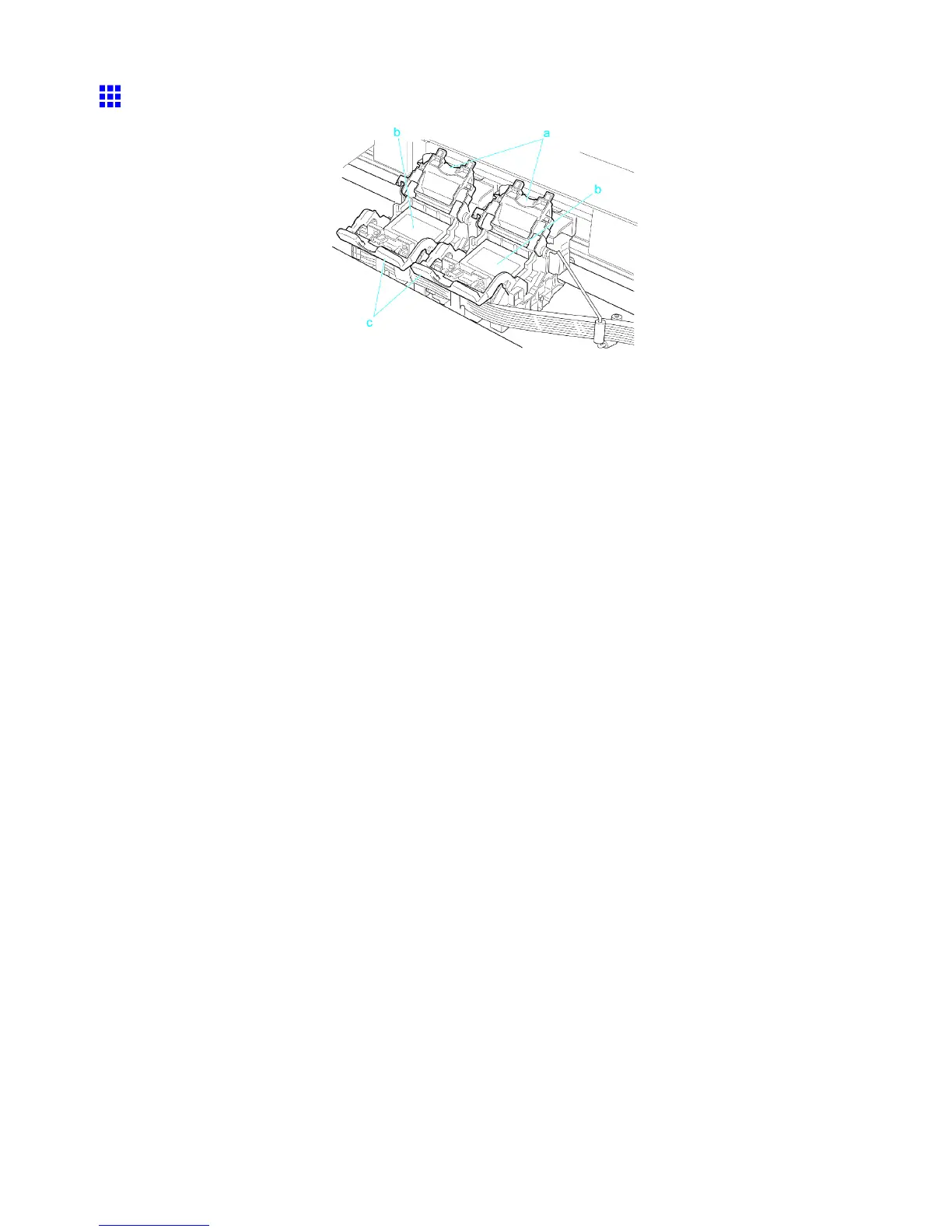

Carriage
a. Printhead Fixer Cover
Holds the Printhead in place. Do not open this part except during Printhead replacement.
b. Printhead
The printhead is equipped with ink nozzles. It serves a key role in printing.
c. Printhead Fixer Lever
Locks the Printhead Fixer Cover . Do not open this part except during Printhead replacement.
18 Printer Parts
