Canon iPF700 Series - Page 93

Chapter 4
4-7
F-4-12

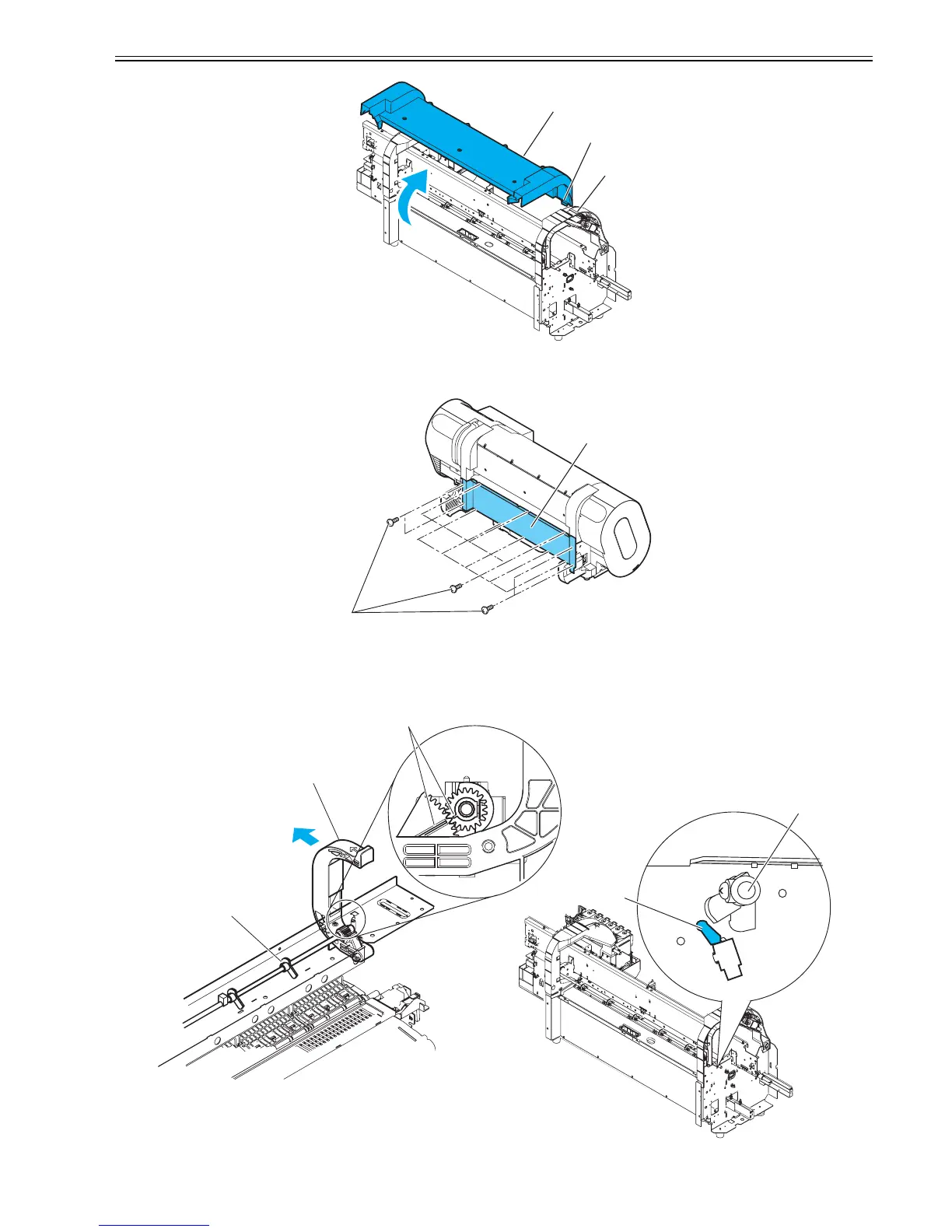

h. Rear cover
To detach rear cover [1], unscrew 12 screws[2] and remove the cover from the bottom side first.
F-4-13
i. Paper release lever
To remove paper release lever [1], do so with the pinch roller pressurized. In assembling paper release lever [1] into position, align the gear of paper release
lever [1] with the mark on the receiving gear (phase) [2].
F-4-14
[2]
[3]
[1]
[1]
[2]
[3]
[4]
[2]
[1]
[3]
