(11)Release the cable cover from its claw away from the frame.

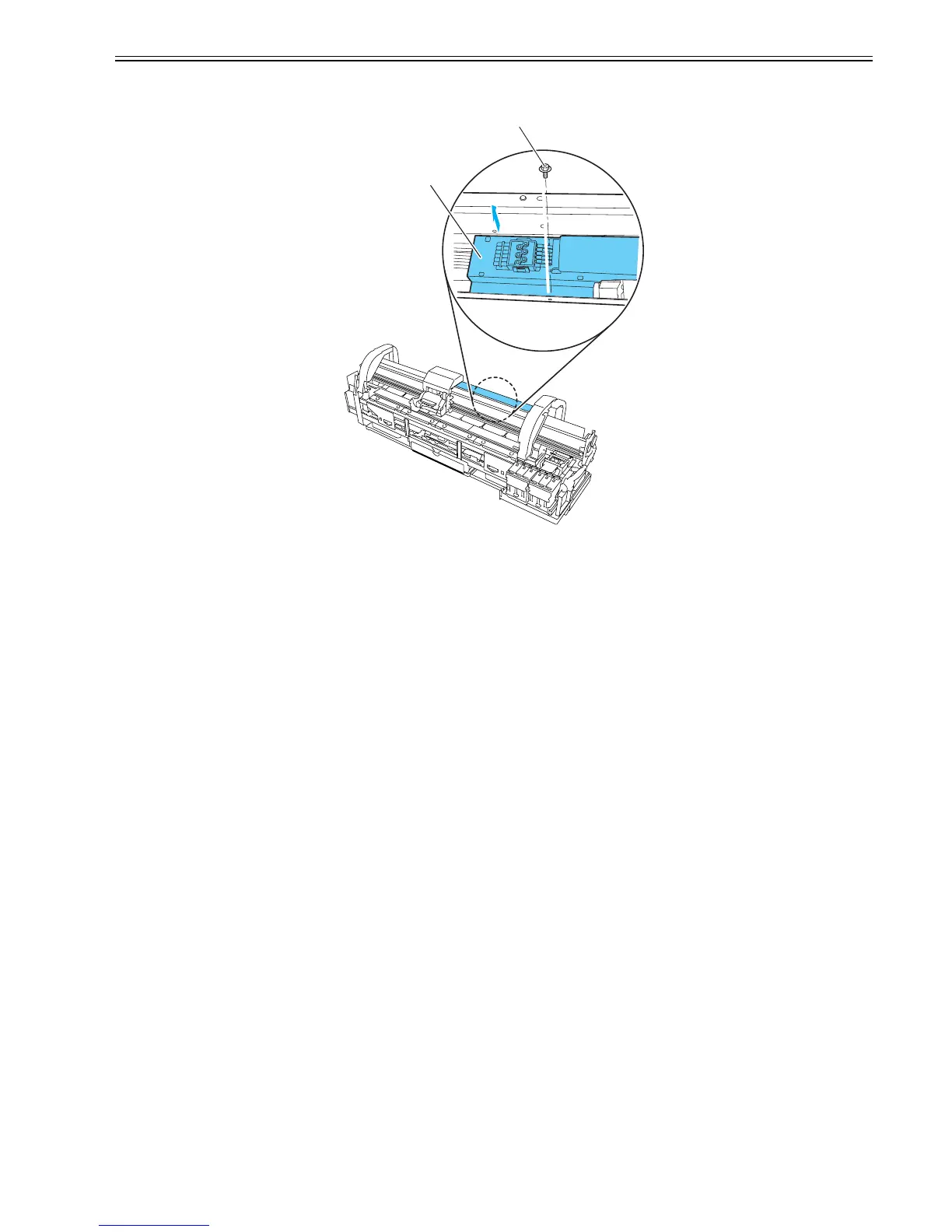

(12)Unscrew one screw[2] and remove the cable clamp[1] from the frame.
F-4-20
(13)Release the ink tube unit from the carriage.
b. Reassembling the ink tube unit
When the ink unit has been replaced, turn on the power switch without the printhead and the ink tanks mounted. Then, mount the printhead and ink tanks as
directed by message guidance to fill the tanks.
[1]
[2]
