Chapter 4
4-12
4.6.5 Flow of Image Data for the Fax Reception Function
0019-3133
iR3225 / iR3225N / iR3235 / iR3235N / iR3245 / iR3245N
The following is the flow of image data when the fax reception function is in use:

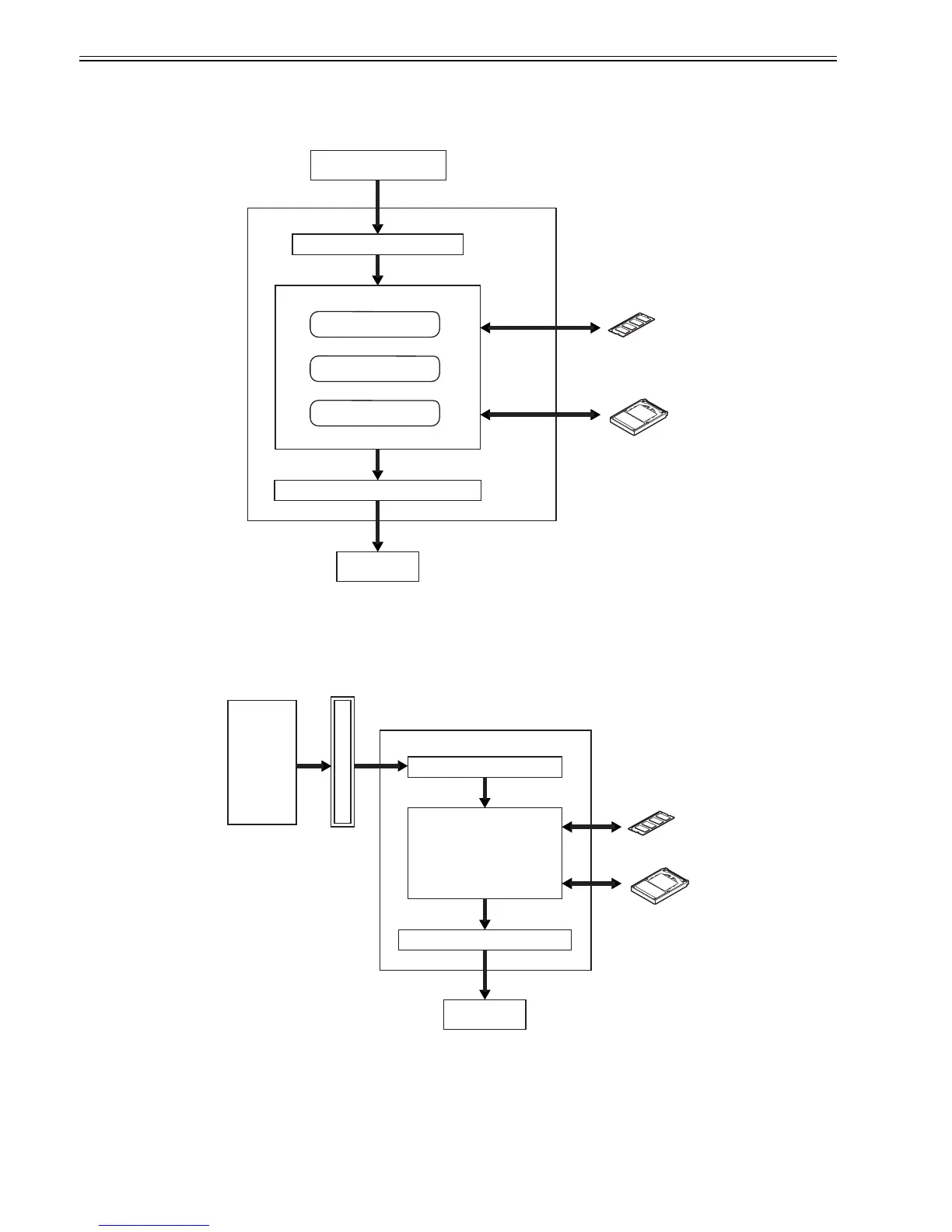

F-4-16
4.6.6 Flow of Image Data for the PDL Function
0019-3134
iR3225 / iR3225N / iR3235 / iR3235N / iR3245 / iR3245N
The following is the flow of image data when the PDL function is in use:
F-4-17
Image processing block for printer unit
Image processing block for fax
Super G3 Fax Board
Main controller PCB
Data compression
Data rotation
Data expansion
SDRAM
HDD
image PCB
Rendering processing block
Compression
/expansion
/editing block
Processing block for printer unit
image PCB
Main controller PCB
SDRAM
HDD
Ethernet
PDL

Canon iR3245 Series Specifications

General

Print Speed	Up to 45 ppm (A4)
Resolution	1200 x 1200 dpi
First Copy Time	3.9 seconds
Maximum Copy Size	A3
Duplex Printing	Automatic
Scanning Resolution	600 x 600 dpi
Interface	USB 2.0, Ethernet
Power Consumption	1.5 kW (Max)
Functions	Copy, Print, Scan
Warm-Up Time	30 seconds
Paper Capacity Standard	550 sheets
Network Connectivity	Ethernet (100Base-TX/10Base-T)
Memory	512 MB (Standard)
Hard Disk Drive	Optional 40 GB
Operation Panel	5.7-inch QVGA
Paper Sizes	A3, A4, A5, B4, B5
Paper Weights	64 to 128 gsm
PDL	PCL5e, PCL6, UFR II, PS3
Network Protocols	TCP/IP, IPX/SPX
