Canon iR3245 Series User Manual

Chapter 10
10-34

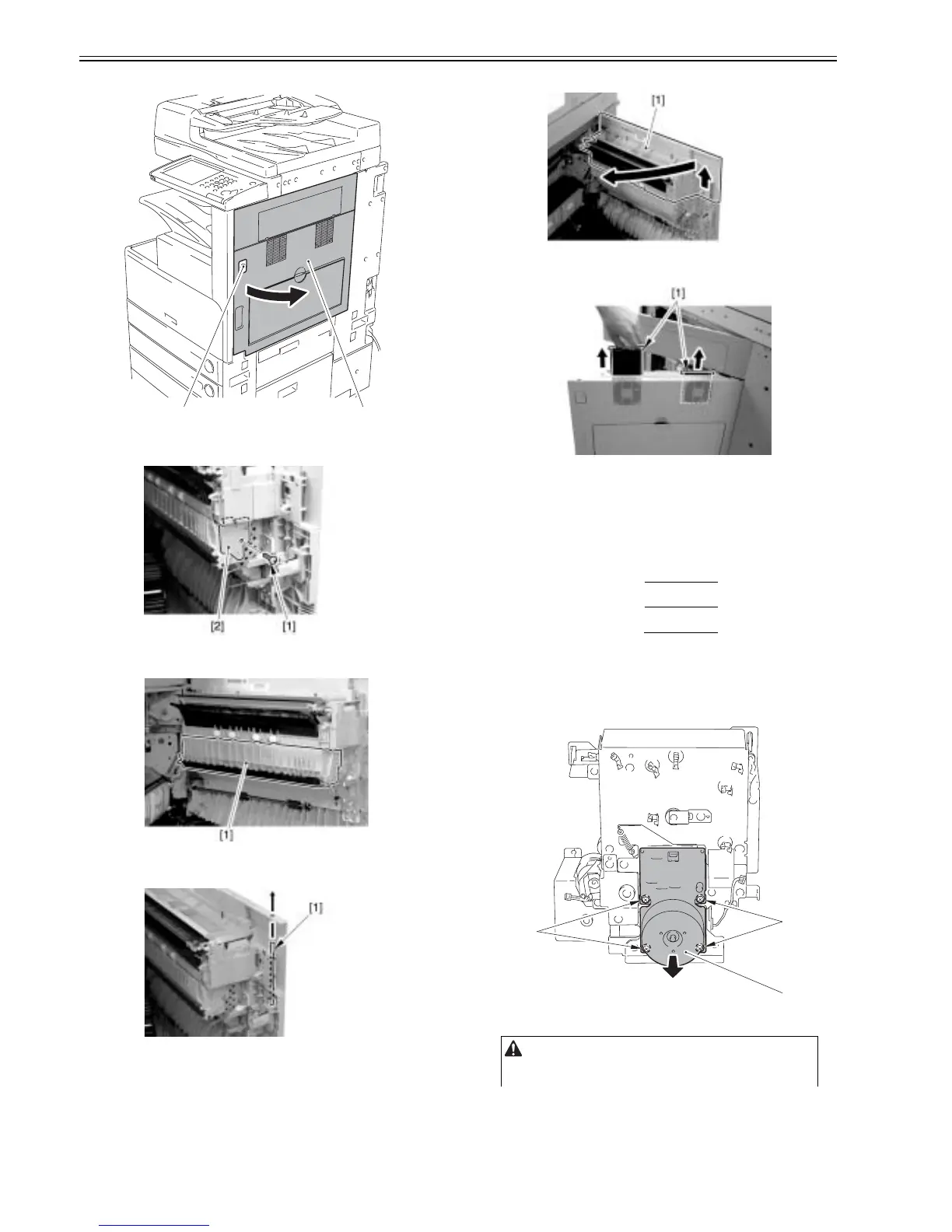

1) Press the release button [1] and open the right cover [2].
F-10-95
2) Remove the screw [1] and the fixing plate [2].
F-10-96
3) Remove the feeder guide [1].
F-10-97
4) Remove the pin [1].
F-10-98
5) Separate the 3 way unit [1] from the right cover.
F-10-99
6) Pull out the exhaust fan filter [1].
F-10-100
10.5.20 Motor of Main Drive Assembly
10.5.20.1 Before Removing the Main Motor (iR 3245/3235/
3230)
0018-9965
iR3235 / iR3235N / iR3245 / iR3245N
1) Remove the upper rear cover. (page 10-17)
Reference[Removing the
Upper Rear Cover]
2) Remove the lower rear cover. (page 10-17)
Reference[Removing the
Lower Rear Cover]
3) Remove the Main drive unit. (page 10-21)
Reference[Removing the
Main Drive Unit (iR 3245/3235/3230)]
10.5.20.2 Removing the Main Motor (iR 3245/3235/3230)
0018-9966
iR3235 / iR3235N / iR3245 / iR3245N
1) Remove the 4 screws [1], and remove the main motor [2].
F-10-101
[1] [2]
Points to Note During the Work
Be sure that the 2 timing belts [2] are fitted to the shaft [1] of the main motor
as shown.
[2]
[1]
[1]

Canon iR3245 Series Specifications

General

Print Speed	Up to 45 ppm (A4)
Resolution	1200 x 1200 dpi
First Copy Time	3.9 seconds
Maximum Copy Size	A3
Duplex Printing	Automatic
Scanning Resolution	600 x 600 dpi
Interface	USB 2.0, Ethernet
Power Consumption	1.5 kW (Max)
Functions	Copy, Print, Scan
Warm-Up Time	30 seconds
Paper Capacity Standard	550 sheets
Network Connectivity	Ethernet (100Base-TX/10Base-T)
Memory	512 MB (Standard)
Hard Disk Drive	Optional 40 GB
Operation Panel	5.7-inch QVGA
Paper Sizes	A3, A4, A5, B4, B5
Paper Weights	64 to 128 gsm
PDL	PCL5e, PCL6, UFR II, PS3
Network Protocols	TCP/IP, IPX/SPX
