Canon iR8500 Servise Manual

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500 REV.0 MAR. 2001
CHAPTER 5 MAINTENANCE AND INSPECTION
5-41

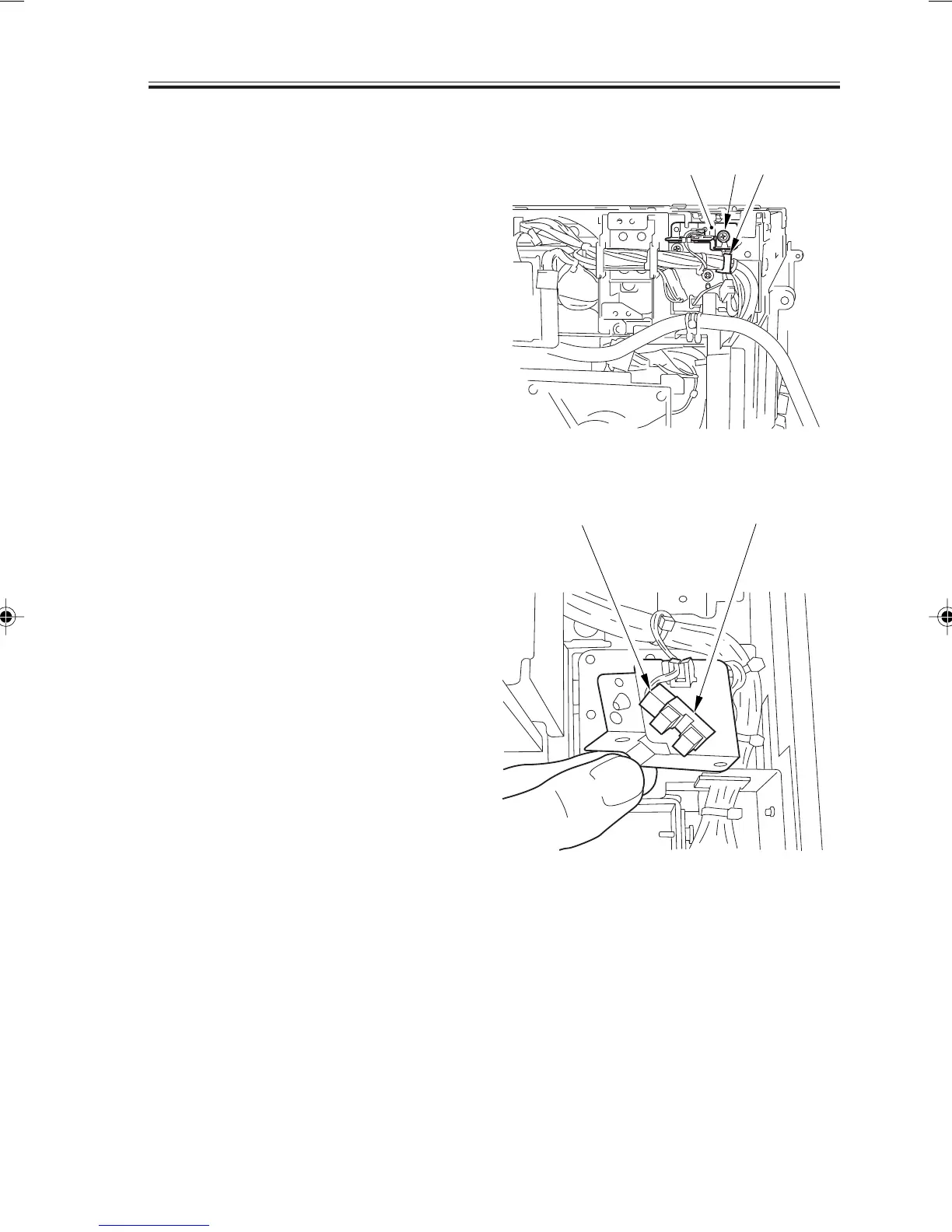

5.4.4 Removing the Copyboard Glass Sensor
1) Remove the rear cover and the rear up-
per cover.
2) Remove the voltage converter unit.
3) Free the harness from the wire saddle
[1]; then, remove the screw [2], and de-
tach the sensor mounting plate [3].
F05-504-07
4) Disconnect the connector [4], and de-
tach the copyboard glass sensor [5].
F05-504-08
[2] [1][3]
[4]
[5]
Chapter_05_2.p65 01/03/13, 14:4141

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
