Canon iR8500 Servise Manual

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500 REV.0 MAR. 2001
CHAPTER 5 MAINTENANCE AND INSPECTION
5-47

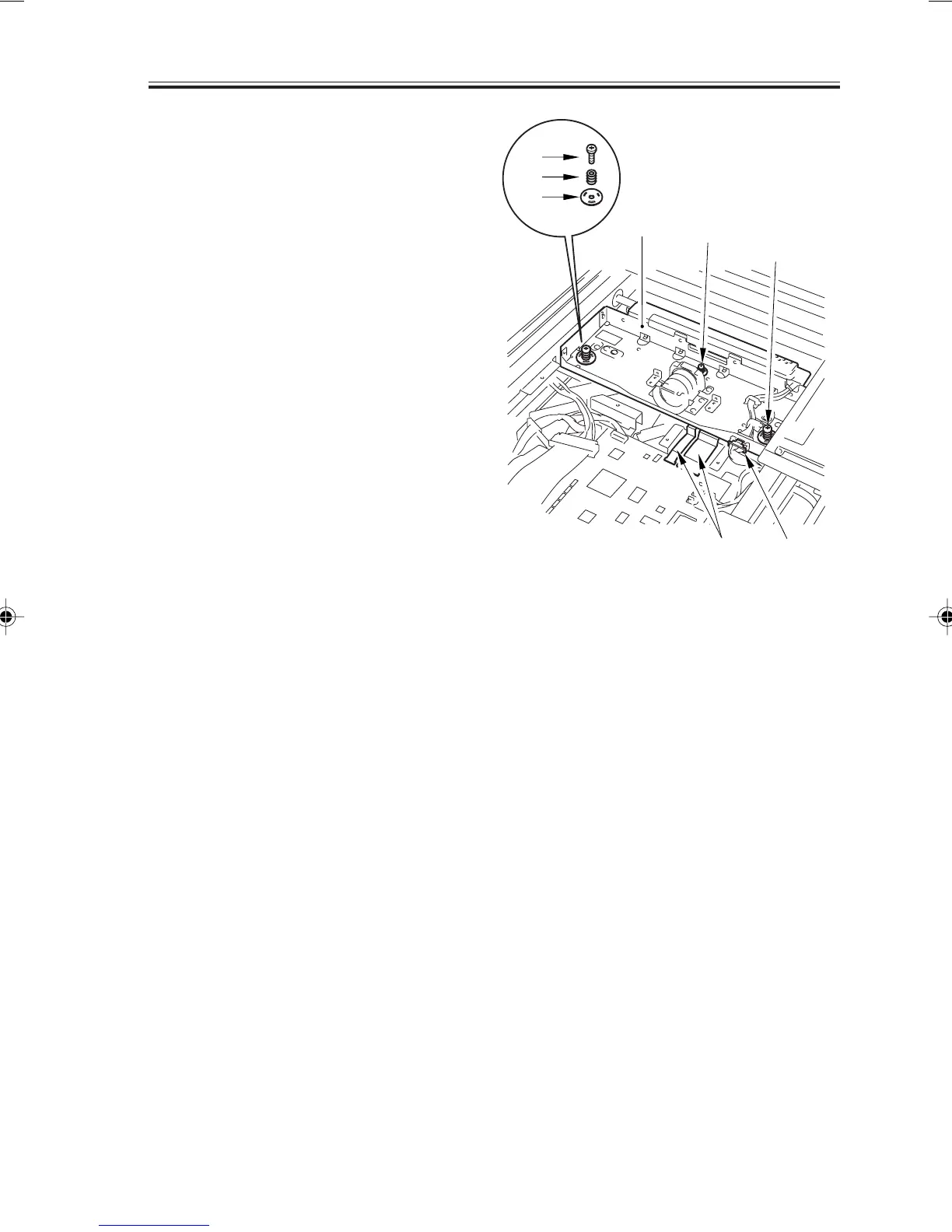

7) Remove the three fixing screws [11],
spring [12], and spring plates [13], and
disconnect the connector [14]. Then,
remove the two flat cables [15] from the
reader controller PCB, and detach the
CCD unit [16].
F05-505-05
5.5.2 After Replacing the CCD Unit
Chapter 6 “Troubleshooting”>2.7.4 “Af-
ter Replacing the CCD Unit”
[16]
[15] [14]
[11]
[12]
[13]
[11]
[12]
[13]
[11]
[12]
[13]
Chapter_05_2.p65 01/03/13, 14:4147

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
