Canon iR8500 Servise Manual

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500 REV.0 MAR. 2001
CHAPTER 5 MAINTENANCE AND INSPECTION
5-68

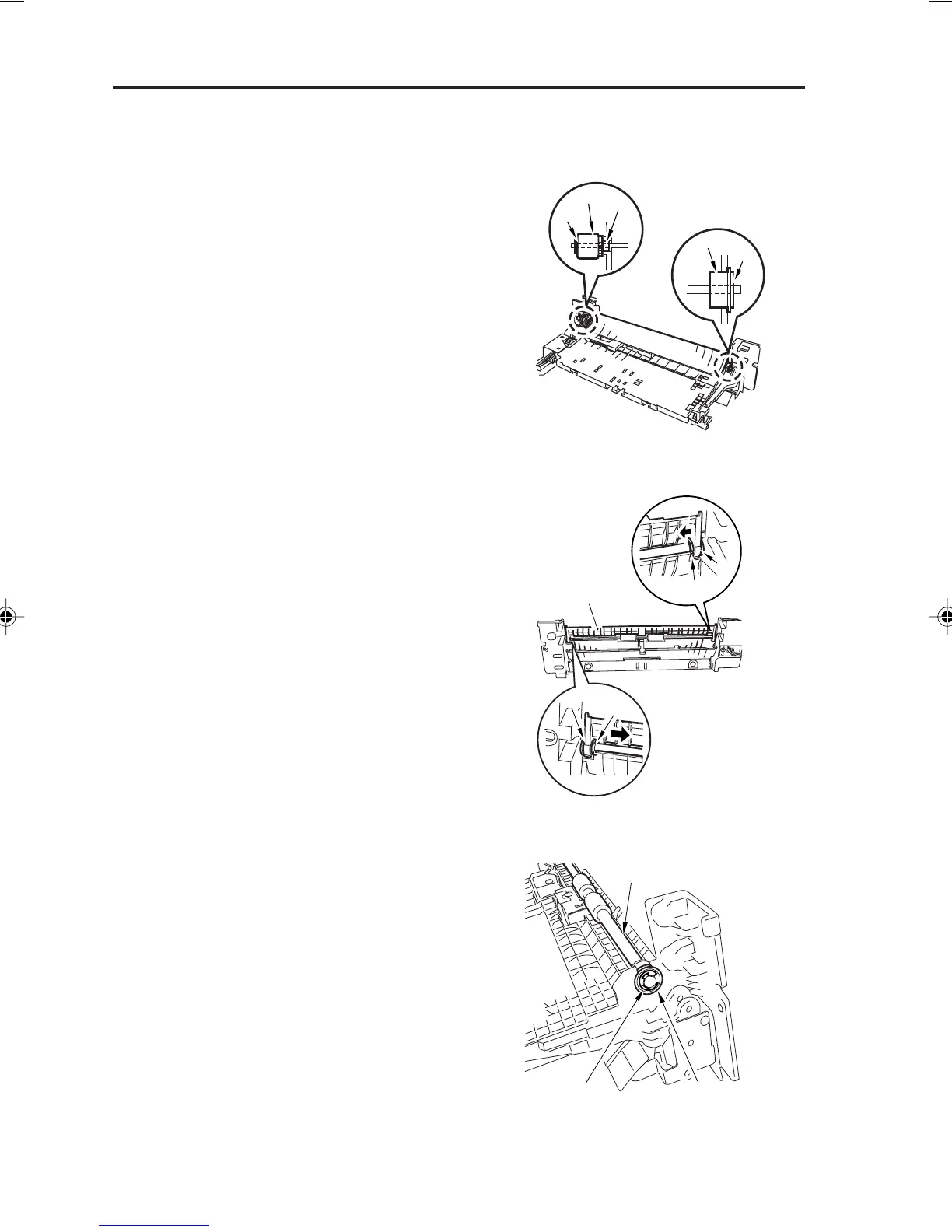

5.12 Vertical Path Roller Assembly
5.12.1 Removing the Vertical Path Roller 1/3/4
1) Remove the right deck/cassette pickup
assembly.
2) Remove the E-ring [1] and the bearing
[2] at the front; then, remove heater grip
ring [3], clutch [4], and bearing [5]
from the rear.
F05-512-01
3) Remove the E-ring [6] at the front and
the rear of the roller shaft; then, move
each bearing [7] toward the inside, and
detach the guide plate [8].
F05-512-02
4) Remove the E-ring [9] and then the
bearing [10]; thereafter, detach the ver-
tical path roller [11].
F05-512-03
[3]
[4]
[5]
[1]
[2]
[8]
[6]
[7]
[6]
[7]
[11]
[9]
[10]
Chapter_05_3.p65 01/03/13, 14:4268

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
