Canon iR8500 Servise Manual

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500 REV.0 MAR. 2001
CHAPTER 5 MAINTENANCE AND INSPECTION
5-123

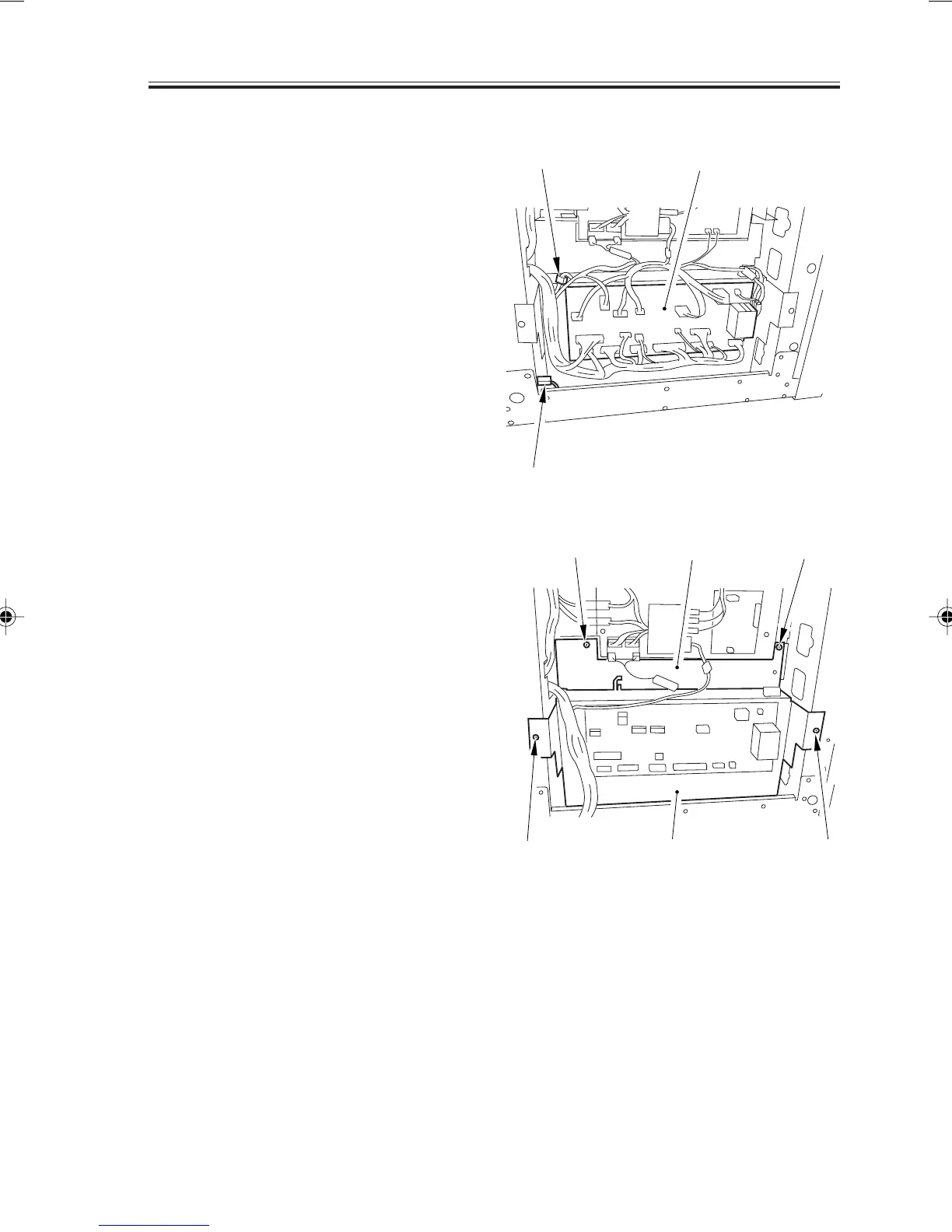

5.23 Power Supply Unit
1) Remove the left lower cover.
2) Disconnect the two connectors [1] and
the connector from the relay PCB [2].
F05-523-01
3) Remove the two screws [3], and detach
the cover plate [4]; then, remove the
two screws [5], and detach the power
supply unit [6].
F05-523-02
[1]
[1]
[2]
[3]
[3]
[4]
[5]
[5]
[6]
Chapter_05_4.p65 01/03/13, 14:43123

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
