Canon iR8500 Servise Manual

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500 REV.0 MAR. 2001
CHAPTER 5 MAINTENANCE AND INSPECTION
5-75

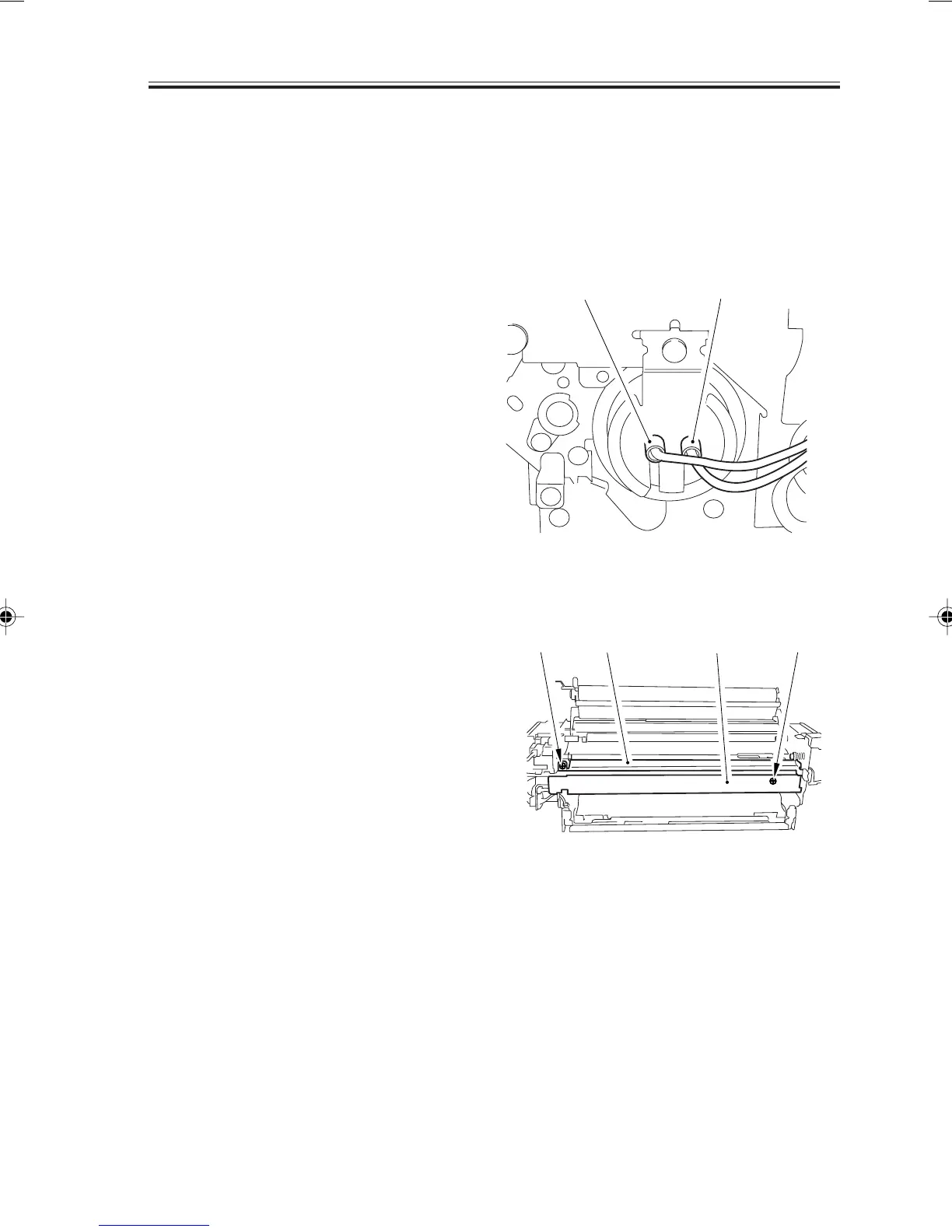

5.15.2 Mounting the Main/Sub Heater
The main/sub heater may be mounted by
reversing the steps used to remove it with
the following in mind:
a. Do not touch the surface of the heater.
b. For both heater, the side with the longer
harness on the end is toward the front.
c. Viewing from the front of the fixing as-
sembly, mount the main heater [1] on
the right and the sub heater [2] on the
left.
F05-515-04
5.15.3 Removing the Thermal Switch
1) Remove the fixing assembly from the
copier.
2) After removing the fixing web, remove
the two screws [1], oil pan [2], and fix-
ing harness cover [3].
F05-515-05
[2]
[1]
[1]
[1]
[3][2]
Chapter_05_3.p65 01/03/13, 14:4275

Canon iR8500 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Grayscale Halftones	256 Levels
Duplexing	Yes
Functions	Print, Copy, Scan
Maximum Original Size	11" x 17"
Copy Size	11 x 17 inches
Connectivity	USB, Ethernet
Operating System Compatibility	Windows, Mac
Supported Media Sizes	Letter, Legal
