Canon MP640 - Cable Wiring and Connection

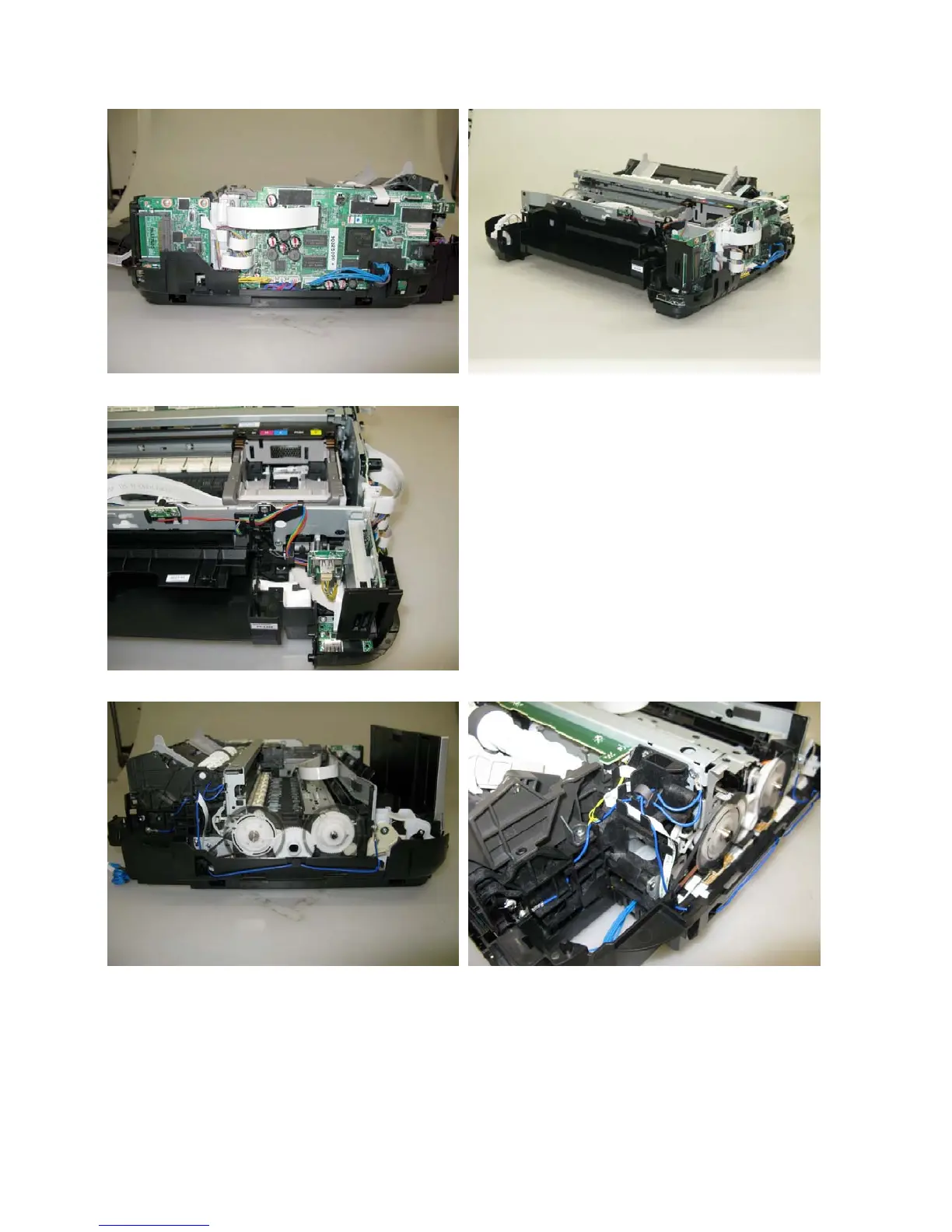

(3) Cable wiring and connection
1) Wiring on the right side
2) Wiring of the ink sensor cable and the inner cover open sensor cable
3) Wiring on the left side. Pass the ground cable through the hole to hook it on the side of the bottom case.
