Canon MP640 - Emblem Removal; Carriage Unlocking

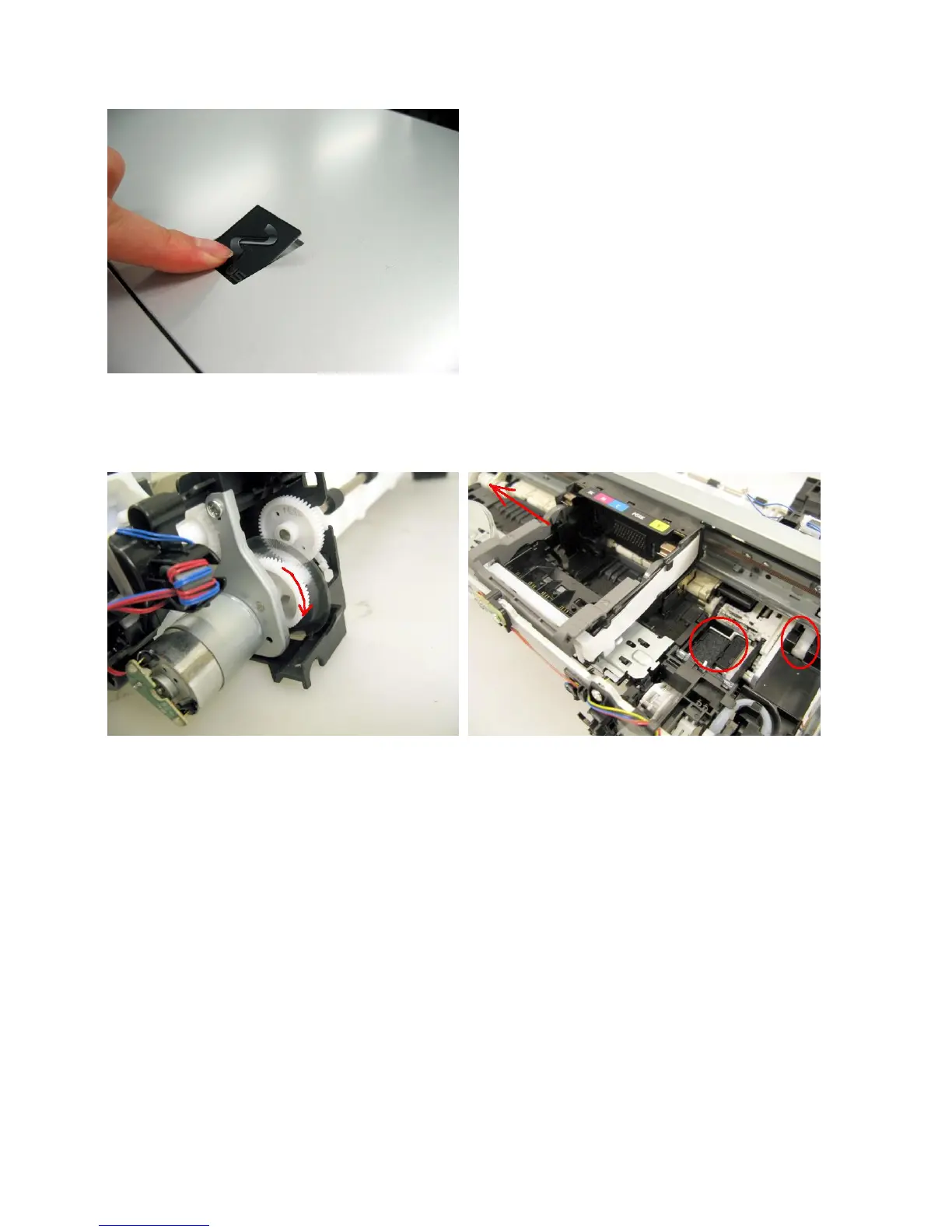

(4) Emblem removal
(5) Carriage unlocking
Push the emblem bottom to remove from the double-sided adhesive tape.
1) Rotate the APP motor drive gear toward the back of the machine to unlock the carriage.
Slide the carriage to the left (the opposite of the home position).
27 / 54
