Cansec MAP1 - LOCK OUTPUT AND MULTI-FUNCTION RELAY WIRING

MAP1 Page 15 of 31
Installation Manual June 2018 • Rev. 1.6
LOCK OUTPUT AND MULTI-FUNCTION RELAY WIRING
 Electric Strike Lock Wiring – Up To 6 Amp, 30VDC MAX
The Multi-Function (MF) relay is configured by the user through the host software.
This relay can be set to only one of the following options:
 Alarm Shunt – (factory default) Shunt the alarm system before opening lock.
 Door Held Open – Door has been left open.
 Forced Entry – Door opened without access-granted or exit-button-press event.
 Door Operator_All – Activated on all cards (Lock Opens first).
 Door Operator_HC – Activated on only Handicap cards (Lock Opens first).

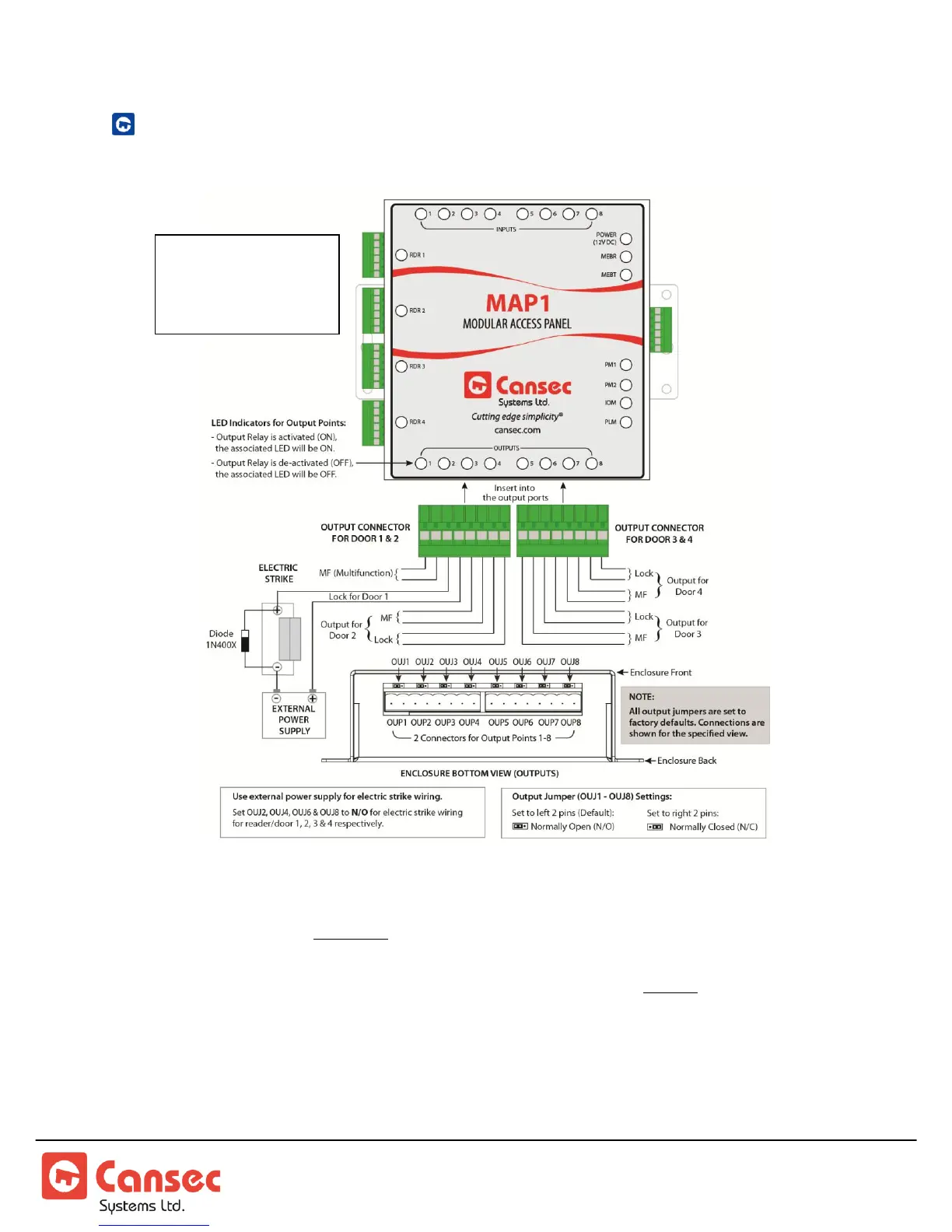

Figure 8
See Note 2 in
Appendix section for
6 Amp relay rating
