POWER CONNECTOR
Connections:
 METBA and METBB are for future use. The Shield from METBA and METBB
wire would be connected to METTAM.
 TAMPER allows for the connection of an external Enclosure Tamper Switch.
Note: The MAP1 has a Tamper MSJx-MicroShunt jumper to the right of this power
connector.

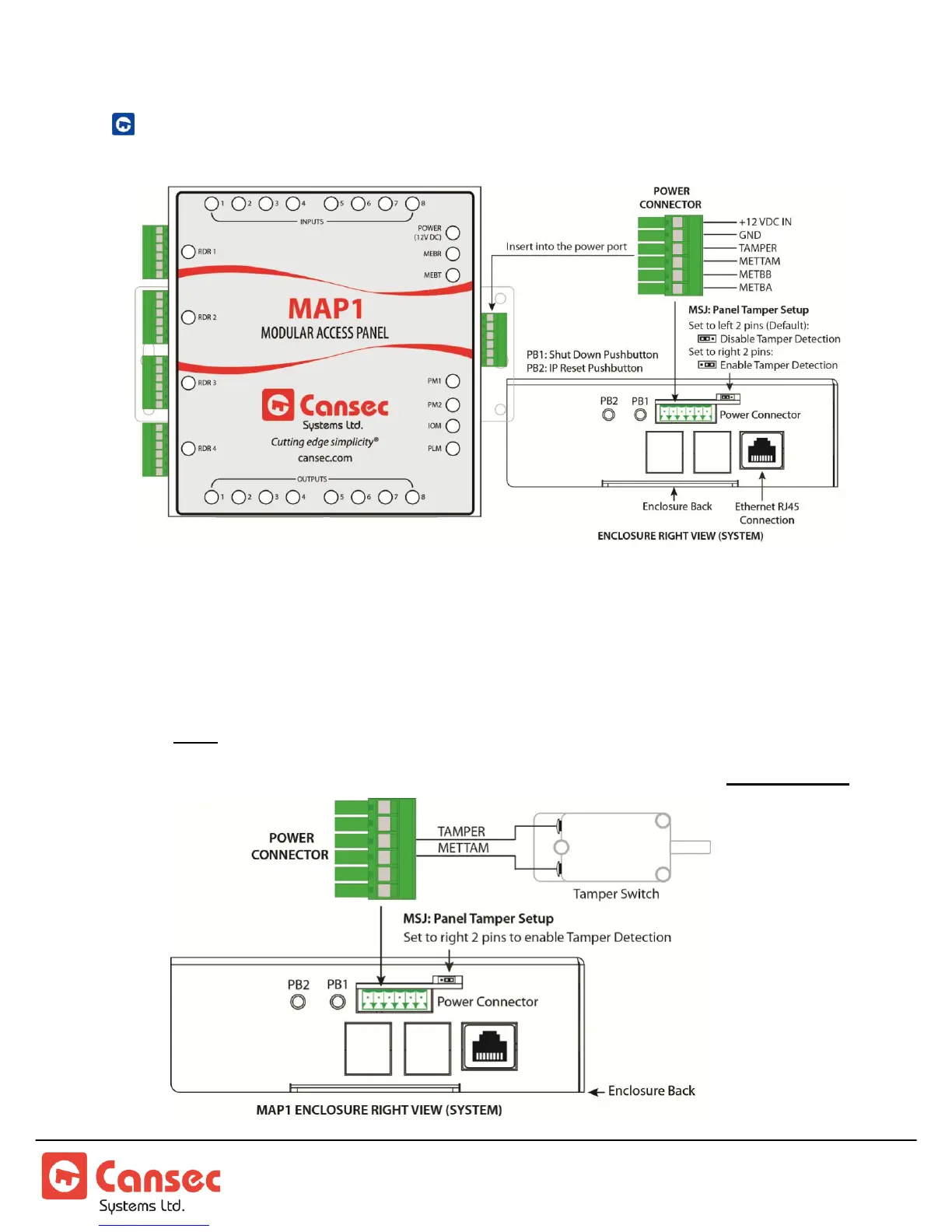

Figure 13
Factory default:
The Tamper jumper
is set to disabled.
To activate the
Panel Tamper move
jumper to the right
2 pins. Connect the
switch between
TAMPER and the
METTAM on the
connector.
